🔧 Rogue - Thermostat Replacement

You’ll be removing the thermostat housing on your Rogue, swapping in a new thermostat (inlet assembly), and refilling/bleeding the coolant. This restores proper engine temperature control and helps prevent overheating or poor heater performance.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always work on a cold engine; hot coolant can cause serious burns.
• ⚠️ Coolant is toxic to people and animals; keep it off skin and away from pets.
• ⚠️ Support the vehicle securely with jack stands if you lift it; never rely only on a jack.
• ⚠️ Keep tools and hands clear of the radiator fan area; the fan can start automatically with the key ON.
• ⚠️ Disconnecting the battery is optional; if you do, you may lose radio presets and clock settings.
• ⚠️ Wipe up any spilled coolant and properly collect it in a drain pan for recycling.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 Ratchet handle 3/8"
• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 6" socket extension 3/8"
• 🧰 Torque wrench 3/8" drive
• 🧰 Phillips screwdriver #2
• 🧰 Flathead screwdriver medium
• 🧰 Pliers regular slip-joint
• 🧰 Hose clamp pliers (specialty)
• 🧰 Plastic trim clip remover (specialty)
• 🧰 Coolant drain pan 8-10 liter
• 🧰 Small funnel
• 🧰 Clean rags
• 🧰 Floor jack (rated 2-ton minimum)
• 🧰 Jack stands (rated 2-ton minimum)
• 🧰 Work light or flashlight
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

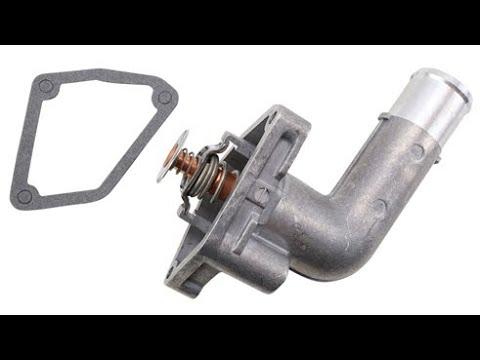

• 🔩 Thermostat housing assembly (engine coolant inlet with thermostat) - Qty: 1
• 🔩 Thermostat housing gasket or O-ring - Qty: 1
• 🔩 Engine coolant (Nissan blue long-life, premixed 50/50) - Qty: ~2 gallons
• 🔩 Hose clamps (radiator hose type, if originals are rusty/damaged) - Qty: 2-4
• 🔩 Throttle body/intake duct clamp screws (if any are stripped) - Qty: as needed
• 🔩 Shop towels or absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• 📝 Park the Rogue on level ground, shift to Park, and set the parking brake.
• 📝 Let the engine cool completely (at least 1–2 hours after driving).
• 📝 Turn ignition OFF and remove the key; keep it away from the car so the cooling fan does not start.
• 📝 If you choose to disconnect the battery, use a 10mm socket to remove the negative (black) terminal first.
• 📝 Place the coolant drain pan under the radiator drain area before opening anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove engine cover and intake duct

• Use your hands to lift the plastic engine cover straight up; it pops off rubber grommets.
• Use the flathead screwdriver to loosen the metal clamps on the air intake duct between the air box and throttle body.
• Use the Phillips screwdriver #2 to remove any screws holding the duct or resonator in place.
• Gently pull the intake duct off and set it aside so you can see the front of the engine more clearly.

Step 2: Raise the vehicle and remove lower splash shield

• Use the floor jack at the front jacking point to lift the front of the Rogue slightly.
• Place jack stands under the front pinch welds and lower the vehicle onto them.
• Use the plastic trim clip remover to pop out the plastic clips from the front lower splash shield.
• Use the 10mm socket to remove any small bolts holding the splash shield, then remove the shield to access the radiator area.

Step 3: Drain coolant from the radiator

• Position the coolant drain pan directly under the radiator drain area (bottom of radiator, passenger side).
• Use the flathead screwdriver to carefully turn the plastic drain plug (drain cock) counterclockwise until coolant starts flowing.
• Remove the radiator cap at the top using your hand to allow coolant to flow more freely.
• Let the coolant drain until it slows to a drip, then gently tighten the drain plug by hand only. Do not overtighten plastic plug.

Step 4: Locate the thermostat housing

• From above, look at the engine side where the lower radiator hose connects; that aluminum or plastic part is the thermostat housing (coolant inlet).
• Use the work light to see the housing and bolts clearly.

Step 5: Remove the lower radiator hose from the thermostat housing

• Place the coolant drain pan under the hose connection at the thermostat housing (some coolant will spill).
• Use hose clamp pliers or slip-joint pliers to squeeze the spring clamp on the lower radiator hose and slide it back along the hose.
• Twist the hose gently to break it loose, then pull it off the housing and direct any coolant into the drain pan.
• If the hose is stuck, use the flathead screwdriver very carefully to lift the edge, but do not cut the hose.

Step 6: Remove the thermostat housing bolts

• Use the 10mm socket and ratchet (with 6" extension if needed) to remove the bolts holding the thermostat housing to the engine.
• Keep track of bolt length and location as you remove them.
• Once the bolts are out, gently pull the housing away from the engine; a little coolant may dribble out.

Step 7: Remove the old thermostat and gasket

• If your replacement includes the full housing with thermostat installed, you will simply remove the old housing as a unit.
• Check the engine side and the old housing for the old gasket or O-ring; remove it completely.
• Use a clean rag to wipe the sealing surface on the engine until it is clean and smooth. Do not scratch aluminum surface.

Step 8: Install the new thermostat housing assembly

• Place the new gasket or O-ring onto the new thermostat housing in the correct groove or position.
• Position the new housing against the engine, lining up the bolt holes.
• Install the bolts by hand first to avoid cross-threading.
• Use the 10mm socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Use the torque wrench 3/8" drive and 10mm socket to tighten the housing bolts to 10 Nm (89 in-lbs).

Step 9: Reattach the lower radiator hose

• Slide the lower radiator hose back onto the new thermostat housing until it seats fully against the stop.
• Use hose clamp pliers or slip-joint pliers to move the spring clamp back over the hose and onto the fitting.
• Make sure the clamp sits centered over the raised bead on the housing outlet.

Step 10: Reinstall splash shield and lower the vehicle

• Lift the front splash shield into place under the bumper and engine area.
• Use the 10mm socket to reinstall any bolts you removed.
• Use the plastic trim clip remover (or your fingers) to push the plastic clips back into their holes.
• Use the floor jack to raise the front slightly, remove the jack stands, and lower the Rogue to the ground.

Step 11: Reinstall intake duct and engine cover

• Slide the intake duct back onto the air box and throttle body.
• Use the flathead screwdriver to tighten the hose clamps securely.
• Reinstall any screws with the Phillips screwdriver #2.
• Press the engine cover back down so it snaps onto its mounting grommets.

Step 12: Refill the cooling system

• Make sure the radiator drain plug is closed (hand-tight) and the lower hose is attached.
• Place the funnel in the radiator filler neck.
• Slowly pour premixed coolant into the radiator until it is full.
• Fill the coolant reservoir (plastic tank) to the “MAX” or “FULL” line.

Step 13: Bleed air from the cooling system

• Leave the radiator cap off for now.
• Start the engine and let it idle; turn the heater to HOT and fan to low.
• Watch the coolant level in the radiator; as the thermostat opens, the level may drop.
• Add more coolant as needed to keep the radiator full.
• When you see a steady flow and no more air bubbles, install the radiator cap by hand and tighten fully.
• Check the reservoir again and top up to the “MAX” line if needed.

Step 14: Final leak check

• Let the engine reach normal operating temperature while you watch the area around the thermostat housing and lower radiator hose.
• Use the work light to check for any drips or wet spots.
• If you disconnected the battery, reconnect the negative terminal with the 10mm socket and tighten snugly.

---

✅ After Repair

• ✅ Take a short test drive (10–15 minutes) while watching the temperature gauge; it should stay in the normal middle range.
• ✅ After the engine cools, recheck the coolant reservoir level and top off to the “MAX” line if needed.
• ✅ Look under the Rogue and around the thermostat housing and lower hose for any new leaks.
• ✅ Over the next few days, glance at the coolant level and temperature gauge to confirm everything stays stable.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$550 (parts + labor)

DIY Cost: $90-$160 (parts only)

You Save: $260-$390 by doing it yourself!

Shop labor rates typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
