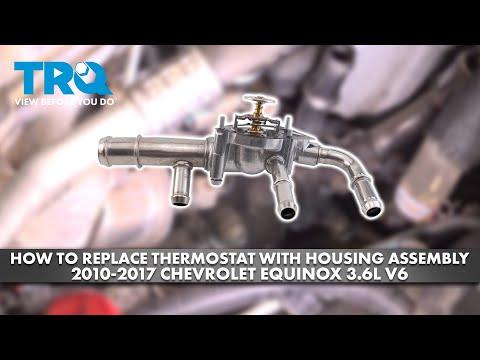

🔧 Thermostat - Replacement

The thermostat on your Equinox controls engine coolant flow so the engine can warm up properly and stay at the right operating temperature. If it sticks open or closed, you can get poor heat, overheating, or a check engine light. This job requires draining some coolant and removing the thermostat housing for access.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Never open the cooling system when the engine is hot. Hot coolant can cause severe burns.
• Use jack stands if you raise the vehicle. Never rely on a jack alone.
• Disconnect the negative battery cable if you will be working near the alternator or engine wiring harness connectors.
• Have rags ready. Coolant will spill when the housing is removed.
• Use only the correct coolant specified for your Equinox and do not mix types.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• 3/8-inch ratchet
• Extensions for ratchet
• Torque wrench
• Drain pan
• Pliers
• Hose clamp pliers (specialty)
• Flat-blade screwdriver
• Gasket scraper
• Funnel
• Jack stands
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly - Qty: 1
• Thermostat housing gasket or seal - Qty: 1
• Engine coolant - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely before opening the cooling system.
• If needed, raise the front of the vehicle slightly for better access and support it with jack stands.
• Place a drain pan under the radiator area before opening any coolant connections.
• If your Equinox has a low coolant level or overheating history, inspect for leaks before reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain enough coolant

• Use a drain pan under the radiator drain area.
• Open the radiator drain or lower hose connection enough to lower the coolant level below the thermostat housing.
• Drain only what you need.

Step 2: Remove intake ducting or covers for access

• Use the appropriate metric socket and screwdriver to remove any air intake duct, engine cover, or access brackets blocking the thermostat housing.
• Set all clamps and fasteners aside in order.

Step 3: Disconnect the thermostat hose

• Use hose clamp pliers to release the spring clamp, or a flat-blade screwdriver if a worm clamp is fitted.
• Twist the hose gently to break it free, then pull it off the housing.
• Catch any remaining coolant in the drain pan.

Step 4: Remove the thermostat housing

• Use the correct metric socket and ratchet to remove the thermostat housing bolts.
• Lift the housing off carefully and note the gasket or seal location.
• Inspect the housing for cracks or warped sealing surfaces.

Step 5: Replace the thermostat

• Remove the old thermostat from the housing if it is serviceable separately, or replace the full assembly if that is how your part is supplied.
• Clean the mating surface with a gasket scraper and wipe it dry.
• Install the new thermostat and new gasket or seal in the correct orientation.
• Do not reuse a flattened seal.

Step 6: Reinstall the housing

• Position the housing on the engine and start all bolts by hand.
• Use a torque wrench to tighten the bolts evenly.
• Torque to 10 Nm (89 in-lbs) unless your replacement part instructions specify a different value.

Step 7: Reconnect the hose and reassemble access parts

• Push the hose fully onto the housing neck.
• Use hose clamp pliers to reinstall the clamp in its original position.
• Reinstall any intake ducts, brackets, or covers using the correct metric socket and screwdriver.

Step 8: Refill and bleed the cooling system

• Use a funnel to refill the system with the correct coolant mixture.
• Start the engine and let it idle with the heater set to full hot.
• Add coolant as the level drops.
• Watch for trapped air bubbles and keep topping off until the level stabilizes.
• Torque to 0 Nm for filler cap; tighten the cap by hand until fully seated.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connection.
• Verify the engine reaches normal operating temperature without overheating.
• Make sure the heater blows hot air once the engine warms up.
• Recheck coolant level after a full heat cycle and top off if needed.
• If a warning light was present before, clear codes and confirm they do not return.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $310-$530 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
