🔧 Malibu - Thermostat Replacement

Your Malibu’s thermostat controls engine temperature by opening and closing coolant flow to the radiator. A stuck thermostat can cause overheating, poor heat, or a check engine light, so replacing it restores proper temperature control.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine—hot coolant can spray and burn you.
• ⚠️ Support the car with jack stands if you raise it; never rely on a floor jack alone.
• ⚠️ Coolant is toxic to people and pets—catch every drop and clean spills immediately.
• ⚠️ Keep hands/tools away from the radiator fans; they can turn on unexpectedly.
• Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• 8mm socket
• 10mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (inch-pound or low-range Nm)
• Flathead screwdriver
• Hose clamp pliers
• Pry tool (plastic trim tool)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• DEX-COOL coolant (orange) 50/50 premix - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (at least 1-2 hours).
• Set the HVAC to full HOT when refilling later (this helps purge air from the heater core).
• Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand to relieve any leftover pressure, then remove it.

Step 2: Raise the front (if needed for access)

• Place wheel chocks behind the rear tires.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 3: Drain enough coolant to get below thermostat level

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Use a flathead screwdriver as needed to open the radiator drain (petcock) and drain coolant.
• Drain until the coolant level is below the upper engine hoses (you don’t need to fully drain the system).

Step 4: Remove the air intake duct (for working room)

• Use an 8mm socket with a 3/8" drive ratchet to loosen the intake duct clamps.
• Remove the duct and set it aside.

Step 5: Locate the thermostat housing

• Follow the upper radiator hose to the engine. The hose connects to the thermostat housing/water inlet at the front side of the engine.
• If a hose clamp blocks access, use hose clamp pliers to slide it back.
• A thermostat “housing” is the metal neck the hose attaches to.

Step 6: Remove the radiator hose from the housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off. Use a pry tool (plastic trim tool) carefully if it’s stuck.
• Catch any coolant that spills with the drain pan and shop towels.

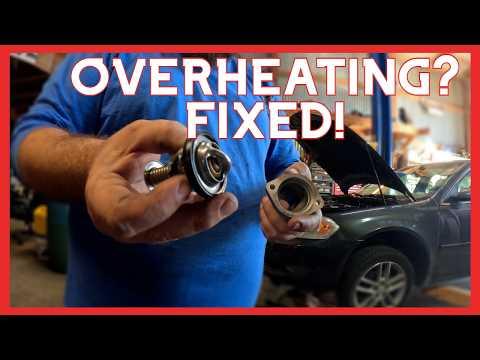

Step 7: Remove the thermostat housing

• Use a 10mm socket with a 3/8" drive ratchet and 3" extension (3/8" drive) to remove the thermostat housing bolts.
• Lift the housing off and remove the thermostat.
• Remove the old seal / O-ring and wipe the sealing surfaces clean with shop towels.
• Don’t gouge the aluminum sealing surface.

Step 8: Install the new thermostat and seal

• Install the new thermostat in the same orientation as the old one.
• Install the new seal / O-ring (do not reuse the old one).
• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Use a torque wrench with a 10mm socket to tighten the housing bolts evenly: Torque to 10 Nm (89 in-lb).

Step 9: Reconnect the hose and reinstall the intake duct

• Push the hose fully onto the housing.
• Reposition the clamp using hose clamp pliers.
• Reinstall the air intake duct and tighten clamps with an 8mm socket.

Step 10: Refill coolant and purge air

• Use a funnel to refill the coolant reservoir with DEX-COOL coolant (orange) 50/50 premix.
• If you drained a lot, top off using distilled water as needed to maintain a proper 50/50 mix.
• Start the engine and let it idle. Set HVAC to HOT and medium fan.
• Watch the coolant level and add as needed. Keep the cap off until the level stabilizes.
• Once the engine reaches operating temp and you feel steady heat inside, install the reservoir cap.
• Shut the engine off and let it cool completely, then recheck and top off to the “FULL COLD” mark.

---

✅ After Repair

• Check for leaks around the thermostat housing and radiator hose connection with the engine running.
• Verify the temperature gauge stays normal and the heater blows hot.
• After your first drive, let it cool and recheck coolant level again (air can burp out).
• Dispose of old coolant properly (auto parts stores often accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $230-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
