🔧 Impala - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct temperature. If it sticks open you may get low heat and a check engine light; if it sticks closed the engine can overheat. This job involves draining some coolant, swapping the thermostat at the engine’s coolant outlet, then refilling and bleeding air.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Depressurize slowly: crack the coolant reservoir cap loose only when cool.
• ⚠️ Support the car safely: use jack stands, not just a jack.
• ⚠️ Keep coolant off belts/alternator and clean spills immediately (pets are attracted to coolant and it’s toxic).
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Funnel
• Shop towels
• 10mm socket
• 1/4" drive ratchet
• 6" extension (1/4" drive)
• Torque wrench (inch-pound or low-range ft-lb)
• Flathead screwdriver
• Slip-joint pliers
• Hose clamp pliers
• Plastic scraper
• 7mm socket

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• DEX-COOL coolant (orange) - Qty: 1-2 gallons
• Distilled water - Qty: 1-2 gallons
• Upper radiator hose clamp - Qty: 1 (optional if clamp is weak/rusted)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (sitting overnight is best).
• Slowly loosen the coolant reservoir cap to ensure there’s no pressure, then reinstall it loosely until you’re ready to drain.
• Raise the front with a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake ducting for access

• Open the hood and locate the air intake duct near the throttle body.
• Use a flathead screwdriver to loosen the hose clamps.
• Remove any duct fasteners using a 10mm socket and 1/4" drive ratchet, then lift the duct out of the way.
• Take a quick photo before removal.

Step 2: Drain coolant to below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Slowly remove the coolant reservoir cap.
• Open the radiator drain (petcock) carefully; use slip-joint pliers only if needed (it’s plastic—don’t crush it).
• Drain about 1–2 gallons (enough that the level is below the upper radiator hose connection), then close the drain.
• Wipe spills with shop towels.

Step 3: Remove the upper radiator hose from the thermostat housing

• Follow the upper radiator hose to where it meets the engine (this is the thermostat housing/coolant outlet).
• Use hose clamp pliers to slide the spring clamp back on the hose.
• Twist the hose to break it free, then pull it off. Keep the drain pan underneath for runoff.

Step 4: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 1/4" drive ratchet, and 6" extension (1/4" drive).
• Lift the housing off carefully.
• Note the thermostat orientation as it comes out. Typically, the thermostat spring faces the engine.

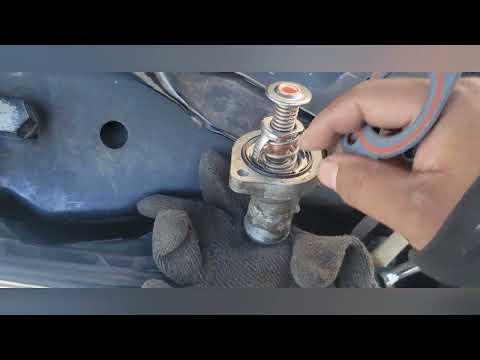

Step 5: Replace the thermostat and seal

• Remove the old thermostat and the old seal/O-ring.
• Clean the mating surfaces using a plastic scraper and shop towels. Don’t gouge the aluminum.
• Install the new seal/O-ring on the new thermostat (or in the groove, depending on design).
• Install the thermostat in the same orientation as removed.

Step 6: Reinstall the thermostat housing

• Set the housing back in place by hand to avoid pinching the seal.
• Start the bolts by hand first, then snug them with a 10mm socket and 1/4" drive ratchet.
• Tighten evenly and finish with a torque wrench: Torque to 10 Nm (7 ft-lbs).

Step 7: Reconnect the upper radiator hose

• Push the hose fully onto the housing.
• Use hose clamp pliers to move the spring clamp back into its original position.

Step 8: Refill and bleed air from the cooling system

• Mix coolant 50/50 using DEX-COOL coolant (orange) and distilled water (unless you purchased pre-mix).
• Refill through the coolant reservoir using a funnel until it reaches the COLD mark.
• If your housing/pipe has an air bleed screw (small screw near the thermostat area), open it with a 7mm socket while filling until coolant flows without bubbles, then close it gently.
• Start the engine and set the heater to MAX heat. Let it idle until the temperature gauge reaches normal and you feel steady heat.
• Shut the engine off, let it cool, then top off the reservoir to the COLD mark.

---

✅ After Repair

• Check carefully for leaks around the thermostat housing and upper hose with the engine running.
• Verify the temperature gauge rises to normal and stays stable on a short test drive.
• After the engine fully cools, recheck coolant level and top off if needed.
• Dispose of old coolant properly (most parts stores accept used coolant).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $215-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
