🔧 Savana - Thermostat Replacement

The thermostat controls coolant flow to help your A/C-heater and engine stay at the right temperature. If it sticks open you may get low heat and a cool-running engine; if it sticks closed you can overheat quickly.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap hot—let the engine cool fully first.
• ⚠️ Coolant is toxic; keep it away from kids/pets and clean spills immediately.
• ⚠️ Support the van with jack stands if you raise it—never rely on a jack alone.
• ⚠️ Keep hands/clothes away from the fan and belt when the engine is running.
• ⚠️ Battery disconnect is not required for this job, but keep the key off while working.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• 10mm socket
• 1/4" ratchet
• 3" extension (1/4" drive)
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers
• Trim clip remover
• Pick tool
• Plastic gasket scraper
• Shop towels
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (OEM temperature spec) - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (upper radiator hose should feel cool).
• Set the HVAC to HOT later during bleeding to help purge air.
• Assumption: Thermostat is in the water pump inlet at the lower radiator hose connection (common on your Savana’s 4.8L).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely lower the coolant level

• Put on safety glasses and nitrile gloves.
• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Slowly loosen the coolant reservoir/radiator cap to relieve any leftover pressure.
• If access is tight, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Drain enough coolant so the level is below the thermostat housing (usually 1–2 gallons). Use shop towels for spills.

Step 2: Remove the intake ducting (if it blocks access)

• Use a trim clip remover to remove any push-pins on the engine cover/ducting (if equipped).
• Use a 10mm socket with a 1/4" ratchet to loosen intake duct clamps as needed.
• Move the duct aside so you can clearly see the lower radiator hose and thermostat housing.

Step 3: Remove the lower radiator hose from the thermostat housing

• Position the drain pan (at least 3-gallon) under the lower hose connection.
• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off. Use a pick tool carefully if it’s stuck (don’t gouge the plastic/metal nipple).
• Wipe the area with shop towels.

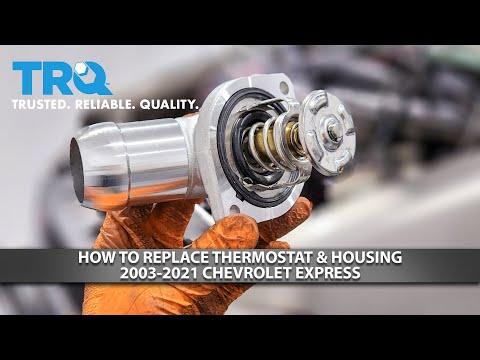

Step 4: Remove the thermostat housing

• Use a 10mm socket, 3" extension (1/4" drive), and 1/4" ratchet to remove the thermostat housing bolts.
• Pull the housing straight off. Expect some coolant to spill—keep the drain pan under it.
• Note the thermostat orientation as it comes out (same way the new one must go in).

Step 5: Clean the sealing surfaces

• Remove the old thermostat and old seal/O-ring.
• Use a plastic gasket scraper and shop towels to clean the mating surfaces until smooth and dry.
• Tip: Plastic scraper avoids gouging aluminum.

Step 6: Install the new thermostat and seal

• Install the new thermostat seal / O-ring onto the new thermostat or into the housing groove (match how the old one sat).
• Place the new engine thermostat into position in the housing/water pump the same orientation as removed.
• Reinstall the thermostat housing by hand-starting the bolts.
• Tighten bolts evenly using a 10mm socket.
• Final-tighten with a torque wrench (inch-pound or low-range Nm): Torque to 10 Nm (89 in-lbs).
• Tip: Hand-start bolts to prevent cross-threading.

Step 7: Reinstall the lower radiator hose

• Push the hose fully onto the thermostat housing nipple.
• Use hose clamp pliers to move the clamp back into its original position.
• Wipe everything clean with shop towels so leaks are easy to spot later.

Step 8: Reinstall intake ducting/engine covers

• Reposition the intake ducting and tighten clamps with a 10mm socket and 1/4" ratchet.
• Reinstall any push-pins using a trim clip remover as needed to align them.

Step 9: Refill and bleed air from the cooling system

• Refill the coolant reservoir with Dex-Cool coolant (50/50 premix) using a funnel until it reaches the proper level.
• Start the engine and let it idle with the reservoir cap off.
• Turn the heater to HOT and fan on medium. (This opens the heater circuit to push air out.)
• Watch the coolant level; add as needed with the funnel.
• When the thermostat opens, the upper hose will get hot and the level may drop—top off again.
• Once bubbles stop and the level stabilizes, reinstall the cap.
• Tip: Use a flashlight to spot small leaks.

---

✅ After Repair

• Let the engine reach normal operating temperature and verify the cabin heater blows hot.
• Check for leaks around the thermostat housing and lower radiator hose with a flashlight.
• Road test 10–15 minutes, then recheck coolant level after it cools completely and top off if needed.
• Properly dispose of old coolant (do not pour on the ground).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.5 hours.

---
