🔧 Thermostat - Replacement

The thermostat on your Silverado controls coolant flow so the engine warms up fast and stays at the right temperature. If it sticks closed, the engine can overheat; if it sticks open, it may run too cool and set a trouble code. This job is fairly straightforward, but you will need to drain some coolant and work in a tight area at the front of the engine.

Difficulty Level: Beginner | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work only when the engine is completely cold. Hot coolant can cause serious burns.
• Keep the radiator cap closed until the engine is cold.
• Do not smoke or work near open flames. Coolant is slippery and flammable around hot parts.
• Use jack stands if you raise the front of the truck. Never rely on a jack alone.
• Battery disconnect is not required for this repair.
• Be careful with the intake ducting and electrical connectors near the throttle body.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 3/8-inch ratchet
• 10mm socket
• 13mm socket
• Extension bar
• Flat-blade screwdriver
• Hose clamp pliers
• Drain pan
• Funnel
• Torque wrench
• Shop towels
• Gloves
• Safety glasses
• Jack stands
• Floor jack (rated 3-ton minimum)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat housing gasket or seal - Qty: 1
• Engine coolant (Dex-Cool compatible 50/50 mix) - Qty: 2-3 gallons

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool completely.
• Place a drain pan under the radiator drain area.
• Keep pets away from spilled coolant. Coolant is toxic.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Use a drain pan under the radiator.
• Open the radiator drain petcock slowly, or loosen the lower hose if needed, and drain enough coolant so the level drops below the thermostat housing.
• Close the drain once coolant flow stops.
• Save clean coolant if it is fresh.

Step 2: Remove the air intake duct

• Use a flat-blade screwdriver to loosen the intake duct clamps.
• Remove the intake tube and set it aside for access to the thermostat area.
• If equipped, unplug any small intake sensor connectors carefully.

Step 3: Disconnect the upper radiator hose from the thermostat housing

• Use hose clamp pliers to slide the spring clamp back.
• Twist the hose gently and pull it off the thermostat housing.
• Catch any remaining coolant with the drain pan.

Step 4: Remove the thermostat housing

• Use a 10mm socket, 3/8-inch ratchet, and extension bar to remove the housing bolts.
• Lift the housing straight off.
• Remove the old gasket or seal.
• Note how the thermostat sits before removing it.

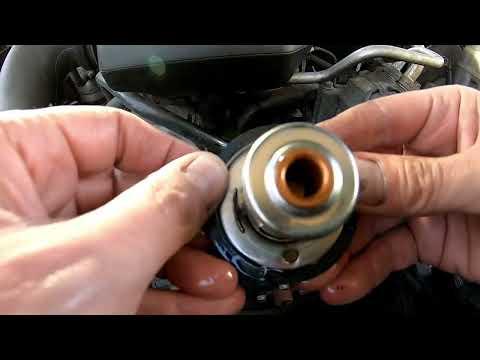

Step 5: Replace the thermostat

• Remove the old thermostat from the engine side of the housing area.
• Install the new thermostat in the same direction as the old one.
• Install the new gasket or seal.
• Make sure the sealing surfaces are clean and dry.

Step 6: Reinstall the thermostat housing

• Position the housing over the thermostat and start both bolts by hand.
• Use the 10mm socket and torque wrench to tighten the housing bolts evenly.
• Torque to 10 Nm (89 in-lbs).
• Do not overtighten. The housing can crack.

Step 7: Reconnect the upper radiator hose and intake duct

• Push the radiator hose fully onto the housing neck.
• Use hose clamp pliers to move the clamp back into place.
• Reinstall the intake duct and tighten the clamps with a flat-blade screwdriver.

Step 8: Refill the cooling system

• Use a funnel to refill the radiator with Dex-Cool compatible 50/50 mix.
• Fill the overflow reservoir to the correct line.
• Leave the radiator cap off for the first warm-up bleed.

Step 9: Bleed the air out

• Start the engine and let it idle.
• Turn the heater to hot with the blower on low.
• Watch the coolant level and add more as the air burps out.
• When the upper hose gets hot, the thermostat has opened.
• Install the radiator cap once the level stabilizes.

Step 10: Check for leaks and verify operation

• Inspect the thermostat housing, hose connection, and drain area for leaks.
• Watch the temperature gauge for normal operation.
• Recheck the coolant level after the engine cools down.

---

✅ After Repair

• Drive the truck until fully warm and confirm the temperature stays steady.
• Recheck coolant level the next day when cold.
• If the check engine light was on before, clear the code after the repair and confirm it does not return.
• If the heater does not blow hot air, there may still be air trapped in the system.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $35-$90 (parts only)

You Save: $215-$360 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
