🔧 Santa Fe - Thermostat Replacement

The thermostat controls when coolant starts flowing to the radiator. If it sticks open, your A/C heat may be weak and the engine may run cool; if it sticks closed, the engine can overheat fast. You’ll drain some coolant, swap the thermostat and seal, then refill and bleed air out of the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Thermostat is in the front coolant inlet housing near the lower radiator hose on your Santa Fe.

---

⚠️ Safety & Precautions

• ⚠️ Work on a fully cold engine to avoid burns from hot coolant.
• ⚠️ Coolant is toxic—use a drain pan and clean spills immediately.
• ⚠️ Support the SUV with jack stands; never rely on a floor jack.
• ⚠️ Keep hands clear of radiator fans; they can turn on unexpectedly.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• Trim clip removal tool
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" socket extension
• Torque wrench (3/8" drive)
• Hose clamp pliers
• Pick tool
• Plastic gasket scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring / gasket - Qty: 1
• Hyundai-compatible long-life coolant (P-OAT) - Qty: 1 (enough to top off or refill)
• Distilled water - Qty: 1 (if using concentrate coolant)
• Lower radiator hose clamp - Qty: 1 (recommended if original is weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (overnight is best).
• Set the HVAC to HOT later during bleeding; this helps move coolant through the heater core.
• Have a plan to store used coolant in sealed containers for proper disposal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield using a trim clip removal tool and a 10mm socket.

Step 2: Drain coolant (enough to get below the thermostat level)

• Place a drain pan (at least 10-quart) under the radiator drain.
• Open the radiator drain valve (petcock) slowly and let coolant drain.
• Use shop towels to catch drips and keep coolant off belts and wiring.

Step 3: Locate the thermostat housing

• From underneath, follow the lower radiator hose to where it meets the engine—this connection is typically the thermostat/coolant inlet housing.
• If access is tight, use a 3" socket extension on your 3/8" ratchet.

Step 4: Remove the lower radiator hose from the housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it loose, then pull it off. Use a pick tool carefully if it’s stuck (don’t gouge the plastic/metal neck).
• Tip: Twist first, then pull.

Step 5: Remove the thermostat housing

• Remove the housing mounting bolts using a 10mm socket (some fasteners may be 12mm socket depending on housing).
• Pull the housing off slowly—more coolant will spill, so keep the drain pan positioned underneath.

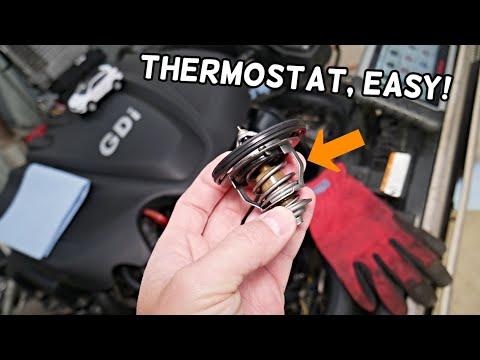

Step 6: Replace the thermostat and seal

• Remove the old thermostat and the old seal / O-ring / gasket.
• Clean the mating surfaces with a plastic gasket scraper and shop towels. Do not scratch aluminum surfaces.
• Install the new thermostat in the same orientation as the old one.
• If the thermostat has a small bleed pin/jiggle valve, position it at the top (12 o’clock) unless your new part’s instructions say otherwise.

Step 7: Reinstall the housing and reconnect the hose

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten the bolts evenly with a 10mm socket, then final tighten with a torque wrench (3/8" drive): Torque to 10 Nm (7 ft-lbs).
• Reinstall the lower radiator hose and position the clamp using hose clamp pliers.

Step 8: Reinstall the splash shield and lower the SUV

• Reinstall the splash shield using a 10mm socket and trim clip removal tool.
• Lower the SUV off the jack stands using the floor jack.

Step 9: Refill and bleed the cooling system

• Refill coolant at the reservoir using a funnel (use correct Hyundai-compatible long-life coolant).
• Start the engine and let it idle with the heater set to HOT (fan on low/medium).
• Watch the coolant level and add as needed. When the thermostat opens, the level may drop—top it off.
• Let the engine reach normal temperature and confirm you get steady cabin heat.
• Shut the engine off, let it cool fully, then recheck and adjust the level.

---

✅ After Repair

• Check for leaks around the thermostat housing and the lower hose connection with the engine running.
• Verify the temperature gauge stays normal and the heater works well.
• After the first drive and a full cool-down, recheck coolant level and top off if needed.
• If the check engine light comes on, scan for codes—overheating/underheating codes can set if air is trapped.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $40-$140 (parts only)

You Save: $310-$610 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
