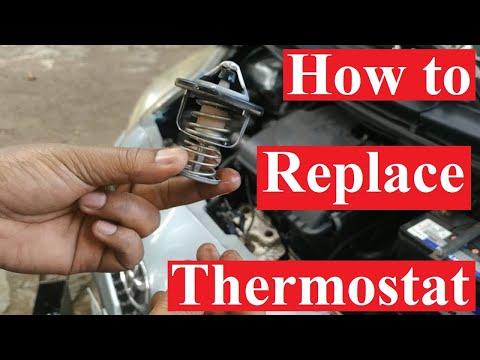

🔧 Thermostat - Replacement

The thermostat controls coolant flow so your Yaris warms up properly and stays at the right temperature. If it sticks open or closed, you can get poor heater output, overheating, or slow warm-up. This job requires draining some coolant and removing the thermostat housing to swap the valve and gasket.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Work only on a completely cold engine. Hot coolant can cause severe burns.
• Keep hands and tools clear of the cooling fan area.
• Use a drain pan and dispose of coolant properly. Antifreeze is toxic.
• Battery disconnect is not required for this repair.
• Make sure the engine is fully bled after service to avoid overheating.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• Ratchet
• 3-inch extension
• Torque wrench
• Flat-blade screwdriver
• Hose clamp pliers
• Drain pan
• Funnel
• Coolant spill towels
• Safety glasses
• Nitrile gloves
• Jack stands
• Floor jack

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat gasket - Qty: 1
• Engine coolant (Toyota Super Long Life Coolant or equivalent premix) - Qty: 1-2 gallons
• Thermostat housing seal or O-ring - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine cool fully before opening anything in the cooling system.
• Raise the front of the car slightly with a floor jack and support it with jack stands if you need better access under the engine.
• Have the new coolant ready before you start, since some coolant will be lost during the repair.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Open the radiator cap only when the engine is cold.
• Place a drain pan under the radiator drain area.
• Use a flat-blade screwdriver or your fingers to open the radiator drain cock and drain enough coolant to get below the thermostat housing.
• Drain only what you need.

Step 2: Remove intake ducting if needed

• If access is tight, use a 10mm socket to remove the air cleaner duct or intake pieces blocking access to the thermostat housing.
• Set the parts aside in order so they go back correctly.

Step 3: Remove the thermostat housing hose

• Use hose clamp pliers to compress the radiator hose clamp.
• Slide the clamp back on the hose.
• Twist the hose gently to break it loose, then pull it off the housing.
• Twist before pulling.

Step 4: Remove the thermostat housing

• Use a 10mm socket, ratchet, and extension to remove the thermostat housing bolts.
• Lift the housing off carefully and note the thermostat orientation before removing it.
• Remove the old thermostat and gasket or O-ring.

Step 5: Install the new thermostat

• Place the new thermostat in the same direction as the old one.
• Install the new gasket or O-ring.
• Make sure the thermostat sits flat and fully seated in the housing.
• Match the old orientation exactly.

Step 6: Reinstall the housing

• Position the housing back on the engine by hand first to avoid cross-threading.
• Use the 10mm socket to snug the bolts evenly.
• Torque to 10 Nm (89 in-lbs).

Step 7: Reconnect the coolant hose

• Push the radiator hose fully onto the housing.
• Slide the clamp back into its original position with hose clamp pliers.
• Check that the hose is fully seated all the way around.

Step 8: Reinstall removed intake parts

• If you removed any intake ducting, reinstall it now using the 10mm socket.
• Make sure all clamps are tight and no hoses are left loose.

Step 9: Refill and bleed the cooling system

• Close the radiator drain cock.
• Use a funnel to fill the radiator with the correct coolant mix.
• Fill the overflow reservoir to the proper mark.
• Start the engine with the heater set to hot and the blower on low.
• Let the engine idle while watching the coolant level and topping off as air purges out.
• When the upper radiator hose gets hot, recheck the level and install the cap.
• Keep hands clear of the fan.

Step 10: Check for leaks and verify operation

• Inspect the thermostat housing, hose connections, and drain cock for leaks.
• Make sure the temperature gauge reaches normal and the heater blows hot air.
• Shut the engine off and recheck coolant level after it cools.

---

✅ After Repair

• Drive the vehicle and watch for normal operating temperature.
• Recheck coolant level the next day when the engine is cold.
• If the check engine light was on before the repair, clear codes with a scan tool if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
