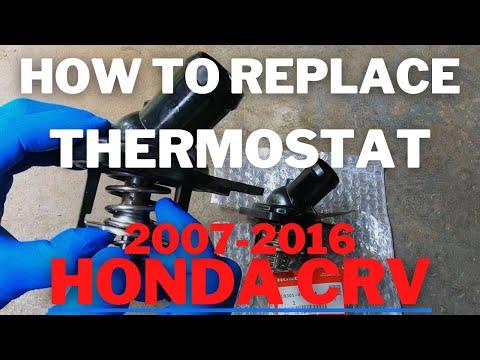

🔧 CR-V - Thermostat Replacement

The thermostat controls coolant flow to keep your CR-V at the correct operating temperature. Replacing it usually fixes overheating, slow warm-up, or temperature gauge swings caused by a stuck thermostat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; wait until fully cool.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a jack.
• ⚠️ Wear gloves and safety glasses to avoid burns and splashes.
• ⚠️ Battery disconnect is not required, but keep tools clear of the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• 10mm socket
• 12mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3" extension
• Torque wrench (5-60 Nm range)
• Hose clamp pliers
• Slip-joint pliers
• Flathead screwdriver
• Trim clip removal tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Engine coolant (Honda Type 2 equivalent, premixed) - Qty: 2 gallons
• Radiator drain plug sealing washer (if equipped) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Let the engine cool completely (best is overnight).
• Set the cabin heat to HOT later during bleeding so coolant can flow through the heater core.
• Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (optional, but helps access)

• Use a floor jack to lift the front at the center jacking point.
• Set the vehicle onto jack stands and keep wheel chocks in place.

Step 2: Drain the coolant

• Place a drain pan (at least 2-gallon) under the radiator drain.
• Slowly loosen the radiator cap (engine cold) by hand, then remove it.
• Open the radiator drain cock (petcock) using a flathead screwdriver if needed and drain the coolant.
• Close the drain cock when finished. Don’t overtighten the plastic drain.

Step 3: Remove the lower engine splash shield (if equipped)

• Use a trim clip removal tool for push-clips.
• Use a 10mm socket with a 1/4" drive ratchet to remove bolts.
• Set the shield and fasteners aside.

Step 4: Locate the thermostat housing

• Find the lower radiator hose and follow it to the engine.
• The thermostat sits behind the housing where that hose meets the engine.
• The lower hose always leads to the thermostat.

Step 5: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently with slip-joint pliers to break it free, then pull it off.
• Use shop rags to catch leftover coolant.
• Don’t crush the hose—twist first, then pull.

Step 6: Remove the thermostat housing

• Use a 12mm socket with a 3/8" drive ratchet and 3" extension to remove the thermostat housing bolts.
• Pull the housing off carefully; more coolant will spill into the drain pan.
• Note the thermostat orientation before removing it.

Step 7: Replace the thermostat and O-ring

• Remove the old thermostat by hand and remove the old O-ring.
• Clean the housing and mating surface using shop rags (no gouging).
• Install the new thermostat with the jiggle valve/bleed pin at the top (12 o’clock position).
• Install the new thermostat O-ring / gasket in the correct groove.
• The O-ring should sit flat, not twisted.

Step 8: Reinstall the thermostat housing

• Set the housing in place by hand to avoid cross-threading.
• Thread bolts in by hand first, then snug using a 12mm socket and 3/8" drive ratchet.
• Tighten evenly using a torque wrench: Torque to 12 Nm (9 ft-lbs).

Step 9: Reinstall the lower radiator hose

• Push the hose fully onto the housing by hand.
• Use hose clamp pliers to reposition the clamp back to its original spot.
• Wipe everything dry using shop rags so leaks are easy to spot later.

Step 10: Reinstall splash shield and lower the vehicle

• Reinstall the shield using a 10mm socket and trim clip removal tool.
• Lower the vehicle using the floor jack and remove jack stands.

Step 11: Refill coolant

• Insert a funnel into the radiator fill neck.
• Fill with Honda Type 2 equivalent, premixed until the radiator is full.
• Fill the coolant reservoir to the MAX line.

Step 12: Bleed air from the cooling system

• Start the engine and let it idle with the radiator cap off.
• Set the cabin controls to HOT and fan on low.
• Watch the coolant level and add as needed using the funnel.
• When the engine warms up, the thermostat will open and the level may drop; top off again.
• Let the radiator fan cycle on and off at least once, then install the radiator cap by hand.
• Shut the engine off and let it cool fully, then recheck the reservoir and top to MAX.
• If heat isn’t hot, there’s still air.

---

✅ After Repair

• Test drive 10–15 minutes and watch the temperature gauge for normal operation.
• Park, let it cool, then check the thermostat housing and lower hose area for leaks.
• Recheck coolant level in the reservoir the next morning and top off to MAX if needed.
• If it still overheats or you get no cabin heat, the system likely needs more bleeding or there’s another issue (fans, radiator, water pump).

---
