🔧 Tahoe - Thermostat Replacement

The thermostat controls coolant flow to help your engine warm up quickly and maintain the correct operating temperature. On your Tahoe, it sits in the thermostat housing (water outlet) at the front of the engine where the upper radiator hose connects.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator/surge tank when hot—hot coolant can cause severe burns.
• ⚠️ Support the vehicle securely if you lift it; never rely on a jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; it’s slippery and can damage components.
• ⚠️ Dex-Cool coolant is toxic—clean spills immediately and dispose of old coolant properly.
• ⚠️ Battery disconnect is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 2-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 8mm socket
• Flat-blade screwdriver
• Hose clamp pliers
• Plastic trim tool
• Gasket scraper (plastic)
• Torque wrench (in-lb or low-range ft-lb)
• Funnel
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (with seal/gasket) - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 1-2 gallons
• Distilled water - Qty: 1 gallon
• Upper radiator hose clamp - Qty: 1 (optional if current clamp is weak)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (best is sitting overnight).
• If you lift the front, use a floor jack and place jack stands under the frame.
• Set the HVAC to Heat later during the refill step so coolant can circulate through the heater core.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (cold engine)

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant cap on the surge tank using your hand. If you hear pressure, tighten it back and wait longer.

Step 2: Drain some coolant

• Position a drain pan under the radiator drain area.
• Use a flat-blade screwdriver (or by hand if equipped) to open the radiator drain and drain about 1–2 gallons—just enough so the level drops below the thermostat housing.
• Close the drain snugly when done. Draining less = less mess.

Step 3: Remove the air intake duct for access

• Use an 8mm socket to loosen the worm-gear clamps on the intake duct.
• Unclip any attached tube/retainer carefully with a plastic trim tool.
• Lift the duct out of the way so you can clearly reach the upper radiator hose and thermostat housing.

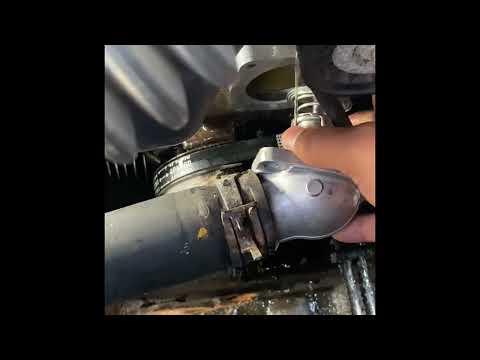

Step 4: Remove the upper radiator hose from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it loose, then pull it off the thermostat housing.
• Use shop rags to catch the coolant that will spill.

Step 5: Remove the thermostat housing

• Use a 10mm socket with a 3/8" drive ratchet and extension to remove the thermostat housing bolts.
• Pull the housing straight off. Note how the thermostat is oriented before you remove it.

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old seal/gasket by hand.
• Clean both mating surfaces using a gasket scraper (plastic) and shop rags.
• Install the new thermostat in the same orientation as the old one.
• Install the new seal/gasket that comes with the thermostat. Don’t reuse the old seal.

Step 7: Reinstall the thermostat housing

• Position the housing straight onto the engine.
• Thread the bolts in by hand first to avoid cross-threading.
• Use a torque wrench and 10mm socket to tighten evenly: Torque to 10 Nm (89 in-lb).

Step 8: Reconnect the upper radiator hose

• Push the hose fully onto the thermostat housing until it bottoms out.
• Use hose clamp pliers to move the clamp back into its original position.

Step 9: Reinstall the air intake duct

• Reposition the intake duct and any attached lines/retainers by hand.
• Use an 8mm socket to tighten the clamps snugly (do not over-tighten).

Step 10: Refill and bleed air from the cooling system

• Use a funnel to refill the surge tank with Dex-Cool 50/50 premix (top off with distilled water only if you’re mixing concentrate).
• Start the engine and let it idle with the cap off.
• Turn the HVAC to full hot and medium fan to help purge air.
• As the engine warms up, keep the level near the FULL mark by adding coolant with the funnel.
• Once you feel steady heat from the vents and the upper radiator hose gets hot, install the cap.

---

✅ After Repair

• Check carefully for leaks around the thermostat housing and upper hose while it’s running.
• Test drive 10–15 minutes and watch the temperature gauge for normal operation.
• After the engine fully cools, recheck the surge tank level and top off if needed.
• If the temperature runs hot or heat is weak, you likely still have air trapped—repeat the bleed step.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
