🔧 Thermostat - Replacement

The thermostat on your Sierra controls coolant flow so the engine warms up correctly and stays at the right operating temperature. Replacing it usually fixes overheating, slow warm-up, and temperature swings when the thermostat sticks open or closed.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Work only on a completely cold engine. Hot coolant can cause severe burns.
• Use jack stands if you raise the truck. Never rely on a jack alone.
• Keep coolant away from children and pets. It is highly toxic.
• If your Sierra has any electrical connectors near the thermostat housing, unplug the battery negative cable before starting.
• Have rags and a drain pan ready. Some coolant will spill when the housing is opened.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 1/4-inch drive ratchet
• 10mm socket
• 13mm socket
• Extensions
• Torque wrench
• Flat-blade screwdriver
• Pliers
• Drain pan
• Funnel
• Shop rags
• Safety glasses
• Mechanic gloves
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat - Qty: 1
• Thermostat housing gasket - Qty: 1
• Engine coolant - Qty: 1 to 2 gallons
• Distilled water - Qty: 1 to 2 gallons

---

📋 Before You Begin

• Park on level ground and let the engine cool completely.
• Set the parking brake and open the hood.
• If needed, disconnect the negative battery cable with a 10mm socket.
• Place a drain pan under the radiator area before opening any coolant hose.
• Tip: Take a picture before removing hoses.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain some coolant

• Use a drain pan and open the radiator petcock if equipped, or loosen the lower hose clamp with pliers and drain enough coolant so the level is below the thermostat housing.
• Do not drain the entire system unless needed.
• Keep the coolant clean if it is reusable.

Step 2: Remove intake ducting if needed

• If the air intake tube blocks access, loosen the clamps with a flat-blade screwdriver or 8mm socket, then remove the duct.
• This gives you room to reach the thermostat housing.

Step 3: Remove the upper radiator hose

• Use pliers to release the hose clamp, then twist and pull the hose off the thermostat housing.
• Have rags ready for leftover coolant.

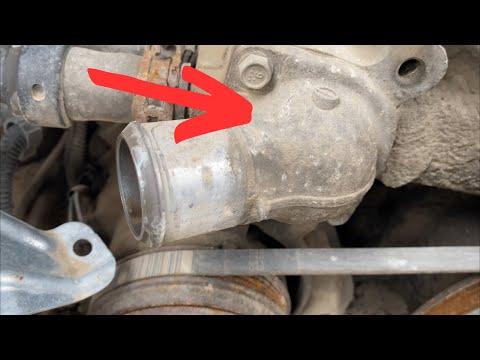

Step 4: Remove the thermostat housing

• Use a 10mm socket and ratchet with an extension to remove the thermostat housing bolts.
• Lift the housing straight off.
• Note the thermostat orientation before removing it.

Step 5: Remove the old thermostat

• Pull the thermostat out of the housing or engine opening, depending on how it is seated.
• Remove the old gasket and clean both sealing surfaces with a clean rag.
• Do not scratch the aluminum sealing surface.

Step 6: Install the new thermostat

• Install the new thermostat in the same direction as the old one.
• Install the new thermostat housing gasket.
• Position the housing squarely over the opening.

Step 7: Reinstall and torque the housing

• Use a 10mm socket to start the housing bolts by hand.
• Torque the bolts evenly to 11 Nm (97 in-lbs).
• Do not overtighten. The housing can crack.

Step 8: Reconnect the hose and refill coolant

• Reinstall the upper radiator hose and secure the clamp with pliers.
• Refill the cooling system with the correct coolant mix through a funnel.
• If you disconnected the battery, reconnect the negative cable with a 10mm socket.

Step 9: Bleed air from the cooling system

• Start the engine and let it idle with the heater set to HOT.
• Watch the coolant level and add more as air escapes.
• Let the engine reach operating temperature and check for a steady upper radiator hose temperature rise.
• Top off the coolant when the engine cools again.

---

✅ After Repair

• Check for leaks at the housing and hose connections.
• Verify the temperature gauge reaches normal and stays steady.
• Recheck coolant level after one full heat cycle and top off if needed.
• Inspect for any trouble codes if the engine previously overheated.

---

💰 DIY vs Shop Cost

Shop Cost: $220-$420 (parts + labor)

DIY Cost: $35-$85 (parts only)

You Save: $185-$335 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
