🔧 Tacoma - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks closed, the engine can overheat; if it sticks open, the engine may run cold and the heater may be weak.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Wear safety glasses and gloves; coolant is toxic and slippery.
• ⚠️ Keep coolant away from kids/pets and clean spills immediately.
• ⚠️ Do not open the radiator cap when hot or pressurized.
• ⚠️ Support the truck safely if you raise it; never rely on a jack alone.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• 10mm socket
• 3/8" drive ratchet
• 3/8" drive extension (3"-6")
• Torque wrench (in-lb or low-range Nm)
• Hose clamp pliers
• Flathead screwdriver
• Pick tool (small)
• Plastic scraper
• Shop towels
• Funnel
• Spill-free coolant funnel kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket / seal - Qty: 1
• Toyota Super Long Life Coolant (pink) pre-mixed 50/50 - Qty: 2 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (best is overnight).
• Set the heater control to HOT (this helps coolant move through the heater circuit during bleeding).
• A torque wrench tightens bolts accurately.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (optional, for easier draining)

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 2: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator cap by hand only if the engine is fully cool.

Step 3: Drain enough coolant to get below the thermostat

• Position a drain pan (at least 2-gallon) under the radiator drain.
• Open the radiator drain using a flathead screwdriver if needed, and drain until flow slows.
• Close the drain snugly (do not over-tighten the plastic drain).

Step 4: Make access at the front of the engine

• Remove any air intake ducting in the way using a flathead screwdriver (loosen the hose clamps).
• Use shop towels to protect against spills as you work.

Step 5: Remove the lower radiator hose from the thermostat housing

• Locate the thermostat housing where the lower radiator hose meets the front of the engine.
• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose to break it loose, then pull it off. Use a pick tool (small) carefully if it’s stuck. Catch remaining coolant with the drain pan.

Step 6: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket, 3/8" drive ratchet, and 3/8" drive extension (3"-6").
• Separate the housing and note how the thermostat sits before removing it.

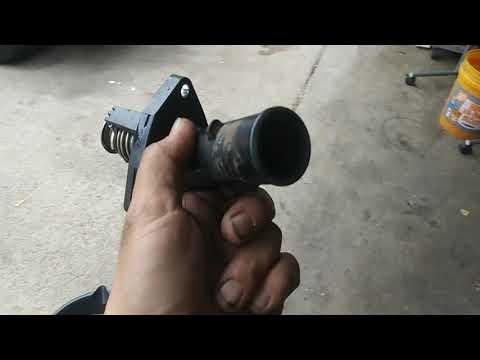

Step 7: Replace the thermostat and seal

• Remove the old thermostat and old gasket/seal by hand. Use shop towels to wipe up coolant.
• Clean the mating surfaces with a plastic scraper and finish with shop towels. Do not gouge the aluminum.
• Install the new gasket/seal onto the new thermostat (match the original orientation).
• Install the new thermostat into the engine the same way the old one came out.
• If it doesn’t sit flat, re-check orientation.

Step 8: Reinstall the thermostat housing

• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final-tighten using a torque wrench (in-lb or low-range Nm): Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect the lower radiator hose

• Slide the hose fully onto the housing nipple.
• Position the clamp correctly and secure it using hose clamp pliers. Replace the clamp if it feels weak or distorted.

Step 10: Refill coolant

• Install a spill-free coolant funnel kit (specialty) on the radiator neck.
• Refill with Toyota Super Long Life Coolant (pink) pre-mixed 50/50 using a funnel until the radiator stays full.

Step 11: Bleed air from the cooling system

• Start the engine and let it idle with the funnel installed. Keep the heater set to HOT.
• Watch for air bubbles; add coolant as the level drops.
• When the engine warms up, verify the upper radiator hose gets hot (thermostat opening).
• Once bubbles slow way down and the level stabilizes, shut the engine off and let it cool.
• Remove the funnel, top off the radiator, and reinstall the radiator cap by hand.

Step 12: Fill the overflow reservoir

• Fill the coolant reservoir to the FULL line using a funnel.
• Wipe any spills with shop towels.

---

✅ After Repair

• With the engine running, check for leaks around the thermostat housing and lower hose.
• Test drive 10–15 minutes, then re-check the reservoir level after a full cool-down and top off if needed.
• Confirm the temperature gauge stays normal and the heater blows hot.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$550 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $180-$510 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
