🔧 Grand Cherokee - Thermostat Replacement

The thermostat controls engine temperature by opening and closing to let coolant flow through the radiator. If it sticks open you’ll run cool (poor heat, worse fuel economy), and if it sticks closed you’ll overheat (engine damage risk).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap hot; wait until fully cool.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Support the SUV with jack stands if you go underneath; never rely on a jack.
• ⚠️ Avoid getting coolant into the drive belt or alternator area; wipe and rinse with water if spilled.
• 🔌 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8")
• Socket set (metric)
• 10mm socket
• 13mm socket
• Extension set (3/8")
• Torque wrench (in-lb or Nm capable)
• Hose clamp pliers
• Trim clip tool
• Pick tool
• Plastic scraper
• Shop towels
• Funnel

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (with seal/O-ring) - Qty: 1
• Thermostat housing gasket/seal - Qty: 1
• Engine coolant (OAT-compatible, 50/50 premix) - Qty: 2-3 gallons
• Upper radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely (overnight is best).
• Set the HVAC to Heat later during bleeding so coolant flows through the heater core (the small radiator that makes cabin heat).
• Assumption: This covers the 5.7L thermostat at the front engine housing (upper radiator hose connection).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any leftover pressure (cold engine only)

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant reservoir cap by hand to make sure there’s no pressure, then remove it.

Step 2: Drain enough coolant to get below the thermostat level

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• If needed for access, raise the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Open the radiator drain valve (often called a petcock, which is a small twist drain) and drain coolant until the level is below the upper radiator hose area.
• Close the petcock by hand when done (snug only; do not over-tighten).

Step 3: Remove covers/ducting for access

• Remove the engine cover by pulling upward firmly by hand.
• If the air intake snorkel/duct blocks access, remove any clips with a trim clip tool, then loosen clamps using a 10mm socket and move the duct aside.

Step 4: Disconnect the upper radiator hose from the thermostat housing

• Position the drain pan under the thermostat housing area (some coolant will spill).
• Squeeze and slide the spring clamp back using hose clamp pliers.
• Twist the hose to break it loose, then pull it off the thermostat housing.
• If it’s stuck, gently work the edge with a pick tool (don’t gouge the plastic or sealing surface).

Step 5: Remove the thermostat housing

• Remove the thermostat housing bolts using a ratchet (3/8"), extension set (3/8"), and typically a 10mm socket.
• Lift the housing off carefully and note how the thermostat sits (orientation matters).

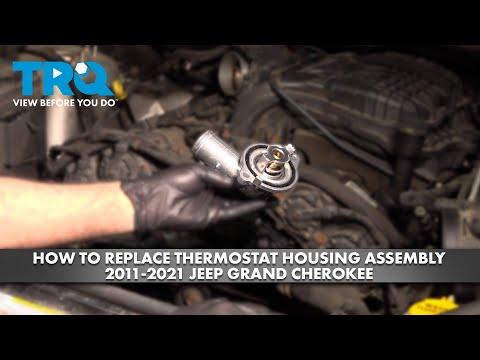

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old seal/O-ring by hand.
• Clean the mating surfaces using a plastic scraper and shop towels. Do not use metal scrapers.
• Install the new thermostat and new seal/O-ring in the same orientation as the old one.
• Tip: Lightly wet O-ring with coolant.

Step 7: Reinstall thermostat housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a ratchet (3/8").
• Final tighten using a torque wrench (in-lb or Nm capable): Torque to 12 Nm (105 in-lb).

Step 8: Reconnect the upper radiator hose

• Push the hose fully onto the thermostat housing.
• Move the clamp back into its original position using hose clamp pliers.
• If the clamp is weak/rusty, replace it with the new clamp.

Step 9: Reinstall any intake ducting and engine cover

• Reinstall the air ducting and tighten clamps using a 10mm socket.
• Reinstall clips with a trim clip tool.
• Press the engine cover back on by hand until it snaps into place.

Step 10: Refill coolant and bleed air

• Insert a funnel and refill the reservoir with engine coolant (OAT-compatible, 50/50 premix) to the proper level.
• Start the engine and let it idle.
• Set the HVAC to Heat and the fan to medium.
• Watch the temperature gauge; as the thermostat opens, the coolant level may drop—top off as needed.
• When the engine reaches normal operating temp and you have steady cabin heat, shut the engine off and let it cool.
• Recheck coolant level and top off to the “FULL” mark when cool.

---

✅ After Repair

• Run the engine to operating temperature and inspect for leaks around the thermostat housing and upper hose connection.
• Verify the cabin heater works and the temperature gauge stays normal.
• After your first drive, let it cool and recheck coolant level again.
• Dispose of old coolant properly (most parts stores accept used coolant).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
