🔧 Frontier - Thermostat Replacement

The thermostat controls coolant flow to keep your Frontier at the right operating temperature. If it sticks open you can get low heat and poor warm-up; if it sticks closed you can overheat, so replacing it is important.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the truck with jack stands if you raise it; never rely on a floor jack alone.
• ⚠️ Clean spills immediately; coolant is toxic to pets and people.
• ⚠️ Let the engine cool fully before draining coolant.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3 gallons)
• Funnel
• Shop towels
• 10mm socket
• 10mm wrench
• 3/8" drive ratchet
• 3/8" drive extension (6")
• Torque wrench (in-lb)
• Hose clamp pliers
• Slip-joint pliers
• Flat-blade screwdriver
• Plastic gasket scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Nissan Long Life Antifreeze/Coolant (Blue) 50/50 premix - Qty: 2-3 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let your Frontier cool completely (ideally overnight).
• Set the HVAC to HOT later during bleeding so coolant flows through the heater core.
• If you raise the front end for access, lift with a floor jack and place the frame securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator cap (engine cold only). If you hear pressure, retighten and wait longer.

Step 2: Drain coolant

• Place a drain pan (at least 3 gallons) under the radiator drain cock.
• Open the drain cock by hand; use a flat-blade screwdriver only if needed.
• Drain until the radiator is mostly empty, then close the drain cock snugly (do not overtighten).

Step 3: Make room to access the thermostat housing

• Remove the intake duct/clamps as needed using a flat-blade screwdriver and/or 10mm socket.
• Wipe up any dirt around the thermostat housing area using shop towels so debris doesn’t fall inside.

Step 4: Remove the lower radiator hose from the thermostat housing

• Position the drain pan under the thermostat area to catch remaining coolant.
• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off. Use slip-joint pliers carefully if it’s stuck (don’t crush the hose).

Step 5: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket, 3/8" drive ratchet, and 3/8" drive extension (6").
• Pull the housing straight off and note exactly how the thermostat sits before removing it.

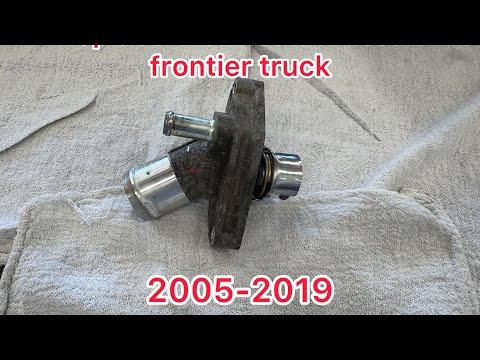

Step 6: Replace the thermostat and gasket

• Remove the old thermostat and gasket/O-ring by hand.
• Clean the mating surfaces using a plastic gasket scraper and shop towels. Do not gouge the aluminum surface.
• Install the new thermostat in the same orientation as the old one, then install the new gasket/O-ring.

Step 7: Reinstall the thermostat housing

• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten the bolts evenly using a 10mm socket and 3/8" drive ratchet.
• A torque wrench is a tool that lets you tighten bolts to an exact spec.
• Finish tightening with a torque wrench (in-lb): Torque to 12 N·m (106 in-lb)

Step 8: Reconnect the lower radiator hose

• Push the hose fully onto the thermostat housing.
• Position the clamp in the original spot using hose clamp pliers.
• Clamp behind the bead on the neck.

Step 9: Reinstall the intake duct

• Reinstall the ducting and tighten clamps using a flat-blade screwdriver and/or 10mm socket.

Step 10: Refill and bleed the cooling system

• Insert a funnel into the radiator fill neck.
• Slowly fill with Nissan Long Life Antifreeze/Coolant (Blue) 50/50 premix until full.
• Fill the overflow reservoir to the MAX line.
• Start the engine and set the heater to full hot; let it idle.
• As it warms up, top off the radiator as the level drops (use the funnel).
• Once the thermostat opens (upper hose gets hot), watch for air bubbles to stop, then install the radiator cap.

---

✅ After Repair

• Let the engine reach normal temperature and confirm the heater blows hot.
• Check for leaks around the thermostat housing and lower radiator hose.
• After a full cool-down, recheck the radiator level and overflow reservoir; top off as needed using a funnel.
• Over the next 1-2 drives, keep an eye on the temperature gauge and inspect for any coolant smell or drips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
