🔧 Thermostat - Replacement

The thermostat on your Corolla controls engine temperature by regulating coolant flow to the radiator. Replacing it fixes slow warm-up, overheating, or temperature fluctuations when the thermostat is sticking open or closed.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Let the engine cool completely before opening the cooling system. Hot coolant can cause serious burns.
• Use the radiator cap only when the engine is cold.
• Coolant is toxic. Keep it away from pets, children, and skin contact.
• Battery disconnect is not required for this repair.
• Use jack stands if you raise the front of the car. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Metric socket set
• 10mm socket
• 12mm socket
• Ratchet
• Short extension
• Torque wrench
• Flat blade screwdriver
• Pliers
• Drain pan
• Funnel
• Coolant spill-free funnel (specialty)
• Gasket scraper
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat assembly - Qty: 1
• Thermostat gasket / O-ring - Qty: 1
• Engine coolant, Toyota Super Long Life Coolant equivalent - Qty: 1-2 gallons

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine go completely cold.
• Remove the radiator cap only after the engine is cold.
• Place a drain pan under the radiator drain area before opening the cooling system.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Drain the coolant

• Use a drain pan under the radiator.
• Open the radiator drain cock or loosen the lower hose clamp and drain enough coolant to drop the level below the thermostat housing.
• Keep coolant clean if reusing.

Step 2: Remove intake ducting if needed

• Use a 10mm socket and flat blade screwdriver to remove the air intake duct or air cleaner tube if it blocks access to the thermostat housing.
• Move the duct aside for clear access.

Step 3: Access the thermostat housing

• Locate the thermostat housing on the engine coolant outlet.
• Use a 12mm socket and ratchet to remove the housing bolts.
• Lift the housing straight off carefully.

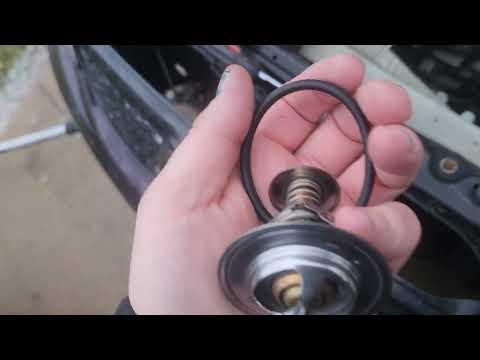

Step 4: Remove the old thermostat

• Note the thermostat orientation before removal.
• Remove the thermostat and old gasket or O-ring.
• Use a gasket scraper if needed to clean the sealing surfaces.
• Do not scratch the aluminum surface.

Step 5: Install the new thermostat

• Install the new thermostat in the same orientation as the old one.
• Install the new gasket or O-ring.
• Set the housing back in place by hand first.
• Use a 12mm socket and torque wrench to tighten the housing bolts to 10 Nm (89 in-lbs).

Step 6: Reinstall removed intake parts

• Reinstall the intake duct or air cleaner tube.
• Use the 10mm socket and screwdriver to secure all clamps and bolts.

Step 7: Refill the cooling system

• Use a funnel and coolant spill-free funnel to refill with the correct coolant.
• Fill the radiator and reservoir to the proper level.
• Open the heater to hot.
• Start the engine and let it idle.
• Top off coolant as air bleeds out.

Step 8: Check for leaks and bleed air

• Inspect the thermostat housing and hose connections for leaks.
• Watch the temperature gauge and verify normal warm-up.
• Shut the engine off, let it cool, and recheck coolant level.

---

✅ After Repair

• Test drive the car and confirm the temperature stays normal.
• Recheck the coolant level after the engine cools again.
• If the temperature warning light returns, recheck for trapped air or leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$330 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
