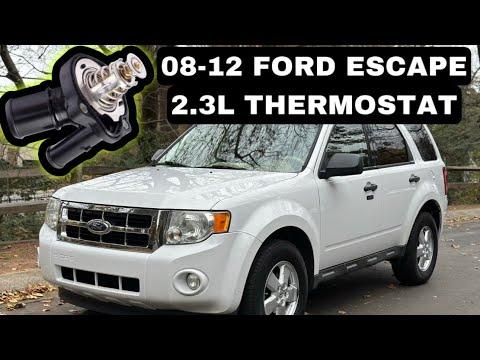

🔧 Escape - Thermostat Replacement

Your Escape’s thermostat controls coolant flow to keep the engine at the correct temperature. Replacing it usually involves draining some coolant, removing the thermostat housing, installing a new thermostat/seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir cap on a hot engine; scalding coolant can spray out.
• ⚠️ Support the vehicle with jack stands if you raise it—never rely on a jack alone.
• ⚠️ Keep coolant off paint and away from pets; it is toxic and attractive to animals.
• ⚠️ Let the engine cool fully before starting (ideally overnight).
• Disconnecting the battery is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Spill-free coolant funnel kit (specialty)
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 1/4" drive extension (3"-6")
• Flathead screwdriver
• Hose clamp pliers (specialty)
• Trim clip removal tool
• Torque wrench (in-lb)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (Motorcraft Premium Gold / Yellow HOAT equivalent) - Qty: 2 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Make sure the engine is fully cool.
• Set the HVAC temperature to full HOT (this helps coolant circulate through the heater core during bleeding).
• If you raise the front end for access, use a floor jack and place it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any residual pressure

• Slowly loosen the coolant reservoir cap by hand. If you hear pressure, tighten it back and wait longer for the engine to cool.
• Once safe, remove the cap and set it aside on a clean rag.

Step 2: Drain coolant to below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• Use a flathead screwdriver (or by hand, depending on style) to open the radiator drain valve and drain coolant.
• Drain until the level is below the upper radiator hose/thermostat housing area, then close the drain valve.
• Tip: Save clean coolant only.

Step 3: Remove the air intake ducting (for access)

• Use an 8mm socket and 1/4" drive ratchet to loosen the hose clamps on the intake duct.
• Disconnect any breather tube(s) using hose clamp pliers (specialty) (these pinch spring clamps so you can slide them back).
• Lift the intake duct out and set it aside.

Step 4: Locate the thermostat housing

• The thermostat sits inside a small housing where a radiator hose meets the engine (the “water outlet”).
• Place shop rags under the housing area to catch any remaining coolant.

Step 5: Disconnect the radiator hose from the thermostat housing

• Use hose clamp pliers (specialty) to compress the hose clamp and slide it back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the housing.
• If it’s stuck, carefully work it loose with a flathead screwdriver—don’t gouge the hose.

Step 6: Remove the thermostat housing

• Use a 10mm socket, 1/4" drive ratchet, and 1/4" drive extension (3"-6") to remove the housing bolts.
• Pull the housing straight off and let remaining coolant drain into the pan.

Step 7: Replace the thermostat and seal

• Remove the old thermostat and thermostat seal / O-ring.
• Clean the mating surfaces using shop rags. Do not scrape aggressively or leave debris behind.
• Install the new thermostat in the same orientation as the old one.
• Install the new seal/O-ring (do not reuse the old seal).

Step 8: Reinstall the thermostat housing

• Position the housing squarely and start bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket and 1/4" drive ratchet.
• Final tighten using a torque wrench (in-lb): Torque to 89 in-lb (10 Nm).

Step 9: Reconnect hoses and reinstall the intake duct

• Push the hose fully onto the housing, then use hose clamp pliers (specialty) to reposition the clamp back to its original spot.
• Reinstall the intake duct and tighten clamps with an 8mm socket and 1/4" drive ratchet.
• Reattach any breather tube(s) with hose clamp pliers (specialty).

Step 10: Refill and bleed the cooling system

• Install a spill-free coolant funnel kit (specialty) on the coolant reservoir (this is a sealed funnel that helps purge air while the engine runs).
• Refill with the correct coolant mix using a funnel: 50/50 coolant and distilled water (or use pre-mixed coolant).
• Start the engine and let it idle. Watch the funnel level and add coolant as needed.
• As the engine warms up, you should see flow/level changes when the thermostat opens.
• Once the heater blows hot and bubbles slow down, shut the engine off and let it cool fully.
• Top off the reservoir to the proper line and reinstall the cap.

---

✅ After Repair

• Start the engine and confirm normal operating temperature on the gauge.
• Check for leaks around the thermostat housing and hose connection with a flashlight and shop rags.
• After a full heat-soak/cool-down cycle, recheck coolant level and top off if needed.
• If the temperature gauge spikes, the heater stays cold, or you hear gurgling, shut down and re-bleed (air is trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $210-$380 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
