🔧 4Runner - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the correct temperature. If it sticks open you may get low heat and poor MPG; if it sticks closed the engine can overheat. On your 4Runner, the thermostat sits in the water inlet where the lower radiator hose meets the engine.

Difficulty Level: Intermediate | Estimated Time: 2.0-3.5 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a jack.
• ⚠️ Coolant is toxic—keep it away from kids/pets and clean spills fast.
• ⚠️ Use only Toyota pink coolant (SLLC); mixing types can cause problems.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Drain pan (at least 3-gallon)
• Spill-free funnel kit
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3/8" extension (6")
• Torque wrench (inch-pound)
• Hose clamp pliers
• Pick tool
• Plastic trim clip tool
• Razor scraper (plastic)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed) - Qty: 3 gallons

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• ❄️ Let the engine cool completely (ideally overnight).
• 🧼 Lay cardboard under the front of the 4Runner to catch drips.
• 🔥 Set the HVAC temperature to HOT before you start (helps with bleeding later).
• 🧰 A “spill-free funnel” is a funnel that seals to the radiator neck to prevent mess while bleeding air.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (if needed) and remove the front skid plate

• Raise the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the front skid plate/under cover using a 12mm socket, 10mm socket, and 3/8" ratchet.
• If you have plastic clips, remove them with a plastic trim clip tool.

Step 2: Drain coolant from the radiator

• Place a drain pan (at least 3-gallon) under the radiator drain cock (petcock) on the lower corner of the radiator.
• Slowly remove the radiator cap to release any leftover pressure (engine must be cold).
• Open the drain cock by hand (use nitrile gloves for grip) and drain coolant into the pan.

Step 3: Remove the lower radiator hose from the thermostat housing

• Locate the lower radiator hose where it connects to the engine water inlet/thermostat housing (front-lower area of the engine).
• Move the spring clamp back using hose clamp pliers.
• Twist the hose to break it loose, then pull it off. If it’s stuck, carefully work the edge with a pick tool without gouging the metal neck.
• Use shop rags to catch the extra coolant that will spill.

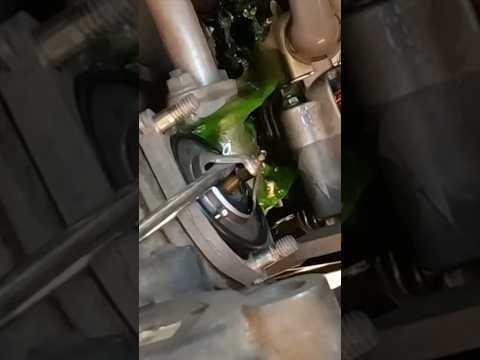

Step 4: Remove the thermostat housing

• Remove the thermostat housing bolts using a 10mm socket, 3/8" ratchet, and 3/8" extension (6").
• Pull the housing straight off. If it’s stuck, tap gently by hand—don’t pry hard on the sealing surface.

Step 5: Replace the thermostat and gasket

• Note the thermostat’s orientation before removal.
• Remove the old thermostat and the old gasket/O-ring.
• Clean the mating surfaces using a razor scraper (plastic) and shop rags. Do not scratch the sealing surface.
• Install the new thermostat and new gasket/O-ring.
• If your thermostat has a small “jiggle valve”/air bleed pin, install it at the top (12 o’clock position). This helps purge trapped air.

Step 6: Reinstall the thermostat housing

• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten the housing bolts evenly using a 10mm socket and torque wrench (inch-pound).
• Torque to 10 Nm (89 in-lb).

Step 7: Reconnect the lower radiator hose

• Push the hose fully onto the housing neck.
• Reposition the clamp using hose clamp pliers exactly where it was (behind the raised bead on the neck).

Step 8: Refill coolant and bleed air

• Close the radiator drain cock (snug by hand).
• Install your spill-free funnel kit on the radiator and fill with Toyota Super Long Life Coolant (pink, premixed) until the funnel stays about 1/3 full.
• Fill the overflow reservoir to the FULL line.
• Start the engine and set heat to HOT. Let it idle.
• As it warms up, squeeze the upper radiator hose carefully (use nitrile gloves) to help burp air.
• Watch for bubbles in the funnel and keep the level from dropping too low.
• When the thermostat opens, you’ll usually feel the upper hose get hot and the coolant level may drop—top off as needed.
• Once bubbles stop and the level stabilizes, shut the engine off and let it cool fully, then remove the funnel and reinstall the radiator cap.

Step 9: Reinstall the skid plate and lower the vehicle

• Reinstall the skid plate using a 12mm socket, 10mm socket, and 3/8" ratchet.
• Lower the vehicle from the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

---

✅ After Repair

• 🧪 With the engine fully warm, confirm the cabin heat is hot and the temperature gauge stays normal.
• 🔍 Check for leaks at the thermostat housing and lower hose connection.
• 🧊 After the next full cool-down, recheck the overflow reservoir level and top off with Toyota Super Long Life Coolant (pink, premixed) if needed.
• 🧼 Dispose of old coolant properly (sealed container; take to a recycling center/shop).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $270-$790 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.5 hours.

---
