🔧 RAV4 - Thermostat Replacement

Your thermostat controls engine temperature by opening and closing to let coolant flow. If it sticks closed, your RAV4 can overheat; if it sticks open, it may run cold and set a check-engine light. This job involves draining some coolant, swapping the thermostat, then refilling and bleeding air out.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic—keep it away from kids/pets and clean spills immediately.
• ⚠️ Work on a cold engine and wear gloves/eye protection.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3" extension (3/8" drive)
• Torque wrench (inch-pound)
• Pliers (hose clamp)
• Pick tool
• Funnel
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Toyota Super Long Life Coolant (pink) 50/50 premix - Qty: 2-3 gallons

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (cool to the touch).
• Set the heater to MAX HEAT (this helps air purge later).
• Raise the front of the RAV4 with a floor jack and support it on jack stands if you need more access underneath.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator cap only if the engine is fully cold. Use a shop rag over the cap.

Step 2: Drain coolant to below thermostat level

• Place a drain pan under the radiator drain.
• Open the radiator drain cock by hand (use a pick tool gently if the cap is stuck). Drain about 1–2 gallons so the level drops below the lower radiator hose.
• Close the drain cock by hand (snug only—do not overtighten).

Step 3: Gain access to the thermostat housing

• Remove the plastic engine cover (if equipped) using a 10mm socket.
• If the air intake duct blocks access, loosen its clamps using a 10mm socket and move it aside.
• Locate the thermostat housing at the engine end of the lower radiator hose.

Step 4: Remove the lower radiator hose from the housing

• Position the drain pan under the thermostat area (some coolant will spill).
• Use pliers (hose clamp) to compress the spring clamp and slide it back on the hose.
• Twist the hose by hand to break it loose, then pull it off. Twist first—don’t yank.

Step 5: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket with a 3" extension and 3/8" ratchet.
• Carefully separate the housing. If it’s stuck, tap lightly with your hand—do not pry hard on sealing surfaces.

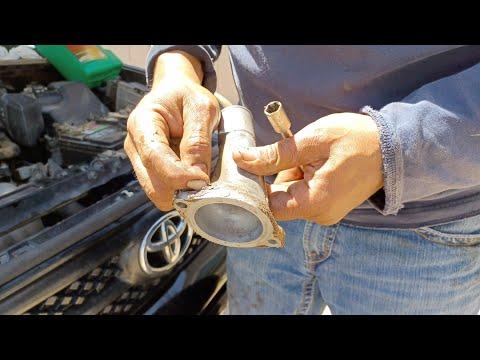

Step 6: Replace the thermostat and gasket

• Note the thermostat orientation before removal (the “jiggle valve”/small bleed pin should be positioned at the top if equipped).
• Remove the old thermostat and old gasket/O-ring by hand; use a pick tool gently if needed.
• Clean the mating surfaces with a shop rag (no deep scraping).
• Install the new thermostat and new gasket/O-ring in the same orientation as the old one.

Step 7: Reinstall the housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten evenly using a 10mm socket.
• Final-tighten with a torque wrench (inch-pound) (a torque wrench is a tool that tightens bolts to an exact safe tightness): Torque to 10 Nm (89 in-lbf).

Step 8: Reinstall the hose and anything you moved

• Push the lower radiator hose fully onto the housing.
• Use pliers (hose clamp) to move the clamp back to its original position.
• Reinstall the intake duct/engine cover using a 10mm socket.

Step 9: Refill coolant

• Insert a funnel into the radiator fill neck.
• Fill with Toyota Super Long Life Coolant (pink) 50/50 until full, then fill the overflow reservoir to the FULL line.

Step 10: Bleed air and verify thermostat operation

• Start the engine and let it idle with the radiator cap off.
• Keep the heater on MAX HEAT.
• As the engine warms, watch the coolant level and add as needed with the funnel.
• When the thermostat opens, you’ll usually see a noticeable drop/flow in the radiator and the upper hose will get hot. Top off again.
• Once bubbles reduce and level stabilizes, install the radiator cap.

---

✅ After Repair

• Let the engine reach normal operating temperature and confirm the cabin heater blows hot.
• Check for leaks around the thermostat housing and lower radiator hose connection.
• After a full cool-down, recheck radiator level and reservoir level; top off if needed.
• Over the next 1–2 drives, keep an eye on the temperature gauge and check for any coolant smell or drips.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$160 (parts only)

You Save: $190-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
