🔧 Highlander - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the right temperature. If it sticks open you may get slow warm-up and weak heat; if it sticks closed you can overheat. On your Highlander’s V6, the thermostat sits behind the coolant inlet housing where the lower radiator hose connects.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system hot; let the engine cool completely.
• ⚠️ Coolant is toxic; keep away from kids/pets and clean spills immediately.
• ⚠️ Use jack stands if lifting the front; never rely on a jack alone.
• ⚠️ Do not mix coolant types; use Toyota pink Super Long Life coolant.
• ⚠️ Battery disconnect is not required, but keep hands/tools away from the radiator fans (they can turn on).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Trim clip tool
• 10mm socket
• 12mm socket
• 3/8" ratchet
• 3" and 6" extensions (3/8" drive)
• Pliers (hose clamp pliers)
• Flat-blade screwdriver
• Torque wrench (inch-pound or low-range Nm)
• Razor scraper
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat gasket/O-ring - Qty: 1
• Toyota Super Long Life coolant (pink, premixed 50/50) - Qty: 2-3 gallons
• Lower radiator hose clamp - Qty: 1 Optional if original is weak

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully (radiator hose should feel cool, not warm).
• If you lift the front, raise with a floor jack and support with jack stands.
• Set the heater to MAX HOT during bleeding later (this opens the heater circuit).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure and prep access

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator cap (or coolant reservoir cap if that’s the only cap) to relieve any leftover pressure.
• Remove the plastic engine cover by pulling upward (no tools) if equipped.

Step 2: Remove the intake duct (for working room)

• Loosen the intake hose clamps using a flat-blade screwdriver.
• Remove any clips with a trim clip tool, then lift out the intake duct/resonator as needed.

Step 3: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain cock area.
• Open the radiator drain cock using a flat-blade screwdriver (turn slowly) and let coolant drain.
• Close the drain cock once flow slows to a drip (snug only; do not over-tighten).

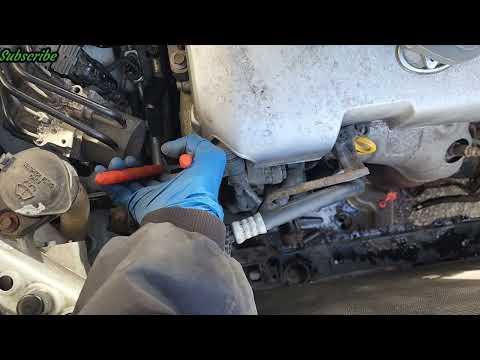

Step 4: Locate the thermostat housing (coolant inlet)

• Find the lower radiator hose; follow it to where it bolts to the engine—this is the thermostat housing.
• Put shop towels below the housing to catch the extra coolant that will spill when you open it.

Step 5: Remove the lower radiator hose from the housing

• Squeeze and slide the spring clamp back using pliers (hose clamp pliers).
• Twist the hose to break it loose, then pull it off the housing by hand.
• Tip: twist first, then pull.

Step 6: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket with a 3/8" ratchet and extensions (3/8" drive).
• Gently separate the housing from the engine (coolant will spill; keep the drain pan positioned).

Step 7: Replace the thermostat and gasket

• Remove the old thermostat and gasket/O-ring by hand.
• Clean the mating surfaces carefully using a razor scraper and shop towels (no deep scratching).
• Install the new gasket/O-ring on the new thermostat.
• Install the new thermostat in the same orientation as the old one; if it has a small “jiggle valve/bleed pin,” position it at the top.

Step 8: Reinstall the housing and torque bolts

• Reinstall the housing and start all bolts by hand to avoid cross-threading.
• Tighten the housing bolts evenly using a 10mm socket.
• Final tighten with a torque wrench (a torque wrench is a tool that tightens bolts to an exact setting): Torque to 10 Nm (89 in-lbs).

Step 9: Reinstall the lower radiator hose

• Push the hose fully onto the housing.
• Reposition the clamp using pliers (hose clamp pliers) back to its original spot.

Step 10: Reinstall the intake duct and cover

• Reinstall the intake duct and clips using a trim clip tool.
• Snug the hose clamps using a flat-blade screwdriver.
• Reinstall the engine cover (press down) if equipped.

Step 11: Refill and bleed the cooling system

• Refill with Toyota Super Long Life coolant (pink, premixed 50/50) using a funnel until full.
• Start the engine and set the heater to full HOT with the fan on low.
• Let the engine idle and warm up; keep topping off as the level drops.
• When the upper radiator hose gets hot, the thermostat has opened; continue until bubbles reduce and level stabilizes.
• Install the cap, then let it run until normal temperature. Check for leaks.

---

✅ After Repair

• With the engine at operating temp, inspect for leaks at the thermostat housing and hose connection.
• Test drive 10-15 minutes, then recheck for leaks.
• After the engine cools completely, recheck the coolant level and top off the reservoir if needed.
• If the temperature gauge rises abnormally or heater blows cold, shut down and re-bleed (air may be trapped).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $60-$150 (parts only)

You Save: $300-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
