🔧 Thermostat - Replacement

Your A4—

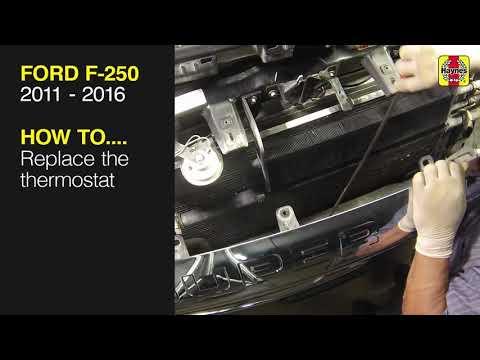

Assumption: Thermostat replacement on your F-250’s 6.2L cooling system using the factory-style thermostat and seal.

You’ll be draining some coolant, removing the thermostat housing (water outlet) at the front of the engine, swapping the thermostat and seal, then refilling and bleeding air so it doesn’t overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant degas bottle (reservoir cap) on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the truck with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Keep coolant off belts and electrical connectors, and clean spills—coolant is slippery and toxic to pets.
• ⚠️ Let the engine cool completely before starting (ideally overnight).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 4-gallon)
• Funnel
• Shop rags
• Trim clip tool
• Flathead screwdriver
• Hose clamp pliers
• 1/4" drive ratchet
• 3/8" drive ratchet
• 10mm socket
• 8mm socket
• 6" extension
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (6.2L) - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (50/50 premix, Ford-spec equivalent) - Qty: 2-4 gallons
• Distilled water - Qty: 1-2 gallons (if using concentrate coolant)
• Upper radiator hose clamp - Qty: 1 (only if the original is weak/damaged)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely so the cooling system is not under pressure.
• Set the HVAC to HEAT and HIGH fan later during bleeding (this helps move coolant through the heater core).
• Take a quick photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Make sure the engine is fully cool.
• Place a shop rag over the degas bottle cap, then slowly loosen it to the first stop to confirm there’s no pressure.
• Remove the cap completely once no hissing is heard.

Step 2: Drain enough coolant

• Position a drain pan (at least 4-gallon) under the radiator drain area.
• If needed for access, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Open the radiator drain (petcock) using a flathead screwdriver (style varies) and drain until the level is below the thermostat housing.
• Close the drain snugly when done (do not overtighten plastic drains).

Step 3: Remove the upper intake snorkel/air ducting (as needed)

• Loosen intake clamps using an 8mm socket and 3/8" drive ratchet.
• Release any push-pins with a trim clip tool, then lift the ducting out of the way.
• More space = less broken plastic.

Step 4: Disconnect the upper radiator hose at the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the housing.
• Catch any remaining coolant with the drain pan and shop rags.
• Hose clamp pliers squeeze spring clamps safely.

Step 5: Remove the thermostat housing (water outlet)

• Remove the housing bolts using a 10mm socket, ratchet, and 6" extension.
• Lift the housing off carefully. If it’s stuck, tap lightly by hand—do not pry hard against sealing surfaces.
• Note the thermostat’s orientation before removal (spring side goes toward the engine).

Step 6: Replace the thermostat and seal

• Remove the old thermostat and old seal/O-ring by hand.
• Clean the mating surfaces with shop rags (no gouges, no heavy scraping).
• Install the new thermostat in the same orientation as removed.
• Install the new seal/O-ring (lightly wet it with fresh coolant so it seats without pinching).

Step 7: Reinstall and torque the thermostat housing

• Set the housing straight down to avoid pinching the seal.
• Thread bolts in by hand first to prevent cross-threading.
• Tighten evenly using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) using a torque wrench (inch-pound).

Step 8: Reconnect the hose and reinstall the intake ducting

• Push the upper radiator hose fully onto the housing.
• Use hose clamp pliers to position the clamp back where it was.
• Reinstall the intake ducting and tighten clamps using an 8mm socket.

Step 9: Refill coolant

• Insert a funnel into the degas bottle.
• Fill with the correct 50/50 premix coolant (or concentrate + distilled water) until it reaches the fill line.
• Reinstall the degas bottle cap.

Step 10: Bleed air and verify thermostat operation

• Start the engine and let it idle.
• Set the HVAC to maximum heat and high fan (this helps purge air).
• Watch the temperature gauge and check for leaks around the housing and hose connection.
• After the engine warms up, you should feel the upper radiator hose get hot—this indicates the thermostat opened.
• Shut the engine off, let it cool fully, then top off the degas bottle as needed using the funnel.

---

✅ After Repair

• Recheck coolant level the next morning (cold engine) and top off if needed.
• Inspect for seepage at the thermostat housing and hose clamp after your first drive.
• Make sure cabin heat is strong and the temperature gauge stays normal.
• Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$550 (parts + labor)

DIY Cost: $40-$150 (parts only)

You Save: $210-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
