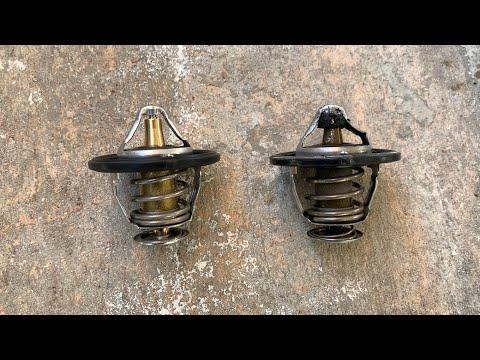

🔧 Odyssey - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks open, the engine may run cool (poor heat, worse fuel economy). If it sticks closed, the engine can overheat (serious damage risk).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: stock cooling system, no prior modifications.

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; wait until fully cool.
• ⚠️ Support the van with jack stands; never rely on a floor jack alone.
• ⚠️ Coolant is toxic—use gloves and keep it away from kids/pets.
• ⚠️ If working near the alternator wiring, disconnect the negative battery cable to prevent shorts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Funnel
• 10mm socket
• 12mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (5–60 Nm range)
• Flathead screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Honda-approved coolant (Type 2 premix) - Qty: 1-2 gallons
• Replacement hose clamps (optional) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (radiator hoses should feel cool).
• Set the cabin HVAC to HOT (this helps purge air during refill).
• If you’ll be reaching near the alternator power wire, disconnect the battery using a 10mm socket (negative terminal first).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front safely

• Use a floor jack to lift the front jacking point.
• Set the van down onto jack stands and gently rock it to confirm it’s stable.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip removal tool to pop out plastic clips.
• Use a 10mm socket to remove any bolts holding the splash shield.
• Set hardware aside in a small container. Keep clips grouped by location.

Step 3: Drain the coolant

• Place a drain pan (at least 10-quart) under the radiator drain.
• Slowly remove the radiator cap (engine cold) by hand.
• Open the radiator drain cock using a flathead screwdriver (turn gently; it’s plastic).
• Let coolant drain fully, then close the drain cock snugly by hand. Do not overtighten plastic.

Step 4: Remove the air intake ducting for access

• Use a flathead screwdriver to loosen the intake hose clamps.
• Use a 10mm socket to remove any intake resonator/duct bolts.
• Lift the ducting out so you can better reach the thermostat housing area.
• Take a quick photo before removal.

Step 5: Locate the thermostat housing

• The thermostat sits in the housing where the lower radiator hose connects to the engine (coolant inlet).
• Follow the lower radiator hose by hand to the engine end to find the housing.

Step 6: Remove the lower radiator hose from the housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off.
• Catch leftover coolant with the drain pan and use shop rags to protect belts/components.
• Twist first—don’t pry hard.

Step 7: Remove the thermostat housing

• Use a 10mm socket with a 3/8" drive ratchet and extensions to remove the housing bolts.
• Pull the housing straight off; a little coolant may spill.
• Remove the thermostat and old O-ring/gasket.

Step 8: Install the new thermostat and O-ring

• Wipe the mating surfaces clean with shop rags (no gouging).
• Install the new O-ring/gasket on the new thermostat (or into the housing, depending on design).
• Install the thermostat in the same orientation as removed (the “jiggle valve”/air bleed pin, if present, should be at the top).
• Reinstall the housing and hand-start all bolts.
• Tighten housing bolts evenly using a torque wrench: Torque to 12 Nm (9 ft-lbs).

Step 9: Reinstall the hose and clamps

• Push the hose fully onto the thermostat housing.
• Use hose clamp pliers to move the clamp back to its original position.
• Confirm the clamp sits squarely over the hose bead (raised lip).

Step 10: Refill and bleed the cooling system

• Insert a funnel and fill the radiator with Honda-approved coolant (Type 2 premix) until full.
• Fill the coolant reservoir to the MAX line.
• If your housing has an air bleeder bolt, open it with a 12mm socket until coolant flows without bubbles, then close it: Torque to 9 Nm (80 in-lbs).
• Start the engine and let it idle with the radiator cap off.
• Turn the cabin heat to full HOT and fan on low; watch for bubbles and add coolant as the level drops.
• Once the radiator fan cycles on and off and bubbles stop, install the radiator cap by hand.
• Keep hands clear of the cooling fan.

Step 11: Reinstall splash shield and intake parts

• Reinstall the intake ducting using a 10mm socket and tighten clamps with a flathead screwdriver.
• Reinstall the splash shield using the 10mm socket and trim clip removal tool.

Step 12: Lower the van

• Use the floor jack to lift slightly, remove jack stands, then lower to the ground.

---

✅ After Repair

• Let the engine reach normal operating temperature and confirm the cabin heat is strong.
• Check for leaks around the thermostat housing and the lower radiator hose connection.
• After the first test drive and full cool-down, recheck the reservoir level and top off to MAX if needed.
• Dispose of old coolant properly (many parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $45-$140 (parts only)

You Save: $210-$605 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
