🔧 Grand Cherokee - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks closed you can overheat; if it sticks open the engine may run cold and set a check-engine light.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system when hot; let the engine cool completely.
• ⚠️ Coolant is toxic—keep away from kids/pets and clean spills right away.
• ⚠️ Support the vehicle with jack stands if you raise it; never rely on a jack.
• ⚠️ Wear gloves and safety glasses; coolant can irritate skin/eyes.
• ⚠️ Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8")
• 10mm socket
• 6" extension (3/8")
• Torque wrench (inch-pound or low-range Nm)
• Hose clamp pliers (specialty)
• Pick tool
• Plastic scraper
• Shop rags
• Funnel
• 8mm wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat (correct temperature rating for your Grand Cherokee) - Qty: 1
• Thermostat seal / O-ring (or thermostat housing gasket, if applicable) - Qty: 1
• Engine coolant (HOAT, compatible with Mopar MS-9769) - Qty: 2-3 gallons (as needed)
• Distilled water - Qty: 1-2 gallons (if mixing 50/50)

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool fully (upper radiator hose should be cool to the touch).
• 🧰 Set the HVAC to full HOT later during bleeding (this helps purge air from the heater core).
• 🧰 If you raise the front, use a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Put on safety glasses and nitrile gloves.
• Slowly loosen the radiator/pressure cap only if the engine is cool, then remove it.

Step 2: Drain enough coolant

• Place a drain pan (at least 10-quart) under the radiator drain area.
• If access is tight, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Open the radiator drain and drain until the level is below the thermostat housing (usually 1-2+ quarts).
• Save clean coolant only if it’s fresh.

Step 3: Remove the upper radiator hose from the thermostat housing

• Locate the thermostat housing at the front/top of the engine where the upper radiator hose connects.
• Use hose clamp pliers (specialty) to compress the clamp and slide it back on the hose.
• Twist the hose to break it free, then pull it off. Use a pick tool carefully if it’s stuck (don’t gouge the plastic/metal).

Step 4: Remove the thermostat housing

• Use a ratchet (3/8"), 10mm socket, and 6" extension (3/8") to remove the thermostat housing bolts.
• Lift the housing off and set it aside on shop rags.

Step 5: Replace the thermostat and seal

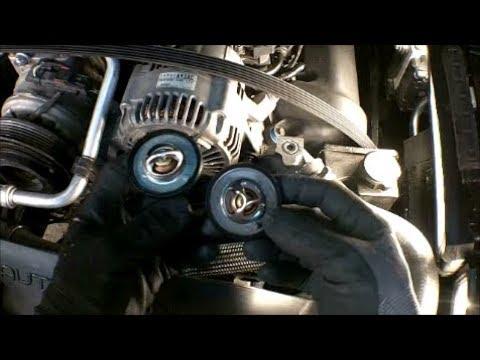

• Remove the old thermostat and the old seal/O-ring.
• Clean the mating surfaces using a plastic scraper and shop rags. Do not use a metal scraper (it can cause leaks).
• Install the new thermostat in the same orientation as the old one.
• Install the new seal/O-ring. Use a pick tool only if needed to seat it gently.

Step 6: Reinstall housing and torque bolts

• Reinstall the thermostat housing by hand-starting the bolts.
• Tighten evenly using a ratchet (3/8") and 10mm socket.
• Final-tighten with a torque wrench (inch-pound or low-range Nm): Torque to 12 Nm (105 in-lbs).

Step 7: Reconnect hose

• Push the hose fully onto the thermostat housing.
• Use hose clamp pliers (specialty) to move the clamp back into its original position.

Step 8: Refill and bleed the cooling system

• Refill coolant using a funnel with HOAT coolant (50/50 with distilled water unless you bought premix).
• If your housing has a bleed screw, crack it open with an 8mm wrench while filling until a steady stream (no bubbles) comes out, then close it snugly.
• Top off the radiator and fill the overflow bottle to the correct mark.

Step 9: Warm up and top off

• Start the engine and let it idle with the heater set to HOT.
• Watch the temperature gauge; it should rise to normal and stabilize.
• Shut the engine off, let it cool, then recheck and top off the radiator/overflow as needed using a funnel.

---

✅ After Repair

• 🧪 Check for leaks around the thermostat housing and hose connection with the engine running.
• 🧪 Verify the heater blows hot air and the temperature gauge stays steady at normal.
• 🧪 Over the next 1-2 drives, recheck coolant level when cold and top off if needed.
• 🧪 Properly dispose of old coolant (many local parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$500 (parts + labor)

DIY Cost: $35-$120 (parts only)

You Save: $130-$465 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
