🔧 Corolla - Thermostat Replacement

The thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it sticks open you can get low heat and poor warm-up; if it sticks closed the engine can overheat. On your Corolla, it’s housed at the water inlet where the lower radiator hose connects to the engine.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: OEM-style thermostat with new O-ring/gasket.

---

⚠️ Safety & Precautions

• ⚠️ Never open the cooling system when hot; scalding coolant risk.
• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ Keep coolant off belts/alternator and off the ground (pets are attracted to it).
• ⚠️ Battery disconnect is not required, but keep hands clear of the radiator fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Drain pan (at least 2 gallons)
• Socket set with 10mm socket
• 3/8" drive ratchet
• 3" extension for ratchet
• Torque wrench (inch-pound or low-range Nm)
• Pliers
• Hose clamp pliers (specialty)
• Trim clip remover tool
• Flathead screwdriver
• Funnel
• Spill-free funnel kit (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Toyota Super Long Life Coolant (pink) premix - Qty: 1-2 gallons
• Replacement hose clamp(s) - Qty: 1-2
• Replacement under-cover clips - Qty: 2-6

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧰 Let the engine cool completely (best: sit overnight).
• 🧰 Set the cabin heat to full HOT during bleeding later (this helps move coolant through the heater core).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower engine cover

• Use floor jack to lift the front at the center front jacking point, then set the car on jack stands.
• Use wheel chocks to prevent rolling.
• Remove the engine under cover (splash shield) using a trim clip remover tool and 10mm socket.
• Bag the clips so none get lost.

Step 2: Drain coolant from the radiator

• Place a drain pan (at least 2 gallons) under the radiator drain area.
• Open the radiator drain cock slowly (use pliers only if needed; do not force).
• Open the coolant reservoir cap to help it drain (use nitrile gloves and safety glasses).
• Let coolant drain until flow slows to a drip.

Step 3: Locate the thermostat housing (water inlet)

• Find the lower radiator hose; follow it to where it attaches to the engine. That connection is the thermostat housing/water inlet.
• Wipe the area with shop towels so dirt doesn’t fall inside.

Step 4: Remove the lower radiator hose from the housing

• Use hose clamp pliers (specialty) to squeeze the spring clamp and slide it back on the hose. (These pliers lock the clamp open so you can work with one hand.)
• Twist the hose gently to break it free, then pull it off. Use a flathead screwdriver only to gently help loosen—do not gouge the plastic/metal fitting.
• Expect more coolant to spill; keep the drain pan underneath.

Step 5: Remove the thermostat housing and thermostat

• Remove the housing bolts using a 10mm socket, 3/8" drive ratchet, and 3" extension.
• Pull the housing straight off and remove the thermostat.
• Remove and discard the old O-ring / gasket.

Step 6: Install the new thermostat and O-ring/gasket

• Install the new thermostat in the same orientation as the old one.
• Install the new O-ring / gasket (lightly wet it with fresh coolant to help it seat).
• Reinstall the housing and start the bolts by hand to avoid cross-threading.
• Tighten evenly using a torque wrench: Torque to 10 Nm (89 in-lb).
• Hand-start every bolt before tightening.

Step 7: Reinstall the lower radiator hose

• Push the hose fully onto the housing until it bottoms out.
• Use hose clamp pliers (specialty) to move the clamp back into its original position.
• Wipe everything down with shop towels to spot leaks later.

Step 8: Refill coolant and bleed air

• Close the radiator drain cock by hand (snug only).

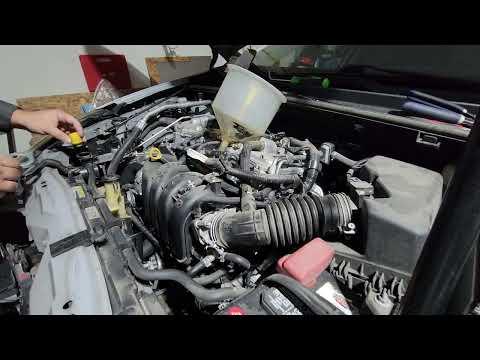

• Refill using Toyota Super Long Life Coolant (pink) premix with a funnel (or spill-free funnel kit (specialty) to reduce mess and trapped air).
• Fill the reservoir to the FULL line.
• Start the engine and let it idle with the heater set to HOT.
• As the engine warms, watch coolant level and top off as needed (use funnel).
• Once you get steady heat from the vents and the radiator fan cycles, shut the engine off and let it cool. Then recheck and top off the reservoir.

Step 9: Reinstall the under cover and lower the car

• Reinstall the under cover using the 10mm socket and trim clip remover tool.
• Lift slightly with the floor jack, remove jack stands, and lower the car.

---

✅ After Repair

• ✅ Test drive 10–15 minutes, then check for leaks around the thermostat housing and lower hose.
• ✅ After the engine fully cools, recheck the reservoir level and top off with Toyota Super Long Life Coolant (pink) premix.
• ✅ Watch the temperature gauge for normal operation (no overheating, normal heat output).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$110 (parts only)

You Save: $140-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
