🔧 Corolla - Thermostat Replacement

You'll be draining some coolant, removing the thermostat housing on the engine, and installing a new thermostat with a fresh gasket. This restores proper engine operating temperature and can fix overheating or running-too-cold problems.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Never open the cooling system when the engine is hot; hot coolant can spray and burn you.
• 🧤 Wear gloves and safety glasses; coolant is slippery and irritating to skin and eyes.
• 🧯 Keep coolant away from children and animals; it is poisonous but smells sweet.
• 🪫 Disconnect the negative battery cable if your tools might contact the starter or main power cables near the work area.
• 🧊 Work on a completely cool engine; let the Corolla sit at least 2–3 hours after driving.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive extension (3–6")
• 🧰 Torque wrench (inch-lb and ft-lb, 5–80 ft-lb range)
• 🧰 Flathead screwdriver (medium)
• 🧰 Pliers (regular slip-joint)
• 🧰 Hose clamp pliers (specialty)
• 🧰 Pick tool or small hook tool (specialty)
• 🧰 Plastic trim tool set (specialty)
• 🧰 Coolant drain pan (at least 2-gallon capacity)
• 🧰 Funnel with long neck
• 🧰 Shop towels or rags
• 🧰 Work light or flashlight
• 🧰 Gloves (mechanic style)
• 🧰 Safety glasses
• 🧰 Floor jack (rated 2-ton minimum)
• 🧰 Jack stands (rated 2-ton minimum, pair)
• 🧰 Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🧱 Thermostat (correct temperature for your Corolla) - Qty: 1
• 🧱 Thermostat gasket or O-ring - Qty: 1
• 🧱 Toyota Super Long Life coolant (pink, premixed 50/50) - Qty: 2–3 gallons
• 🧱 Thermostat housing bolts (optional replacement) - Qty: 2
• 🧱 Upper radiator hose clamp (worm-gear, correct size, optional) - Qty: 1
• 🧱 Lower radiator hose clamp (optional) - Qty: 1
• 🧱 Shop towels or absorbent pads - Qty: 1 pack

---

📋 Before You Begin

• Park the Corolla on level ground, engage the parking brake, and place wheel chocks behind the rear wheels.
• Let the engine cool completely; the upper radiator hose should feel cold to the touch.
• Open the hood and locate the coolant reservoir and radiator cap; do not remove the cap yet.
• If you want extra safety, disconnect the negative battery cable using a 10mm socket.
• Raise the front of the Corolla with the floor jack and support it securely on jack stands under the proper pinch welds or frame points.
• Place the coolant drain pan under the radiator drain area (bottom of radiator, passenger side).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve coolant system pressure

• Use your hand to slowly crack the radiator cap loose; push down and turn slowly until you hear any remaining pressure hiss out.
• Once there is no more hissing, remove the radiator cap completely and set it aside on a clean rag.
• If cap feels stuck, do not force it hot.

Step 2: Drain some coolant

• Position the coolant drain pan directly under the radiator drain (a small plastic petcock at the bottom of the radiator, usually on the passenger side).
• Use a flathead screwdriver to gently turn the petcock counterclockwise to open it.
• Allow coolant to drain until the level is below the thermostat housing level; draining 1–1.5 gallons is usually enough.
• When done, use the flathead screwdriver to close the petcock snugly by turning clockwise; do not over-tighten.
• Wipe any drips so leaks are easy to spot later.

Step 3: Locate the thermostat housing

• On the 1.8L engine, follow the lower radiator hose from the radiator to the engine block; the metal or plastic part it bolts to is the thermostat housing.
• Use a work light to clearly see the area, from above and from below if needed.

Step 4: Remove any covers or air ducting for access (if needed)

• If plastic engine covers block access, use a 10mm socket or your hands (if they are pop-on) to remove them.
• If intake ducting is in the way, loosen hose clamps with a flathead screwdriver and carefully remove the duct.
• Use plastic trim tools to pry up any plastic clips without breaking them.

Step 5: Remove the lower radiator hose from the thermostat housing

• Place the coolant drain pan directly under the thermostat housing; some coolant will still spill.
• Use hose clamp pliers (or regular pliers) to squeeze the spring clamp on the lower radiator hose where it connects to the thermostat housing.
• Slide the clamp away from the housing onto the hose.
• Gently twist the hose at the housing connection to break it loose, using your hands first.
• If stuck, carefully use a pick tool to lift the hose edge slightly and break the seal, then pull the hose off.
• Be gentle; do not gouge the hose.

Step 6: Remove the thermostat housing

• Locate the housing bolts (usually two) holding the thermostat housing to the engine.
• Use a 10mm socket, ratchet, and possibly a 3–6" extension to remove the bolts.
• Support the housing with one hand while removing the last bolt, then pull the housing straight off.
• Some coolant may drip; keep the drain pan underneath.

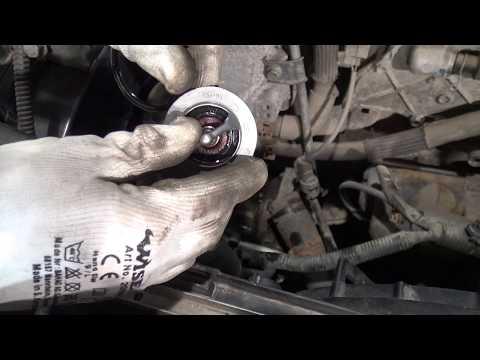

Step 7: Remove the old thermostat

• Note the orientation of the old thermostat: the spring side goes toward the engine, and there may be a small jiggle valve (tiny pin) that must face upward.
• Pull the thermostat out with your fingers or gently with a pick tool.
• Remove the old gasket or O-ring from the housing or engine surface.

Step 8: Clean the sealing surfaces

• Use a clean rag to wipe the mating surface on the engine and inside the thermostat housing where the gasket or O-ring sits.
• If there are stuck gasket bits, carefully scrape them with a plastic scraper or the edge of a plastic trim tool, not metal.
• Surfaces must be smooth and clean for no leaks.

Step 9: Install the new thermostat and gasket

• Fit the new gasket or O-ring onto the new thermostat or into the housing groove, depending on design.
• Install the thermostat in the same orientation as the old one: usually spring side toward the engine and jiggle valve (small pin/bleed hole) pointing upward at about the 12 o'clock position.
• Make sure it seats fully and evenly.

Step 10: Reinstall the thermostat housing

• Position the thermostat housing over the new thermostat, lining up the bolt holes.
• Hand-thread the bolts a few turns to avoid cross-threading.
• Use a 10mm socket and ratchet to snug both bolts evenly.
• Then use a torque wrench with a 10mm socket to tighten the housing bolts to 10 Nm (89 in-lb).
• Tighten evenly: small turns, alternating bolts.

Step 11: Reattach the lower radiator hose

• Push the lower radiator hose fully onto the thermostat housing neck until it seats against the stop.
• Use hose clamp pliers or pliers to move the hose clamp back into its original position over the hose and neck.
• Make sure the clamp is centered and fully around the hose.

Step 12: Reinstall any covers or intake ducting

• Reinstall any intake ducts you removed, sliding them into place and tightening clamps with a flathead screwdriver.
• Reinstall engine covers with a 10mm socket or by pressing them back onto their grommets.

Step 13: Refill the cooling system

• Make sure the radiator drain petcock is fully closed.
• Place a funnel into the radiator filler neck.
• Slowly pour Toyota pink Super Long Life coolant into the radiator until it reaches the top.
• Fill the coolant reservoir to the "FULL" or "MAX" line using the same coolant.
• Pour slowly to reduce trapped air.

Step 14: Bleed air from the system

• Leave the radiator cap off for now.
• Start the engine and let it idle; turn the heater to HOT and fan to low so coolant can circulate through the heater core.
• Watch the coolant level in the radiator; as the thermostat opens, the level may drop.
• Add coolant through the funnel as needed to keep it near the top.
• Lightly squeeze the upper radiator hose with a gloved hand to help push out air bubbles.
• Once the engine reaches normal operating temperature and the level stabilizes, install the radiator cap by pushing down and turning until fully seated.

Step 15: Check for leaks

• With the engine still running, use a work light to inspect the thermostat housing area, lower radiator hose connection, and radiator drain for any leaks.
• Shut off the engine after about 10–15 minutes of running and let it cool completely.
• Recheck the coolant level in the reservoir; top off to the "FULL" line if needed.

Step 16: Lower the vehicle

• Remove the jack stands and lower the Corolla carefully with the floor jack.
• Remove the wheel chocks.
• If you disconnected the battery, reconnect the negative cable with a 10mm socket and snug it down.

---

✅ After Repair

• Take a short test drive (10–15 minutes) with the heater on and watch the temperature gauge; it should reach normal and stay steady.
• After the drive, park, shut off the engine, and check under the Corolla for any coolant drips.
• Once completely cool again, recheck reservoir level and top off if slightly low.
• Safely dispose of old coolant at a recycling center; do not pour it on the ground or down a drain.

---

💰 DIY vs Shop Cost

Shop Cost: $250–$450 (parts + labor)

DIY Cost: $60–$140 (parts only)

You Save: $190–$310 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
