🔧 Thermostat - Replacement

On your F-150, the thermostat controls coolant flow to keep engine temperature stable. Replacing it typically involves draining some coolant, removing the thermostat housing at the front of the engine (where the upper radiator hose connects), swapping the thermostat and seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir (degas bottle) cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the truck safely if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic; keep it off the ground and away from pets/children.
• ⚠️ Keep hands/tools clear of the fan and belt while the engine is running during bleed checks.
• Disconnecting the battery is not required for this repair.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive metric socket set (7mm-13mm)
• 3/8" drive metric socket set (8mm-15mm)
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• Torque wrench (5-30 Nm range)
• Hose clamp pliers
• Pick tool
• Trim clip remover
• Funnel
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat seal / O-ring - Qty: 1
• Engine coolant (Ford-spec, concentrate or premix) - Qty: 2-4 gallons (as needed)
• Distilled water - Qty: 1-2 gallons (if using concentrate)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely (ideally overnight).
• Place wheel chocks behind the rear wheels.
• Set the HVAC to full hot later during bleeding (this helps move coolant through the heater core).
• Quick check: look at the coolant in the reservoir and note the color (orange/yellow/green). Use the same Ford-spec coolant type—don’t mix types.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely (cold engine only)

• Put on safety glasses and nitrile gloves.
• With the engine cold, slowly loosen the coolant reservoir cap to the first stop, let any pressure vent, then remove it fully by hand.

Step 2: Raise the front (optional, but makes draining easier)

• Use a floor jack (rated 3-ton minimum) to lift the front safely.
• Support with jack stands (rated 3-ton minimum) under the frame.

Step 3: Drain enough coolant to get below the thermostat level

• Place a drain pan (at least 3-gallon) under the radiator drain area.
• If equipped with a radiator drain petcock, open it by hand or with the appropriate 1/4" drive metric socket set (7mm-13mm) if needed.
• Drain until the level is low enough that the upper radiator hose area won’t spill heavily when opened.
• Tip: draining 1–2 gallons is often enough.

Step 4: Remove the intake ducting for access

• Use a trim clip remover to remove any push-pins holding the inlet snorkel/cover (if equipped).
• Loosen intake duct clamps using the appropriate socket from your 1/4" drive metric socket set (7mm-13mm).
• Remove the intake ducting by hand and set it aside.

Step 5: Locate the thermostat housing

• Follow the upper radiator hose to the engine. The thermostat sits behind the housing at that hose connection point.
• Put shop towels under the housing area to catch drips.

Step 6: Remove the upper radiator hose from the housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off the housing by hand.
• If it’s stuck, use a pick tool carefully to break the seal at the edge (do not gouge the plastic/metal nipple).

Step 7: Remove the thermostat housing

• Remove the housing bolts using a 3/8" drive metric socket set (8mm-15mm), 3/8" drive ratchet, and 3/8" drive extension set (3" and 6").
• Lift the housing off and expect some coolant to spill into the towels/pan.

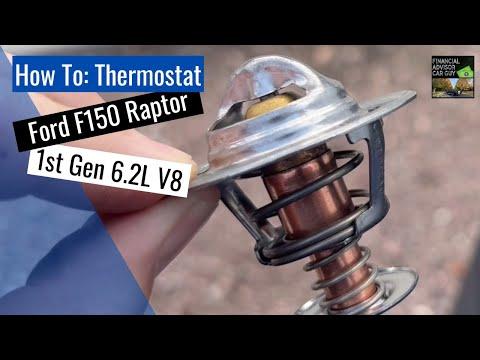

Step 8: Replace the thermostat and seal

• Remove the old thermostat and seal by hand.
• Clean the mating surfaces with shop towels (no scraping that could scratch the surface).
• Install the new thermostat in the same orientation as the old one.
• Install the new seal/O-ring (make sure it sits flat and is not pinched).

Step 9: Reinstall the housing and torque bolts

• Reinstall the thermostat housing and start the bolts by hand to avoid cross-threading.
• Tighten evenly using a 3/8" drive ratchet.
• Final tighten using a torque wrench (5-30 Nm range): Torque to 10 Nm (89 in-lbs).

Step 10: Reinstall the upper radiator hose and intake ducting

• Push the hose fully onto the housing by hand.
• Use hose clamp pliers to move the clamp back to its original position.
• Reinstall the intake ducting and tighten clamps using your 1/4" drive metric socket set (7mm-13mm).

Step 11: Refill coolant

• Use a funnel to refill the reservoir with the correct Ford-spec coolant.
• If using concentrate, mix with distilled water to a 50/50 blend unless your coolant label specifies otherwise.
• Fill to the MAX line (or slightly above if you drained a lot, then adjust after bleeding).

Step 12: Bleed air and verify thermostat operation

• Start the engine and let it idle.
• Set the heat to HOT and fan to medium.
• Watch the temperature gauge and check for leaks with a flashlight (use shop towels to wipe and re-check).
• As the engine warms, the coolant level may drop—shut off the engine and top off as needed using a funnel.
• Once warm, confirm you have steady hot air from the vents (a good sign coolant is circulating through the heater core).
• Let it cool completely, then recheck the reservoir and adjust to the correct level.

---

✅ After Repair

• Check for leaks around the thermostat housing and upper radiator hose after the first drive.
• Verify the temperature gauge stays stable and the heater output is consistent.
• Recheck coolant level the next morning (cold) and top off if needed.
• Dispose of old coolant properly (sealed container; take to a recycling/hazard facility).

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$110 (parts only)

You Save: $140-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
