🔧 Camry - Thermostat Replacement

Your Camry’s thermostat regulates engine temperature by controlling coolant flow to the radiator. If it sticks closed, the engine can overheat; if it sticks open, the heater may be weak and the engine may run cool.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator cap on a hot engine; hot coolant can spray and burn.
• ⚠️ Support the car with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic; keep it off skin and away from kids/pets, and dispose of it properly.
• ⚠️ Keep fingers/tools clear of belts and fans when the engine is running.
• 🔋 Battery disconnect is not required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• 10mm socket
• 3/8" ratchet
• 6" socket extension
• Torque wrench (5–30 Nm range)
• Hose clamp pliers
• Pick tool
• Plastic trim tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine thermostat - Qty: 1
• Thermostat O-ring / gasket - Qty: 1
• Toyota Super Long Life Coolant (pink, premixed 50/50) - Qty: 2 gallons
• Lower radiator hose clamp - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Let the engine cool fully (preferably overnight) so the system is not pressurized.
• 🔥 Set the heater controls to HOT later during bleeding; this helps move coolant through the heater core.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (if needed) and remove the radiator cap

• Use wheel chocks behind the rear wheels.
• If you need more room, lift the front with a floor jack (rated 2-ton minimum) and support it with jack stands (rated 2-ton minimum).
• Slowly remove the radiator cap by hand only after the engine is fully cold.

Step 2: Drain enough coolant to get below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain.
• Open the radiator drain and let coolant drain. Close it once the level is low enough that the lower radiator hose area won’t gush when removed.
• Save clean coolant only if very fresh.

Step 3: Access the thermostat housing (water inlet)

• Use a plastic trim tool and 10mm socket with a 3/8" ratchet as needed to loosen/remove any intake ducting or covers blocking access.
• Locate the thermostat housing where the lower radiator hose attaches to the engine.

Step 4: Remove the lower radiator hose from the thermostat housing

• Use hose clamp pliers to compress the clamp and slide it back on the hose.
• Twist the hose to break it loose, then pull it off. Use a pick tool gently if it’s stuck. (A pick tool is a small hook used to loosen seals without tearing them.)
• Catch any remaining coolant with the drain pan and wipe spills using shop rags.

Step 5: Remove the thermostat housing and thermostat

• Use a 10mm socket, 3/8" ratchet, and 6" socket extension to remove the thermostat housing bolts.
• Carefully separate the housing and remove the thermostat.
• Remove the old O-ring / gasket. Clean the mating surfaces with shop rags only.

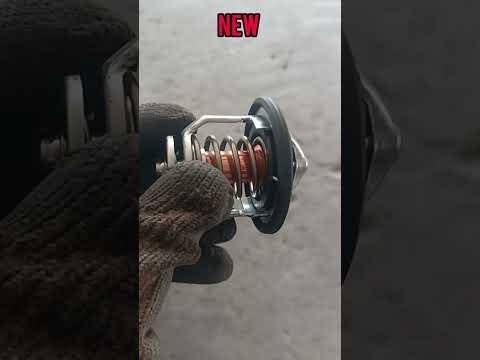

Step 6: Install the new thermostat and O-ring/gasket

• Install the new O-ring / gasket on the new thermostat (or in the housing groove, depending on design).
• Install the thermostat into the engine/housing in the same orientation as removed.
• If your thermostat has a small “jiggle valve” (tiny loose pin/vent), position it at the top (12 o’clock) unless the part’s instructions specify otherwise.

Step 7: Reinstall the thermostat housing

• Start the housing bolts by hand to avoid cross-threading.
• Use a torque wrench (5–30 Nm range) and 10mm socket to tighten evenly: Torque to 10 Nm (89 in-lbs).

Step 8: Reinstall the lower radiator hose

• Push the hose fully onto the thermostat housing neck.
• Use hose clamp pliers to place the clamp back in its original position.
• Replace the clamp if it’s weak, rusty, or won’t hold tension.

Step 9: Refill coolant

• Use a funnel to refill with Toyota Super Long Life Coolant (pink, premixed 50/50).
• Fill the radiator, then fill the overflow reservoir to the FULL line.
• Reinstall the radiator cap snugly once the radiator is full.

Step 10: Bleed air and verify operation

• Start the engine and let it idle.
• Turn the heater to HOT and fan to medium.
• Watch the temperature gauge; it should rise to normal and stay steady.
• After warm-up and a short drive, let the engine cool completely, then recheck the reservoir level and top off using the funnel.
• Heat cycling helps purge trapped air.

---

✅ After Repair

• 🔍 Check for leaks around the thermostat housing and lower radiator hose with the engine running and after shutdown.
• 🌡️ Confirm the cabin heater blows hot air once warmed up.
• 🧪 Recheck coolant level the next morning (cold engine) and top off the reservoir if needed.
• 🚗 Test drive 10–15 minutes and confirm the temperature gauge stays normal.

---

💰 DIY vs Shop Cost

Shop Cost: $250-$450 (parts + labor)

DIY Cost: $40-$120 (parts only)

You Save: $130-$410 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
