🔧 Focus - Thermostat Replacement

The thermostat on your Focus controls coolant flow to keep engine temperature stable. Replacing it usually means draining some coolant, removing the thermostat housing, and refilling/bleeding the cooling system so you don’t overheat.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine (hot coolant can burn you).
• ⚠️ Wear gloves and safety glasses; coolant is toxic and slippery.
• ⚠️ Keep coolant away from kids/pets; clean spills immediately.
• ⚠️ Support the car with jack stands on level ground if you raise it.
• ⚠️ Battery disconnect is not required, but keep hands clear of the cooling fan (it can turn on unexpectedly).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Drain pan (at least 10-quart)
• Funnel
• Shop rags
• Flat trim tool
• Hose clamp pliers
• 8mm socket
• 10mm socket
• 1/4" drive ratchet
• 3" extension
• Torque wrench (in-lb or Nm)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly with seal/gasket - Qty: 1
• Engine coolant (50/50 premix, correct type for your Focus) - Qty: 2 gallons
• Small hose clamps - Qty: 2

---

📋 Before You Begin

• Park on level ground, engine fully cold, and set the parking brake.
• If you need more room, raise the front and support it on jack stands; use wheel chocks.
• Place a drain pan under the radiator area before you open the cooling system.
• Take a photo of hose routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (cold engine only)

• Put on gloves and safety glasses.
• Slowly loosen the coolant reservoir cap by hand to release any leftover pressure, then remove it.

Step 2: Drain coolant to below thermostat level

• Position the drain pan under the radiator.
• If equipped with a radiator drain, open it by hand or with a flat trim tool carefully.
• If there is no drain you can access easily, you can drain by loosening the lower radiator hose using hose clamp pliers and sliding the clamp back, then twisting/pulling the hose off carefully.

Step 3: Remove the air intake parts for access

• Loosen the intake tube clamp(s) using an 8mm socket and ratchet.
• Unclip/remove the air intake ducting and move it aside.
• If the air box blocks access, remove its fasteners using a 10mm socket, then lift it out.

Step 4: Locate the thermostat housing and disconnect hoses/connectors

• Find the thermostat housing where the upper radiator hose meets the engine.

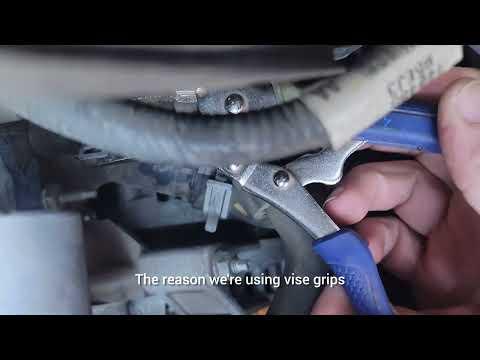

• Use hose clamp pliers to compress the spring clamp(s), slide them back, then twist and pull the hose(s) off.
• If your housing has an electrical connector (coolant temperature sensor), unplug it by hand after releasing the locking tab.
• Twist the hose to break it loose.

Step 5: Remove the thermostat housing

• Remove the housing bolts using a 10mm socket, ratchet, and 3" extension.
• Pull the housing away and let any remaining coolant drain into the drain pan.
• Clean the mating surface with a shop rag (no deep scraping; don’t gouge the aluminum).

Step 6: Install the new thermostat housing

• Confirm the new seal/gasket is seated correctly on the new housing.
• Install the housing and start all bolts by hand to avoid cross-threading.
• Tighten housing bolts evenly using a 10mm socket.
• Final tighten with a torque wrench: Torque to 10 Nm (89 in-lb).

Step 7: Reconnect hoses and electrical connector

• Push hoses fully onto the fittings.
• Reposition spring clamps using hose clamp pliers back to their original locations.
• Reconnect any electrical connector until it clicks.

Step 8: Reinstall the air intake parts

• Reinstall the air box (if removed) using a 10mm socket.
• Reinstall the intake tube/duct and tighten clamps using an 8mm socket.

Step 9: Refill and bleed the cooling system

• Close the radiator drain (if opened) by hand.
• Refill through the coolant reservoir using a funnel with 50/50 premix coolant until it reaches the MAX line.
• Start the engine and let it idle with the reservoir cap off for a few minutes; watch the level and add coolant as it drops.
• When you feel the upper radiator hose get hot, the thermostat has opened; top off again as needed.
• Install the reservoir cap by hand and let the engine reach normal temperature.
• Shut the engine off, let it cool completely, then recheck and adjust coolant to the MAX line.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• Confirm the heater blows hot air and the temperature gauge stays normal.
• After 1–2 drives and a full cool-down, recheck coolant level and add if needed.
• If the check engine light comes on, scan for codes (coolant temp sensor or thermostat performance codes are the most common).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
