🔧 Traverse - Thermostat Replacement

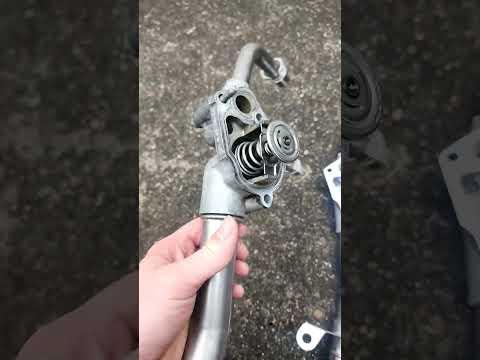

The thermostat controls engine temperature by opening and closing coolant flow. If it sticks open you may get low temperature/poor heat; if it sticks closed you can overheat. On your Traverse, the thermostat is part of the coolant outlet/thermostat housing at the front of the engine where the upper radiator hose connects.

Assumption: 3.6L V6 uses a thermostat integrated in the front coolant outlet housing (common on this engine family).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Work only on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Do not remove the surge tank cap while hot or pressurized.
• ⚠️ Keep coolant off belts and electrical connectors; rinse spills with water.
• ⚠️ Support the SUV with jack stands if you raise it—never rely on a jack alone.
• ⚠️ Battery disconnect is not usually required, but keep tools away from the alternator power stud.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Shop rags
• 7mm socket
• 8mm socket
• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• 6" extension
• Flathead screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Torque wrench (5–30 Nm range)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly (includes thermostat) - Qty: 1
• Thermostat housing gasket/seal - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 2-3 gallons
• Hose clamp set - Qty: 1 (if clamps are weak/rusted)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (best: sit overnight).
• Place a drain pan under the radiator drain area before opening anything.
• Hose clamp pliers are pliers that lock and squeeze spring clamps safely.
• Torque wrench is a wrench that tightens bolts to an exact spec.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve any residual pressure

• Put on safety glasses and nitrile gloves.
• Slowly loosen the coolant surge tank cap by hand only after the engine is cool.

Step 2: Raise the front (if needed for access)

• Use a floor jack (rated 3-ton minimum) to lift at the front jacking point.
• Set the SUV onto jack stands (rated 3-ton minimum) and keep wheel chocks in place.

Step 3: Drain coolant to below thermostat level

• Place a drain pan (at least 2-gallon) under the radiator drain.
• Open the radiator drain (petcock) using a flathead screwdriver if needed.
• Drain until the level is below the upper radiator hose connection, then close the drain snugly.

Step 4: Remove the engine cover and air inlet duct (as needed for room)

• Lift off the engine cover by hand (it pulls up from rubber grommets).
• Loosen intake duct clamps using a 7mm socket or 8mm socket (whichever fits your clamps).
• Remove any push clips with a trim clip removal tool, then move the duct aside.

Step 5: Locate the thermostat housing

• Follow the upper radiator hose from the radiator to the engine.
• The hose connects to the thermostat/coolant outlet housing at the front of the engine.

Step 6: Disconnect the upper radiator hose from the housing

• Position the drain pan under the housing area.
• Release the hose clamp using hose clamp pliers (spring clamp) or a flathead screwdriver (worm clamp).
• Twist the hose to break it free, then pull it off the housing. Twist first; don’t pry hard.

Step 7: Unbolt and remove the thermostat housing

• Remove the housing bolts using a 10mm socket with a 3" extension.
• Lift the housing off and let remaining coolant drain into the drain pan.
• Remove the old gasket/seal and wipe the mating surface with shop rags.

Step 8: Install the new thermostat housing and gasket

• Install the new gasket/seal onto the new housing (or into its groove, depending on design).
• Set the housing in place and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final tighten with a torque wrench (5–30 Nm range): Torque to 10 Nm (89 in-lbs).

Step 9: Reconnect the upper radiator hose

• Slide the hose fully onto the housing neck.
• Reposition the clamp using hose clamp pliers (or tighten with a flathead screwdriver if worm clamp).

Step 10: Reinstall intake ducting and engine cover

• Reinstall the air inlet duct and any clips using a trim clip removal tool as needed.
• Tighten duct clamps using a 7mm socket or 8mm socket.
• Push the engine cover back onto the grommets by hand.

Step 11: Refill coolant

• Use a funnel to fill the surge tank with Dex-Cool coolant (50/50 premix) to the COLD line.
• If your engine has a coolant air bleed screw near the thermostat housing, open it using an 8mm socket, fill until coolant flows steadily, then close it.

Step 12: Bleed air and verify operation

• Start the engine and set the HVAC to MAX HEAT with the fan on medium.
• Let it idle and watch the temperature gauge. Add coolant as the level drops.
• When the thermostat opens, the upper hose will get hot and coolant may drop again—top off.
• Install the surge tank cap once the level stabilizes.

---

✅ After Repair

• 🧪 With the engine warm, check for leaks at the thermostat housing and upper hose connection.
• Verify strong cabin heat and normal temperature gauge behavior.
• After a full cool-down, recheck the surge tank level and top off to the COLD line.
• Dispose of used coolant properly—keep it away from pets and children.

---

💰 DIY vs Shop Cost

Shop Cost: $300-$650 (parts + labor)

DIY Cost: $45-$160 (parts only)

You Save: $140-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
