🔧 Grand Cherokee - Thermostat Replacement

On your Grand Cherokee’s 3.0L diesel, the thermostat is part of the coolant outlet/thermostat housing at the front of the engine. Replacing it fixes issues like slow warm-up, overheating, or a check engine light related to coolant temperature regulation.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ The electric cooling fan can turn on unexpectedly; keep hands/tools clear.
• ⚠️ Use jack stands if you raise the vehicle; never rely on a jack alone.
• ⚠️ Coolant is toxic—use a drain pan and clean spills immediately.
• 🔋 Recommended: disconnect the negative battery terminal if your hands will be near the fan area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension
• Torque wrench (5–30 Nm range)
• Hose clamp pliers
• Pick tool
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing/thermostat assembly (with seal/O-ring) - Qty: 1
• Engine coolant (Mopar OAT, 50/50 premix) - Qty: 3 gallons
• Hose clamps (if any are damaged) - Qty: 1-3

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Let the engine cool completely (best: sit overnight).
• Place a drain pan under the front of the vehicle.
• If you’ll be working close to the fan/shroud area, disconnect the battery: use a 10mm socket to remove the negative terminal and move it aside.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve cooling system pressure (cold engine only)

• Slowly loosen the coolant reservoir cap by hand to release any remaining pressure, then remove it.

Step 2: Drain enough coolant to get below the thermostat level

• Raise the front safely with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove any lower splash shield access panels as needed using a trim clip removal tool and 8mm socket.
• Open the radiator drain (if equipped) and drain coolant into a drain pan. If there’s no easy drain access, you can drain by loosening the lower radiator hose clamp with hose clamp pliers and carefully cracking the hose loose.
• Tip: Drain only what you need; less mess.

Step 3: Remove the engine cover and intake ducting (as needed for access)

• Remove the engine cover by pulling upward firmly by hand (it’s held by grommets).
• Loosen intake tube clamps using a flathead screwdriver and remove the intake duct if it blocks access to the thermostat housing.

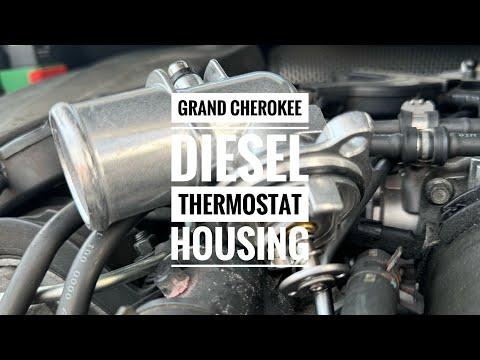

Step 4: Locate the thermostat housing

• The thermostat housing is at the front of the engine where a large coolant hose (radiator hose) connects to the engine.
• Place shop towels under the housing area to catch spills.

Step 5: Remove the radiator hose from the thermostat housing

• Use hose clamp pliers to move the hose clamp back on the hose.
• Twist the hose gently to break it free; use a pick tool carefully if it’s stuck (don’t gouge the plastic housing).
• Pull the hose off and point it upward to reduce draining.

Step 6: Remove the thermostat housing/assembly

• Remove the thermostat housing bolts using a 10mm socket and 1/4" drive ratchet.
• Pull the housing straight off. Some coolant will spill—catch it with the drain pan.
• Remove and discard the old seal/O-ring (it may stick to the engine or the housing).

Step 7: Clean the sealing surface

• Wipe the engine mating surface clean using shop towels.
• Do not use aggressive scraping that could gouge aluminum.

Step 8: Install the new thermostat housing/assembly

• Lubricate the new O-ring lightly with clean coolant, then seat it on the new housing.
• Install the housing onto the engine and start bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket, then torque with a torque wrench (5–30 Nm range): Torque to 12 Nm (9 ft-lbs).
• Tip: Even tightening prevents leaks.

Step 9: Reinstall the radiator hose and intake parts

• Slide the hose fully onto the housing and position the clamp in its original spot using hose clamp pliers.
• Reinstall the intake duct and tighten clamps with a flathead screwdriver.
• Reinstall the engine cover by pressing down firmly by hand.

Step 10: Refill and bleed the cooling system

• Close the radiator drain (if opened) by hand.
• Refill the coolant reservoir using a funnel with Engine coolant (Mopar OAT, 50/50 premix).
• Set the cabin heat to MAX heat before starting (this helps purge air).
• Start the engine and let it idle while you watch the coolant level; add coolant as the level drops.
• Continue until the engine reaches operating temperature and you feel consistent heat from the vents.
• Shut the engine off, let it cool fully, then top off to the correct mark.

---

✅ After Repair

• Check carefully for leaks around the thermostat housing and hose connection with the engine idling.
• Test drive 10–15 minutes and watch the temperature gauge for normal behavior.
• After a full cool-down, recheck the coolant level and top off if needed.
• If you had an engine light for coolant temp, clear codes with a scan tool and confirm it stays off.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$950 (parts + labor)

DIY Cost: $120-$250 (parts only)

You Save: $480-$700 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
