🔧 Wrangler - Thermostat Replacement

On your Wrangler’s 3.6L, the thermostat is part of the thermostat housing at the front of the engine. Replacing it fixes overheating, slow warm-up, or a check-engine light caused by incorrect coolant temperature regulation.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant bottle or drain coolant on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support the Jeep securely if you raise it; never rely on a jack alone.
• ⚠️ Keep coolant off belts and pulleys; clean spills immediately.
• ⚠️ Dispose of used coolant properly; it’s toxic to people and pets.
• 🔌 Battery disconnect is not required, but keep tools clear of the alternator and wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 3-gallon)
• Spill-free funnel kit
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet
• 10mm socket
• 8mm socket
• 6-inch extension
• Torque wrench (inch-pound)
• Hose clamp pliers
• Pick tool
• Flat-blade screwdriver
• Trim clip tool
• Shop towels
• Plastic scraper

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

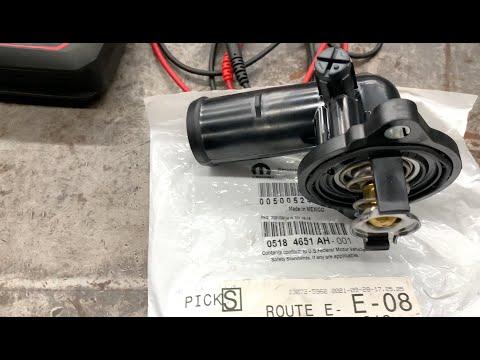

• Thermostat housing assembly (with thermostat and seal) - Qty: 1
• Engine coolant (Mopar OAT, 50/50 premix) - Qty: 2-3 gallons
• Upper radiator hose clamp - Qty: 1 (only if clamp is weak/damaged)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely.
• Set the HVAC to HEAT and the fan to LOW during bleeding later.
• If you raise the front, use floor jack and support with jack stands.
• Have your drain pan ready before loosening any hose connections.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely (cold engine only)

• Slowly loosen the coolant bottle cap by hand to confirm there is no pressure, then remove it.

Step 2: Drain enough coolant

• Place a drain pan under the radiator drain area.
• Use a flat-blade screwdriver as needed to open the radiator draincock and drain coolant until the level is below the thermostat housing.
• Close the draincock by hand (snug only; do not overtighten).

Step 3: Remove the engine cover and intake snorkel (as needed for access)

• Pull up to remove the engine cover by hand.
• Use an 8mm socket (or flat-blade screwdriver) to loosen intake hose clamps, then lift the intake tube/snorkel out of the way.

Step 4: Locate the thermostat housing

• Find the thermostat housing at the front of the engine where the upper radiator hose connects.

Step 5: Disconnect the upper radiator hose from the housing

• Use hose clamp pliers to slide the clamp back on the hose.
• Twist the hose gently to break it free, then pull it off.
• If it’s stuck, use a pick tool carefully to loosen the edge without tearing the hose.

Step 6: Remove the thermostat housing

• If an electrical connector is attached to the housing area, disconnect it by hand and use a pick tool to lift the lock tab gently if needed.
• Use a 10mm socket, ratchet, and 6-inch extension to remove the thermostat housing bolts.
• Remove the housing and gasket/seal as an assembly.

Step 7: Clean the sealing surface

• Use a plastic scraper and shop towels to clean the mating surface on the engine.
• Do not gouge the aluminum sealing surface.

Step 8: Install the new thermostat housing

• Confirm the new housing seal is seated correctly.
• Position the housing and start all bolts by hand to prevent cross-threading.
• Use a torque wrench (inch-pound) to tighten bolts evenly. An inch-pound torque wrench measures small bolt torque accurately.
• Torque to 12 Nm (106 in-lbs)

Step 9: Reconnect the hose and intake parts

• Push the upper radiator hose fully onto the housing.
• Use hose clamp pliers to return the clamp to its original position.
• Reinstall the intake tube and tighten clamps with an 8mm socket.
• Reinstall the engine cover by pressing it into place.

Step 10: Refill and bleed the cooling system

• Install a spill-free funnel kit on the coolant bottle and slowly add Mopar OAT 50/50 premix.
• Start the engine and let it idle; keep adding coolant as the level drops.
• Watch for a steady stream of warm air from the vents and for the upper radiator hose to get hot (thermostat opening).
• Once bubbles stop, shut the engine off, let it cool, then set the coolant to the MAX line.
• Reinstall the coolant bottle cap by hand.

---

✅ After Repair

• Check for leaks around the thermostat housing and upper radiator hose with the engine running.
• Test drive 10-15 minutes, then recheck the coolant level after a full cool-down.
• Verify the temperature gauge is stable and the heater blows hot air.
• If the check-engine light was on, scan for codes and confirm none return.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $70-$180 (parts only)

You Save: $180-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
