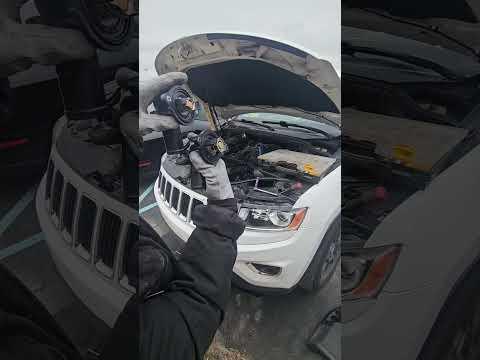

🔧 Thermostat Housing - Replacement

On your Grand Cherokee, the thermostat is built into a thermostat housing at the front of the engine where a radiator hose connects. Replacing it usually fixes overheating, slow warm-up, or thermostat-related check-engine codes, and it requires draining some coolant first.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant reservoir cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the vehicle with jack stands if you go underneath; never rely on a jack alone.
• ⚠️ Coolant is toxic to people and pets—catch every drop and clean spills immediately.
• ⚠️ If you end up unplugging electrical connectors near the front of the engine, disconnect the negative battery terminal first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Shop towels
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• Flathead screwdriver
• Hose clamp pliers
• Torque wrench (in-lb capable)
• Plastic trim tool

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly (thermostat included) - Qty: 1
• Engine coolant (OAT, 50/50 premix) - Qty: 2 gallons
• Radiator hose clamp(s) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool completely (ideally 2+ hours). Then slowly loosen the coolant reservoir cap to release any remaining pressure.
• Position a drain pan under the radiator area before opening any drains or hoses.
• Tip: Take a quick photo of hose routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Use your hands and pull the cover straight up to release it from the rubber grommets. Use a plastic trim tool if it feels stuck.

Step 2: Create working room at the front of the engine

• Use a flathead screwdriver to loosen the intake hose clamp(s).
• Use a plastic trim tool to help release any air duct clips, then move the intake ducting out of the way as needed for access.
• If you can’t clearly reach the thermostat housing bolts by hand, stop here and tell me what’s blocking access (a quick photo helps). Some setups need additional parts moved for clearance.

Step 3: Drain enough coolant to get below thermostat level

• Raise the front safely with a floor jack (rated 3-ton minimum) and set it on jack stands (rated 3-ton minimum).
• Place a drain pan (at least 3-gallon) under the radiator drain area.
• Slowly open the radiator drain (if accessible) and drain until the flow slows significantly, or until the coolant level is below the thermostat housing area.
• If you can’t access the drain, you can drain from the lower radiator hose at the thermostat housing in the next step (expect more spillage).

Step 4: Remove the radiator hose from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently to break it free, then pull it off. Use shop towels to catch coolant.
• Tip: Don’t pry hard—plastic fittings crack easily.

Step 5: Remove the thermostat housing

• Use a 10mm socket with a 3/8" drive ratchet and extensions to remove the thermostat housing bolts.
• Lift the thermostat housing off and keep the sealing surface clean.
• Use shop towels to wipe up coolant and keep debris out of the opening.

Step 6: Install the new thermostat housing

• Confirm the old and new housing match (same shape, same hose neck angle).
• Set the new thermostat housing into place by hand.
• Start all bolts by hand first to avoid cross-threading.
• Use a torque wrench (in-lb capable) to tighten the housing bolts evenly: Torque to 12 Nm (106 in-lbs).

Step 7: Reinstall the radiator hose and clamp

• Push the hose fully onto the thermostat housing.
• Use hose clamp pliers to place the clamp back in its original position.
• If the clamp feels weak or deformed, replace it with a new clamp.

Step 8: Refill coolant

• Lower the vehicle off the jack stands using the floor jack.
• Use a funnel to refill the coolant reservoir with OAT 50/50 premix to the “MAX” line (when cold).

Step 9: Bleed air from the cooling system

• Start the engine and let it idle with the heater set to HOT and the fan on LOW.
• Watch the temperature gauge and check for leaks around the housing and hose connection.
• As the engine warms up, the coolant level may drop—shut the engine off and top off the reservoir as needed using a funnel.
• Once you get steady cabin heat and the engine reaches normal operating temp without overheating, reinstall the reservoir cap.

---

✅ After Repair

• Let the engine cool completely, then recheck the coolant level and top off to the cold “MAX” line.
• Check for leaks over the next 2–3 drives (look under the front of the vehicle and around the thermostat housing).
• If the check-engine light was on for a thermostat code, it may clear after a few drive cycles; otherwise, it can be cleared with a scan tool.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $70-$220 (parts only)

You Save: $230-$780 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
