🔧 XT5 - Thermostat Replacement

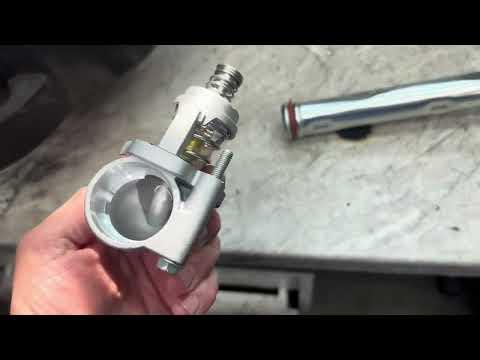

On your XT5, the thermostat is part of a coolant outlet/thermostat housing assembly. Replacing it typically involves draining some coolant, removing a few intake components for access, swapping the housing, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle safely if raised; never rely on a jack alone.
• ⚠️ Keep coolant off belts/electrical connectors; wipe spills immediately.
• ⚠️ Disconnecting the battery is recommended if you’ll unplug multiple sensors near the throttle body.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Drain pan (at least 10-quart)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/4" drive ratchet
• Socket set 7mm, 8mm, 10mm, 13mm
• Torx bit set T20, T25, T30
• Extensions 3" and 6"
• Hose clamp pliers
• Pick tool
• Trim clip removal tool
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Funnel with spill-free coolant fill adapter (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly (with seal/O-ring) - Qty: 1
• Dex-Cool coolant (premixed 50/50) - Qty: 2-3 gallons
• Hose clamp(s) (if originals are weak/damaged) - Qty: 1-2

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely.
• Open the hood and remove the coolant reservoir cap only when cool to release any residual pressure.
• If raising the front, use a floor jack and support with jack stands on solid points.
• Place a drain pan under the radiator/underbody area to catch coolant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Verify which thermostat setup you have (quick check)

• Look at the replacement part you plan to install: if it’s a plastic/metal housing with bolt holes and a hose neck, you’re replacing the correct assembly.
• If your part is only a “loose thermostat insert,” stop here—your A4- style insert setup does not apply; your XT5 typically uses the housing assembly.

Step 2: Drain coolant to below thermostat level

• Position the drain pan under the radiator/undertray area.
• Remove lower splash shield fasteners as needed using a 7mm socket and trim clip removal tool.
• Drain enough coolant so it won’t spill heavily when you open the housing. Drain only what you need.

Step 3: Remove the intake ducting for access

• Loosen the air duct clamps using an 8mm socket.
• Unclip/remove any resonator/duct mounts using a trim clip removal tool.
• Move the intake ducting aside to create working room near the front/top of the engine.

Step 4: Disconnect connectors and hoses at the thermostat housing

• Unplug any nearby electrical connector(s) by lifting the lock tab with a pick tool, then pulling the connector straight off.
• Release the coolant hose clamp(s) using hose clamp pliers.
• Twist the hose gently to break it free, then pull it off. Don’t pry on plastic necks.

Step 5: Remove the thermostat housing assembly

• Remove the housing mounting bolts using a 10mm socket with extensions as needed.
• Lift the housing away and let any remaining coolant drain into the drain pan.
• Remove the old seal/O-ring and clean the mating surface with shop towels. Do not gouge the aluminum surface.

Step 6: Install the new thermostat housing

• Lightly wet the new O-ring with clean coolant, then place it correctly on the new housing.
• Set the new housing in place and hand-start all bolts to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket and finish with a torque wrench (inch-pound): Torque to 89 in-lb (10 Nm).

Step 7: Reconnect hoses and electrical connectors

• Reinstall the coolant hose(s) fully seated, then position clamps using hose clamp pliers.
• Reconnect electrical connector(s) until they click and locks are fully seated.

Step 8: Reinstall intake ducting and shields

• Reinstall the intake ducting and tighten clamps with an 8mm socket.
• Reinstall the lower splash shield fasteners using a 7mm socket and trim clip removal tool.

Step 9: Refill and bleed the cooling system

• Refill the coolant reservoir using a funnel with spill-free coolant fill adapter (specialty) and Dex-Cool coolant (premixed 50/50).
• Start the engine and set HVAC to heat, fan medium.
• Let the engine reach operating temperature while monitoring the coolant level; top off as needed.
• Watch for steady heat from vents and no gurgling—this indicates air is purging.

---

✅ After Repair

• Check carefully for leaks around the thermostat housing and hose connections with the engine running.
• Road-test 10–15 minutes, then recheck coolant level after the engine cools completely and top off if needed.
• If you had a check engine light for coolant temperature, clear codes and confirm it doesn’t return.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $270-$790 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
