🔧 Acadia - Thermostat Replacement

On your Acadia, the thermostat controls coolant flow to keep engine temperature stable. A failed thermostat can cause overheating or a “coolant temp below thermostat regulating temp” code (often P0128). This job involves draining some coolant, removing the thermostat housing, then refilling and bleeding air from the cooling system.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; hot coolant can spray and burn you.
• ⚠️ Support the vehicle on jack stands if you raise it; never rely on a jack alone.
• ⚠️ Keep coolant off belts and electrical connectors; wipe spills immediately.
• ⚠️ Dispose of used coolant properly; it’s toxic to people and pets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Flathead screwdriver
• Hose clamp pliers
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension (3/8" drive)
• 10mm socket
• 8mm socket
• 7mm socket
• Torque wrench (inch-pound, 20-200 in-lb range)
• Torque wrench (ft-lb, 10-80 ft-lb range)
• Coolant vacuum fill tool (specialty)
• Scan tool with live data (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Engine coolant thermostat assembly (thermostat/housing) - Qty: 1
• Thermostat housing gasket / O-ring - Qty: 1
• DEX-COOL coolant (50/50 premix) - Qty: 2-3 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and let the engine cool completely.
• Put wheel chocks behind the rear wheels.
• Place a drain pan under the radiator area before opening any drains/hoses.
• If you’re using a coolant vacuum fill tool, it uses shop air to pull vacuum and refill without air pockets (it makes bleeding much easier).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Depressurize the cooling system

• With the engine fully cold, slowly loosen the coolant surge tank cap by hand to release any leftover pressure, then remove it.

Step 2: Raise the front (optional, but helps access)

• Use a floor jack (rated 3-ton minimum) to lift the front safely.
• Set the vehicle onto jack stands (rated 3-ton minimum) and keep wheel chocks in place.

Step 3: Drain coolant to below thermostat level

• Position a drain pan (at least 3-gallon) under the radiator drain area.
• Use a flathead screwdriver or 7mm socket (varies by drain design) to open the radiator drain and drain coolant until the level is below the thermostat housing.
• If your drain is hard to access, use hose clamp pliers to release the lower radiator hose clamp and carefully crack the hose loose to drain into the pan.
• Tip: Save clean coolant only if new.

Step 4: Remove the engine cover and air intake duct

• Pull up on the engine cover by hand to release it from its grommets.
• Use an 8mm socket to loosen the air intake duct clamps.
• Disconnect any intake duct clips using a trim clip removal tool, then remove the duct to create working room.

Step 5: Locate the thermostat housing and clear access

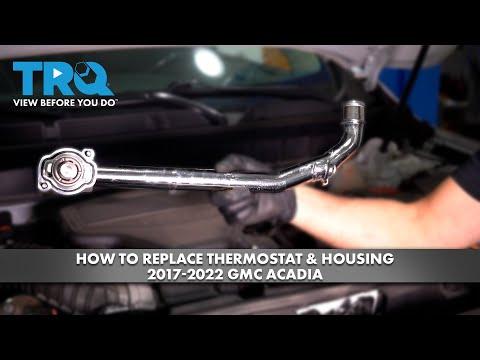

• The thermostat on your Acadia is part of the thermostat housing/coolant outlet assembly at the front/top area of the engine where the upper radiator hose routes into the engine.
• Use a flashlight (from your phone is fine) and follow the upper radiator hose to the housing.
• If an electrical connector blocks access, release the lock and unplug by hand (do not pull on wires).

Step 6: Disconnect coolant hoses from the thermostat housing

• Use hose clamp pliers to compress the spring clamp(s) and slide them back on the hose.
• Twist the hose gently to break it loose, then pull it off the housing.
• Keep the drain pan underneath—more coolant will come out.

Step 7: Remove the thermostat housing

• Use a 10mm socket, 3/8" drive ratchet, and 6" extension to remove the thermostat housing bolts.
• Remove the housing and thermostat assembly from the engine.
• Clean the sealing surface with a clean rag (do not gouge the metal).

Step 8: Install the new thermostat/housing and gasket

• Install the new thermostat housing gasket / O-ring onto the new housing (or confirm it’s pre-installed correctly).
• Position the new thermostat housing onto the engine.
• Start all bolts by hand to avoid cross-threading.
• Use a torque wrench (inch-pound, 20-200 in-lb range) and 10mm socket to tighten evenly: Torque to 89 in-lb (10 Nm).

Step 9: Reconnect hoses and reinstall intake parts

• Reinstall the coolant hose(s) fully seated, then use hose clamp pliers to move the clamps back into place.
• Reinstall the air intake duct and tighten clamps using an 8mm socket.
• Reinstall the engine cover by pressing it down into the grommets.

Step 10: Refill and bleed the cooling system

• If using a coolant vacuum fill tool (specialty), follow the tool instructions to pull vacuum and refill with DEX-COOL coolant (50/50 premix).
• If filling normally, use a funnel and slowly fill the surge tank with DEX-COOL coolant (50/50 premix) to the “FULL COLD” line.
• Start the engine and set HVAC to hottest temp; let it idle.
• Watch the coolant level and add as needed (do not let it run empty).
• When the radiator fan cycles and you feel steady heat from the vents, shut the engine off and let it cool completely, then recheck level and top off.

Step 11: Verify thermostat operation with live data

• Plug in a scan tool with live data (specialty) and monitor engine coolant temperature while warming up.
• Confirm the temperature rises smoothly and stabilizes normally (no rapid spikes, no overheating).

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine running.
• After your first drive and full cool-down, recheck the surge tank level and top off to “FULL COLD.”
• Clear any stored codes (like P0128) using a scan tool with live data (specialty) and confirm they do not return.
• If it still runs hot or has no cabin heat, you likely have air trapped—re-bleed and recheck coolant level.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$220 (parts only)

You Save: $130-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
