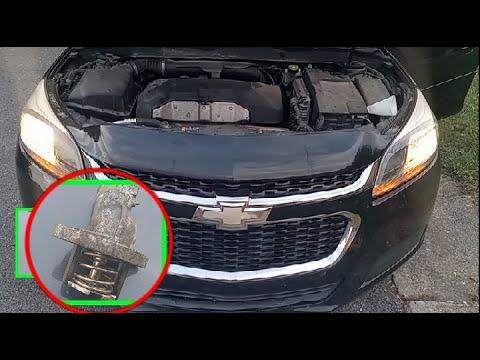

🔧 Malibu - Thermostat Replacement

The thermostat controls coolant flow to keep your engine at the right temperature. When it sticks open or closed, you can get poor heat, overheating, or a check-engine light. On your Malibu, the thermostat is part of the coolant outlet/thermostat housing assembly.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 1.5L turbo uses a thermostat/housing assembly at the engine coolant outlet.

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant cap on a hot engine; you can get burned.
• ⚠️ Support the car with jack stands if you raise it; never rely on a jack.
• ⚠️ Coolant is toxic; keep it off skin and away from pets.
• ⚠️ Disconnecting the negative battery cable is recommended if you’ll unplug sensors near the work area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 1/4" drive ratchet
• 3/8" drive ratchet
• 6" extension
• 10mm socket
• 8mm socket
• Torque wrench (inch-pound)
• Hose clamp pliers
• Pliers
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing/thermostat assembly (with seal/gasket) - Qty: 1
• Dex-Cool coolant (50/50 premix) - Qty: 1-2 gallons
• Hose clamps (optional, if originals are weak) - Qty: 2
• Distilled water (only if using concentrate coolant) - Qty: 1 gallon

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and let the engine cool fully (at least 2 hours).
• 🧰 Put wheel chocks behind the rear wheels.
• 🧰 Set your HVAC to full heat before shutdown if possible; it helps coolant circulate during bleeding later.
• 🧰 If you choose to disconnect the battery: use a 10mm socket to remove the negative cable and keep it from touching the terminal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Relieve pressure safely

• Make sure the engine is cool.
• Place a shop rag over the coolant surge tank cap.
• Slowly loosen the cap to release any leftover pressure, then remove it.

Step 2: Raise the front (if needed for access)

• Use a floor jack (rated 2-ton minimum) to lift the front at the approved center jack point.
• Set the car onto jack stands (rated 2-ton minimum).
• Keep wheel chocks in place.

Step 3: Drain coolant into a clean pan

• Place a drain pan (at least 2-gallon) under the radiator drain area.
• If an undertray/splash shield blocks access, remove it using a trim clip removal tool and 8mm socket.
• Open the radiator drain (if equipped) using a pliers or flat-blade screwdriver as needed, and drain until the level is below the thermostat housing.
• Tip: Save clean coolant for reuse only if fresh.

Step 4: Remove the intake ducting for working room

• Loosen intake hose clamps using an 8mm socket or flat-blade screwdriver.
• Unclip/remove the air intake duct and set it aside.
• If any wiring connectors block access, unplug them by pressing the lock tab with your fingers (don’t pull on wires).

Step 5: Locate the thermostat housing and prep for spills

• Find the thermostat housing where a large radiator hose meets the engine.
• Put shop rags under the housing area to catch drips.
• Position the drain pan under the work area if possible.

Step 6: Remove the hose(s) from the thermostat housing

• Compress spring clamps using hose clamp pliers and slide them back on the hose.
• Twist the hose gently to break it loose, then pull it off.
• Tip: Twist first; pulling straight can tear hoses.

Step 7: Remove the thermostat housing assembly

• Remove the thermostat housing bolts using a 10mm socket, ratchet, and extension.
• Lift the housing off carefully; more coolant may spill.
• Remove and discard the old seal/gasket if it stayed on the engine.

Step 8: Clean the sealing surface

• Wipe the engine sealing surface with shop rags until clean and dry.
• Do not gouge the surface; no sanding discs.

Step 9: Install the new thermostat housing

• Confirm the new seal/gasket is seated correctly on the new housing.
• Set the housing in place and start all bolts by hand.
• Tighten evenly using a 10mm socket.
• Final tighten using a torque wrench (inch-pound): Torque to 10 N·m (89 lb-in).

Step 10: Reinstall hoses and intake parts

• Reinstall coolant hose(s) fully onto the housing fitting.
• Reposition clamps using hose clamp pliers.
• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.
• Reconnect any electrical connectors you unplugged.

Step 11: Reinstall undertray and lower the car

• Reinstall the splash shield using a trim clip removal tool and 8mm socket.
• Lift slightly with the floor jack (rated 2-ton minimum), remove jack stands, and lower the car.

Step 12: Refill coolant and bleed air

• Fill the surge tank slowly using a funnel and Dex-Cool coolant (50/50 premix) to the correct level.
• Install the surge tank cap.
• Start the engine and set heat to maximum; let it idle.
• Watch the temperature gauge and check for leaks around the housing and hoses.
• After the radiator fan cycles at least once, shut the engine off and let it cool completely.
• Recheck and top off the surge tank using a funnel.

---

✅ After Repair

• ✅ Test drive 10-15 minutes while watching the temperature gauge.
• ✅ Park, let it cool, and recheck coolant level again (it often drops after the first drive).
• ✅ Inspect for seepage around the thermostat housing and hose connections.
• ✅ If you had a check-engine light for thermostat temperature, it may clear after a few drive cycles; a scan tool can clear it immediately.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
