🔧 Wrangler - Thermostat Replacement

Your Wrangler’s thermostat controls engine temperature by opening and closing coolant flow to the radiator. If it’s stuck open you may get slow warm-up and weak heat; if it’s stuck closed you can overheat. On your Wrangler, the thermostat is built into the thermostat housing assembly at the front of the engine and is replaced as a unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the radiator/pressure cap on a hot engine; hot coolant can cause severe burns.
• ⚠️ Support the Jeep securely if you raise it; never work under a vehicle held only by a jack.
• ⚠️ Coolant is toxic; keep away from kids and pets and clean spills immediately.
• ⚠️ Let the engine cool fully before draining coolant.
• 🔋 Battery disconnect is not required, but keep tools clear of the fan and belt area.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 10-quart)
• Funnel
• Shop towels
• Plastic trim clip tool
• Flat-blade screwdriver
• Hose clamp pliers
• Ratchet (3/8" drive)
• Socket set (metric)
• 10mm socket
• 8mm socket
• 6" extension (3/8" drive)
• Torque wrench (3/8" drive)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat housing assembly (with thermostat and seal) - Qty: 1
• Engine coolant (Mopar OAT 10-year/150k, purple) premixed 50/50 - Qty: 2-3 gallons

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, set the parking brake, and chock the wheels.
• 🧊 Let the engine cool completely (ideally 2+ hours) before touching any cooling system parts.
• 🧰 Set a drain pan under the radiator area and have shop towels ready.
• 📌 A “torque wrench” is a tool that tightens bolts to an exact setting so parts seal properly without cracking.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (optional, but helps access)

• Place wheel chocks behind the rear tires.
• Use a floor jack (rated 3-ton minimum) to lift the front safely, then support with jack stands (rated 3-ton minimum).

Step 2: Drain enough coolant to get below thermostat level

• Place the drain pan (at least 10-quart) under the radiator.
• Slowly loosen the coolant pressure cap with a shop towel over it to release any residual pressure.
• Open the radiator drain (petcock) if accessible, using a flat-blade screwdriver if needed, and drain 1–2 gallons (enough so the level is below the thermostat housing).
• Keep the drain pan centered; coolant can stream out fast.

Step 3: Remove the engine cover/air intake parts (as needed for access)

• If equipped, remove any plastic push-pins using a plastic trim clip tool.
• Loosen intake tube clamps with an 8mm socket and ratchet (3/8" drive), then move the tube/air box aside if it blocks access to the thermostat housing.

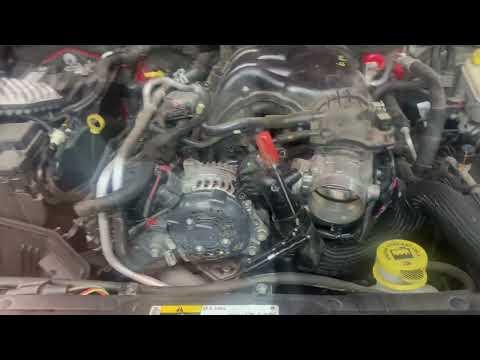

Step 4: Locate the thermostat housing

• From the front of the engine bay, find the upper radiator hose and follow it to the front of the engine; it connects to the thermostat housing.
• Use a flashlight (if you have one) to clearly see the housing and bolts.

Step 5: Remove the upper radiator hose from the thermostat housing

• Use hose clamp pliers to compress the spring clamp and slide it back on the hose.
• Twist the hose gently by hand to break it free, then pull it off the thermostat housing.
• Catch any remaining coolant with the drain pan and wipe spills with shop towels.

Step 6: Remove the thermostat housing assembly

• Remove the housing mounting bolts using a 10mm socket, ratchet (3/8" drive), and 6" extension (3/8" drive).
• Lift the thermostat housing off carefully; more coolant may spill, so keep the drain pan under the area.
• Clean the mating surface (where the housing sits) using shop towels; do not gouge the metal.

Step 7: Install the new thermostat housing

• Confirm the new housing has the seal installed and seated evenly.
• Set the new housing in place by hand, then start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket and ratchet (3/8" drive).
• Final-tighten with a torque wrench (3/8" drive): Torque to 12 Nm (106 in-lbs).
• Snug first, torque last—prevents leaks and cracking.

Step 8: Reinstall the hose and any intake parts

• Push the hose fully onto the thermostat housing.
• Use hose clamp pliers to return the clamp to its original position over the hose connection.
• Reinstall the intake tube/air box and tighten clamps using an 8mm socket and ratchet (3/8" drive).
• Reinstall any push-pins using a plastic trim clip tool to align them.

Step 9: Refill coolant

• Close the radiator drain (petcock) using a flat-blade screwdriver if required (snug only).
• Refill with Engine coolant (Mopar OAT 10-year/150k, purple) premixed 50/50 using a funnel.
• Fill the radiator/pressure bottle as applicable, then set the level to the “FULL COLD” mark.

Step 10: Bleed air from the cooling system

• Start the engine and let it idle with the cap off initially (watch the level).
• Turn the cabin heat to HOT and fan to medium to help coolant circulate through the heater core.
• As the engine warms up, add coolant as the level drops using a funnel.
• When you see steady flow/level stabilization and warm heat from the vents, install the cap.
• Let it reach normal operating temperature and check for leaks around the housing and hose.

---

✅ After Repair

• 🔍 Recheck coolant level after the first full heat-soak cycle: let it cool completely, then top off to “FULL COLD.”
• 🧪 Test drive 10–15 minutes and watch the temperature gauge for normal operation.
• 🛑 Inspect for leaks at the thermostat housing and hose clamp after the drive.
• ♻️ Dispose of old coolant properly (most parts stores accept it).

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 (parts + labor)

DIY Cost: $60-$180 (parts only)

You Save: $170-$590 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
