🔧 Impala - Thermostat Replacement

On your Impala, the thermostat controls coolant flow to keep engine temperature stable. Replacing it usually means removing the thermostat housing (often serviced as an assembly), swapping the thermostat/seal, then refilling and bleeding the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Never open the coolant tank cap on a hot engine; hot coolant can spray out.
• ⚠️ Support the car with jack stands if you raise it; never rely on a jack alone.
• ⚠️ Coolant is toxic—keep away from kids/pets and clean spills immediately.
• ⚠️ Let the engine cool fully before draining coolant.
• 🔋 Battery disconnect is not usually required, but disconnect the negative cable if you’ll be working near the radiator fan or main wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 3-gallon)
• Funnel
• Trim clip removal tool
• Flat-blade screwdriver
• 8mm socket
• 10mm socket
• 13mm socket
• 1/4" ratchet
• 3/8" ratchet
• 3" extension
• 6" extension
• Hose clamp pliers
• Torque wrench (inch-pound or small Nm range)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat (engine coolant thermostat) - Qty: 1
• Thermostat housing gasket / seal - Qty: 1
• Dex-Cool coolant (premixed 50/50) - Qty: 2-3 gallons
• Distilled water - Qty: 1 gallon

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (overnight is best).
• Set HVAC to heat before the final warm-up (this helps purge air).
• If raising the front, use a floor jack and place jack stands under the proper front lift/support points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm what you’re replacing (thermostat vs housing assembly)

• Open the hood and locate the thermostat area (it’s part of the coolant outlet/thermostat housing on the 3.6L).
• If your new part is a complete housing, you’ll swap the whole unit. If it’s only the thermostat, you’ll open the housing and install the thermostat + seal.
• Take a photo before unplugging anything.

Step 2: Relieve pressure and drain coolant

• With the engine fully cold, slowly loosen the coolant surge tank cap by hand to relieve any leftover pressure.
• Place a drain pan (at least 3-gallon) under the radiator drain area.
• If equipped with an underbody shield, remove fasteners using a 10mm socket and a trim clip removal tool.
• Open the radiator drain (petcock) using a flat-blade screwdriver (if applicable) and drain coolant.

Step 3: Remove the intake duct and engine cover (as needed for access)

• Remove the engine cover by pulling upward (if installed).
• Loosen intake duct clamps using an 8mm socket or flat-blade screwdriver.
• Disconnect any intake tube clips/sensors carefully and move the ducting out of the way.

Step 4: Remove hoses from the thermostat housing

• Position the drain pan under the housing area (more coolant will spill).
• Use hose clamp pliers to compress the clamp, slide it back, then twist the hose to break it loose and pull it off.
• Twist first—don’t just yank the hose.

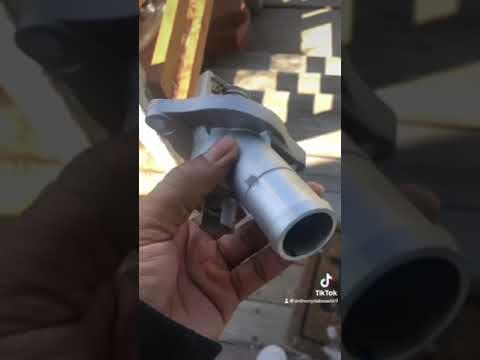

Step 5: Remove the thermostat housing / outlet

• Unplug any electrical connector(s) on/near the housing using your fingers (press the lock tab first).
• Remove the thermostat housing bolts using a 10mm socket with a 3" extension (some fasteners may require a 13mm socket depending on bracketry).
• Carefully pull the housing away and keep track of the gasket/seal.

Step 6: Install the new thermostat and seal (or new housing assembly)

• Clean the mating surfaces using shop towels. Do not gouge aluminum surfaces.
• Install the new gasket/seal in the correct groove and orientation.
• Set the housing/thermostat in place by hand and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket, then Torque to OEM specification (use service information for your Impala) with a torque wrench.

Step 7: Reinstall hoses and intake parts

• Reinstall coolant hoses fully seated, then reposition clamps using hose clamp pliers.
• Reconnect electrical connectors until they click.
• Reinstall the intake ducting and tighten clamps using an 8mm socket.
• Reinstall the underbody shield (if removed) using a 10mm socket and trim clip removal tool.

Step 8: Refill coolant and purge air

• Close the radiator drain using a flat-blade screwdriver (if used).
• Refill the surge tank slowly using a funnel with Dex-Cool coolant (premixed 50/50).
• Start the engine and let it idle with the heater set to HOT.
• Watch the temperature gauge. As the thermostat opens, coolant level may drop—top off as needed.
• Shut off, let it cool, and recheck level again. Repeat until the level stabilizes at the correct mark.

---

✅ After Repair

• Check for leaks around the thermostat housing and hose connections with the engine idling.
• Test drive 10–15 minutes and confirm normal operating temperature and good cabin heat.
• After the car cools fully, recheck coolant level and top off if needed.
• If you had a check engine light (common code is thermostat performance), clear codes with a scan tool and confirm it does not return.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (parts + labor)

DIY Cost: $60-$250 (parts only)

You Save: $100-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
