🔧 Escape - Thermostat Replacement

Replacing the thermostat on your Escape means draining some coolant, removing the thermostat housing, installing a new thermostat/seal assembly, then refilling and bleeding the cooling system. The thermostat controls engine temperature, so a stuck thermostat can cause overheating, poor cabin heat, or a check engine light.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on the cooling system when the engine is completely cold. Hot coolant can cause severe burns.
• ⚠️ Wear safety glasses and gloves because coolant is toxic and slippery.
• ⚠️ Keep coolant away from pets and children. It tastes sweet but is poisonous.
• ⚠️ Disconnecting the battery is recommended because you will be working near electrical connectors and coolant hoses.
• ⚠️ Your Escape uses a pressurized cooling system. Never remove the coolant reservoir cap when hot.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 1/4-inch ratchet
• 3/8-inch ratchet
• 6-inch extension
• Flat-blade screwdriver
• Hose clamp pliers
• Trim clip removal tool
• Torque wrench rated 5-50 Nm
• Coolant drain pan
• Funnel
• Cooling system vacuum fill tool (specialty)
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermostat with housing seal - Qty: 1
• Engine coolant, orange-compatible premix - Qty: 1-2 gallons
• Thermostat housing gasket or O-ring - Qty: 1
• Coolant hose clamps - Qty: 2 if damaged
• Distilled water - Qty: 1 gallon if using concentrated coolant

---

📋 Before You Begin

• Park your Escape on level ground and let the engine cool for at least 3-4 hours.
• Set the parking brake and place wheel chocks behind the rear wheels.
• Open the hood and remove the coolant reservoir cap only when the engine is cold.
• Disconnect the negative battery cable using a 10mm socket. A negative cable is the black battery cable marked with a minus symbol.
• If using a floor jack, lift only at approved front lift points and support the vehicle with jack stands before going underneath.
• A cooling system vacuum fill tool is a specialty tool that uses shop air or hand vacuum to refill the system with fewer trapped air pockets.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the Lower Splash Shield

• Use a floor jack rated 3-ton minimum to raise the front of your Escape if more room is needed.
• Support the vehicle with jack stands rated 3-ton minimum.
• Use a trim clip removal tool and 8mm socket to remove the lower splash shield fasteners.
• Set the shield and fasteners aside in order.
• Take photos before removing clips.

Step 2: Drain the Coolant

• Place a coolant drain pan under the lower radiator area.
• Use a flat-blade screwdriver if the radiator drain plug is accessible, and slowly open it.
• If the drain plug is not accessible, use hose clamp pliers to release the lower radiator hose clamp and carefully slide the hose back enough to drain coolant.
• Let the coolant drain until the flow slows to a drip.
• Close the drain plug by hand, then snug it gently with the flat-blade screwdriver if needed. Do not overtighten plastic parts.

Step 3: Remove Intake Ducting for Access

• Use a flat-blade screwdriver to loosen the air intake duct clamp near the air box.
• Use a flat-blade screwdriver to loosen the clamp near the turbo inlet side if needed.
• Use a 10mm socket to remove any air box or duct retaining bolt that blocks access.
• Lift the ducting out gently and place it aside.
• Do not force plastic ducting.

Step 4: Locate the Thermostat Housing

• Follow the large lower radiator hose toward the engine. It connects near the thermostat housing.
• The thermostat housing is the plastic or aluminum outlet where coolant hoses meet the engine.
• Use shop towels around the area to catch leftover coolant.

Step 5: Disconnect the Coolant Hose

• Use hose clamp pliers to compress the spring clamp on the thermostat housing hose.
• Slide the clamp back on the hose.
• Twist the hose gently by hand to break it loose, then pull it off the housing.
• If stuck, use a flat-blade screwdriver carefully between the hose and housing lip without cutting the hose.
• Twist first, then pull.

Step 6: Disconnect Any Electrical Connector or Bracket

• If a sensor connector or wiring retainer is attached to the housing area, release it by hand.
• Use a trim clip removal tool to release wiring retainers without breaking them.
• Use a 10mm socket to remove any small bracket that blocks thermostat housing bolts.

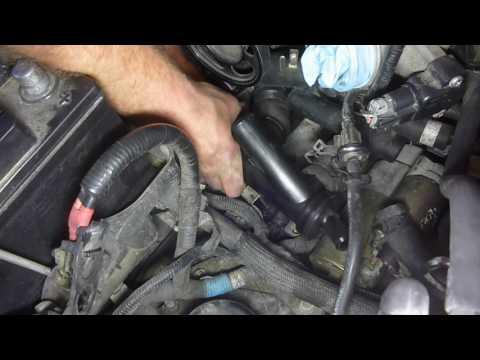

Step 7: Remove the Thermostat Housing

• Use a 8mm socket, 10mm socket, 1/4-inch ratchet, and 6-inch extension to remove the thermostat housing bolts.
• Remove the bolts evenly, a little at a time, so the housing does not bind.
• Pull the thermostat housing straight away from the engine.
• Expect more coolant to spill into the drain pan.

Step 8: Clean the Sealing Surface

• Use shop towels to wipe the engine-side sealing surface clean.
• Do not scrape aggressively. The sealing surface must stay smooth.
• Use a flat-blade screwdriver only to gently lift old O-ring material if it is stuck.
• Make sure no gasket pieces fall into the coolant passage.

Step 9: Install the New Thermostat

• Install the new thermostat with housing seal in the same orientation as the old one.
• Make sure the thermostat housing gasket or O-ring sits flat in its groove.
• Start all bolts by hand first to avoid cross-threading.
• Use a 10mm socket and 1/4-inch ratchet to snug the bolts evenly.
• Use a torque wrench rated 5-50 Nm to tighten the thermostat housing bolts to Torque to 10 Nm (89 in-lbs).
• Hand-start every bolt first.

Step 10: Reconnect the Hose and Brackets

• Push the coolant hose fully onto the thermostat housing nipple by hand.
• Use hose clamp pliers to move the clamp back to its original position.
• Use a 10mm socket to reinstall any removed bracket.
• Use a torque wrench rated 5-50 Nm to tighten small bracket bolts to Torque to 10 Nm (89 in-lbs).
• Reconnect any electrical connector by hand until it clicks.

Step 11: Reinstall Intake Ducting

• Set the intake ducting back into position.
• Use a flat-blade screwdriver to tighten the intake hose clamps until snug.
• Use a 10mm socket to reinstall any duct or air box retaining bolt.
• Use a torque wrench rated 5-50 Nm to tighten air box fasteners to Torque to 8 Nm (71 in-lbs).

Step 12: Refill the Cooling System

• Use a cooling system vacuum fill tool (specialty) for best results, following the tool instructions.
• If filling without a vacuum tool, use a funnel to slowly add engine coolant, orange-compatible premix into the coolant reservoir.
• Fill to the COLD FILL line on the reservoir.
• If using concentrate, mix coolant with distilled water to the correct 50/50 ratio before filling.
• Install the coolant reservoir cap by hand.

Step 13: Reconnect the Battery

• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the terminal until it cannot rotate by hand.
• Do not overtighten the battery terminal.

Step 14: Warm Up and Bleed Air

• Start your Escape and let it idle with the heater set to full hot.
• Watch the temperature gauge. It should rise normally and stay near the middle.
• Check for leaks around the thermostat housing using a flashlight if available.
• Once the cooling fan cycles on and off, shut the engine off and let it cool completely.
• After cooling, remove the reservoir cap by hand and top off to the COLD FILL line with the funnel.

Step 15: Reinstall the Lower Splash Shield

• Use a trim clip removal tool to align splash shield clips.
• Use an 8mm socket to reinstall the lower splash shield fasteners.
• Use the floor jack rated 3-ton minimum to raise the vehicle slightly, remove the jack stands rated 3-ton minimum, and lower it safely.

---

✅ After Repair

• ✅ Road test your Escape for 10-15 minutes while watching the temperature gauge.
• ✅ Verify the heater blows hot air at idle and while driving.
• ✅ Recheck coolant level after the engine fully cools.
• ✅ Inspect the thermostat housing, hose connection, and radiator drain area for leaks.
• ✅ If a check engine light was present, it may clear after several drive cycles, but a scan tool can clear stored thermostat-related codes after repair.
• ✅ Dispose of old coolant properly. In Panipat, use an authorized automotive fluid recycler or repair facility; do not pour coolant on the ground or into drains.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$650 USD equivalent (parts + labor)

DIY Cost: $60-$180 USD equivalent (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
