🔧 Forester - Thermostat Replacement

On your Forester, the “thermostat” function is typically handled by an electronic Thermo Control Valve (TCV) mounted on top of the engine, not a traditional thermostat in the lower radiator hose. Replacing it involves draining some coolant, swapping the valve assembly and seals, then bleeding air out of the cooling system.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Only work on a fully cool engine; hot coolant can cause severe burns.
• ⚠️ Support the vehicle on jack stands if you go underneath; never rely on a jack alone.
• ⚠️ Coolant is toxic; keep it away from kids/pets and dispose of it properly.
• ⚠️ Disconnecting the battery is recommended to prevent accidental electrical damage when unplugging the TCV.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Drain pan (at least 2-gallon)
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 12mm socket
• Torque wrench (inch-pound or small Nm capable)
• Hose clamp pliers
• Trim clip remover
• Flathead screwdriver
• Pick tool
• Funnel
• Spill-free coolant funnel kit (specialty)
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Thermo control valve assembly (thermostat valve) - Qty: 1
• Thermo control valve gasket/O-ring seal(s) - Qty: 1
• Engine coolant (Subaru-approved long-life coolant) - Qty: 2 gallons
• Hose clamp(s) (replacement if worn) - Qty: 1-3

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely (overnight is best).
• Set the HVAC to full heat before shutdown if you can; this helps purge air later.
• Disconnect the battery negative terminal using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and use a 10mm socket to loosen the negative battery terminal clamp.
• Remove the negative cable and keep it from springing back to the post.

Step 2: Raise the front and remove the lower cover

• Lift the front of your Forester with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Place a drain pan (at least 2-gallon) under the radiator area.
• Remove the engine under cover fasteners using a trim clip remover and 10mm socket, then set the cover aside.

Step 3: Drain coolant (enough to get below the valve level)

• Position the drain pan (at least 2-gallon) directly under the radiator drain area.
• Open the radiator drain carefully (use a flathead screwdriver only if your drain style requires it; some drains are hand-turn).
• Drain until flow slows significantly, then close the drain. Save clean coolant only if fresh.

Step 4: Remove the air intake ducting for access

• Loosen intake hose clamps using a flathead screwdriver.
• Remove any intake duct bolts/clips using a 10mm socket and trim clip remover.
• Lift the intake ducting out and set it aside.

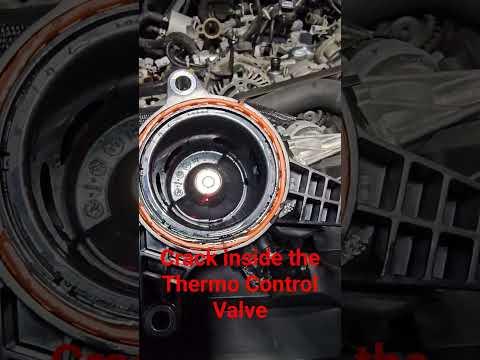

Step 5: Locate the Thermo Control Valve (TCV)

• The TCV sits on top/front area of the engine with multiple coolant hoses and an electrical connector.
• Lay shop towels around the work area to catch spills.

Step 6: Disconnect the electrical connector(s)

• Release the connector lock tab using a pick tool if needed (gently), then unplug by hand.
• If any harness clips are attached, release them using a trim clip remover.

Step 7: Remove coolant hoses from the valve

• Use hose clamp pliers to compress the spring clamps and slide them back on the hose.
• Twist the hose gently to break it free, then pull it off the valve nipple.
• Expect some coolant spillage; keep the drain pan and shop towels ready.

Step 8: Remove the Thermo Control Valve assembly

• Remove the mounting bolts using a 10mm socket with a 3/8" drive ratchet and 3/8" drive extension as needed.
• Lift the valve straight up/off. Remove the old gasket/O-ring.
• Clean the sealing surface using shop towels only. Do not gouge the aluminum.

Step 9: Install the new Thermo Control Valve

• Install the new gasket/O-ring onto the new valve (or onto the engine side, depending on design).
• Set the valve in place and start all bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a 10mm socket.
• Final tighten using a torque wrench: Torque to 7.5 Nm (66 in-lbs).

Step 10: Reconnect hoses and electrical connector(s)

• Push hoses fully onto their fittings by hand.
• Use hose clamp pliers to reposition clamps to their original locations.
• Plug electrical connector(s) back in until they click.

Step 11: Reinstall intake ducting

• Reinstall the intake ducting and any bolts using a 10mm socket.
• Tighten hose clamps using a flathead screwdriver (snug, not crushing the plastic).

Step 12: Refill and bleed air from the cooling system

• Lower the vehicle if you prefer, or keep it safely supported if access is better.
• Reconnect the negative battery terminal using a 10mm socket.
• Install a spill-free coolant funnel kit (specialty) on the radiator fill point (or the appropriate fill location) and fill with Subaru-approved long-life coolant.
• Start the engine and set HVAC to the hottest temp with the fan on low.
• Let it idle and watch for air bubbles; keep the funnel level topped up.
• When the radiator fans cycle and cabin heat is hot/steady, shut the engine off and let it cool, then recheck level and top off.

Step 13: Reinstall the under cover

• Reinstall the engine under cover using a 10mm socket and trim clip remover.
• Remove tools, lower the vehicle fully, and remove wheel chocks.

---

✅ After Repair

• Start your Forester and let it reach operating temperature; confirm steady heat from the vents.
• Check for leaks around the valve, hose connections, and under the vehicle.
• Recheck coolant level after the first full cool-down (later the same day or next morning).
• If the check engine light is on, read/clear codes with a scan tool; if codes return, stop and recheck connectors and coolant level.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,250 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $470-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
