🔧 Tacoma - Rear Door Lock Actuator Replacement

Your Tacoma is a standard cab, so it does not have rear passenger doors. If you mean the tailgate lock actuator or an aftermarket power tailgate lock kit actuator, the repair involves removing the tailgate access panel, disconnecting the lock linkage, replacing the actuator, and verifying the lock/unlock movement.

Assumption: This guide covers the tailgate lock actuator, since your Tacoma does not have rear doors.

Difficulty Level: Beginner | Estimated Time: 0.5-1.0 hour

---

⚠️ Safety & Precautions

• ⚠️ Park your Tacoma on level ground and set the parking brake before working around the tailgate.
• ⚠️ Support the tailgate fully open so it does not swing or drop while you work.
• ⚠️ Disconnect the negative battery cable if the actuator is electrically powered. This prevents short circuits while unplugging connectors.
• ⚠️ Wear safety glasses and gloves because tailgate sheet metal edges can be sharp.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 1/4-inch drive ratchet
• Phillips #2 screwdriver
• Flat trim removal tool
• Needle-nose pliers
• Small flathead screwdriver
• Torque wrench inch-pound
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Tailgate lock actuator - Qty: 1
• Tailgate access panel clips - Qty: As needed
• Electrical connector dielectric grease - Qty: 1 small tube

---

📋 Before You Begin

• 📋 Lower the tailgate completely and make sure it is stable.
• 📋 Remove all cargo near the tailgate so you have room to work.
• 📋 If your actuator is wired to power locks or an aftermarket remote lock kit, disconnect the negative battery cable with a 10mm socket.
• 📋 A trim removal tool is a plastic pry tool used to lift panels without scratching paint or breaking clips.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect Battery Power

• Use a 10mm socket and 1/4-inch drive ratchet to loosen the negative battery terminal clamp.
• Move the negative cable aside so it cannot spring back onto the battery post.
• Black cable is negative.

Step 2: Remove the Tailgate Access Panel

• Open the tailgate fully.
• Use a Phillips #2 screwdriver or 10mm socket, depending on your panel fasteners, to remove the tailgate access panel screws or bolts.
• Use a flat trim removal tool to gently lift the access panel if it sticks to the tailgate.
• Set the panel and fasteners in a small tray so nothing gets lost.
• Torque on installation: 4-6 Nm (35-53 in-lbs)

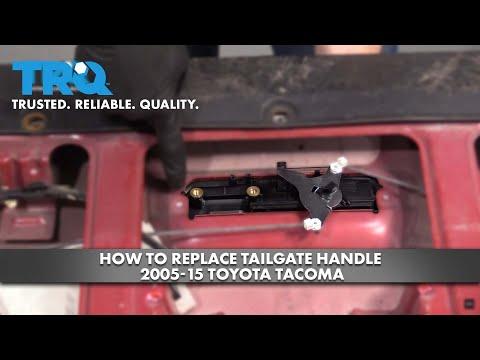

Step 3: Locate the Lock Actuator and Linkage

• Look inside the tailgate near the handle and latch rods.
• The actuator is the small electric motor unit connected to the lock linkage. The linkage is the metal rod that moves the lock or latch mechanism.
• Use a flashlight if needed, but do not place fingers inside the latch while testing movement.

Step 4: Disconnect the Electrical Connector

• Use your fingers to press the connector release tab and unplug the actuator.
• If the connector is tight, use a small flathead screwdriver to gently lift the lock tab.
• Do not pull on the wires. Pull on the plastic connector body only.
• Go slow with old plastic.

Step 5: Disconnect the Lock Rod

• Use needle-nose pliers to rotate the small plastic retaining clip away from the lock rod.
• Slide the rod out of the actuator lever.
• Take a quick photo before removal so you can match the same rod position during installation.

Step 6: Remove the Old Actuator

• Use a 10mm socket and 1/4-inch drive ratchet to remove the actuator mounting bolts.
• Hold the actuator with one hand while removing the last bolt so it does not fall inside the tailgate.
• Remove the actuator from the tailgate opening.

Step 7: Install the New Actuator

• Place the new tailgate lock actuator in the same position as the old one.
• Use a 10mm socket to start all mounting bolts by hand first.
• Use a torque wrench inch-pound to tighten the actuator mounting bolts.
• Torque to 5-7 Nm (44-62 in-lbs)
• Start bolts by hand first.

Step 8: Reconnect the Lock Rod

• Slide the lock rod back into the actuator lever by hand.
• Use needle-nose pliers to rotate the plastic retaining clip back over the rod.
• Make sure the rod cannot pop out when moved.

Step 9: Reconnect the Electrical Connector

• Apply a small amount of electrical connector dielectric grease to the connector seal if available.
• Push the connector into the actuator until it clicks.
• Gently tug the connector body by hand to confirm it is locked in place.

Step 10: Test Before Reassembly

• Use a 10mm socket and 1/4-inch drive ratchet to reconnect the negative battery cable.
• Torque to 5 Nm (44 in-lbs)
• Operate the lock switch or remote lock kit and watch the actuator move.
• Manually open and close the tailgate handle to confirm the latch still moves freely.
• If movement is weak or binding, disconnect the battery again and check the rod routing.

Step 11: Reinstall the Tailgate Access Panel

• Position the access panel back onto the tailgate.
• Use a Phillips #2 screwdriver or 10mm socket to reinstall the screws or bolts.
• Use a torque wrench inch-pound if the panel uses bolts.
• Torque to 4-6 Nm (35-53 in-lbs)
• Do not overtighten. The panel fasteners are small.

---

✅ After Repair

• ✅ Lock and unlock the tailgate at least 5 times to confirm smooth operation.
• ✅ Open and close the tailgate several times to confirm the latch is not binding.
• ✅ Check that the tailgate handle returns normally after each pull.
• ✅ If the actuator is part of an aftermarket kit, secure any loose wiring away from latch rods using existing clips or proper wire ties.

---

💰 DIY vs Shop Cost

Shop Cost: $180-$350 (parts + labor)

DIY Cost: $35-$120 (parts only)

You Save: $145-$230 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 0.5-1.0 hour.

---
