🔧 Corolla - Starter Motor Replacement

You’ll remove the battery and air intake parts to reach the starter, then disconnect its wiring and unbolt it from the transmission housing. This restores proper engine cranking when the starter has failed.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🔹Always disconnect the battery negative terminal before working on the starter; it has direct battery power and can spark or short.
• 🔹Support the car with jack stands if you raise it; never rely only on a floor jack.
• 🔹Let the engine cool completely; you’ll be working near the exhaust and engine block.
• 🔹Keep metal tools away from the battery positive terminal and starter terminals to avoid short circuits.
• 🔹Wear safety glasses and gloves; you’ll work both from above and below the engine bay.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔹10mm socket
• 🔹12mm socket
• 🔹14mm socket
• 🔹3/8" drive ratchet
• 🔹3/8" drive extension (6")
• 🔹Torque wrench 5–80 ft-lbs range
• 🔹10mm combination wrench
• 🔹12mm combination wrench
• 🔹Flathead screwdriver (medium)
• 🔹Trim clip removal tool
• 🔹Floor jack (rated 3-ton minimum)
• 🔹Jack stands (rated 3-ton minimum, Qty: 2)
• 🔹Wheel chocks
• 🔹Work light or flashlight
• 🔹Mechanic’s gloves
• 🔹Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔹Starter motor assembly (for 2.0L engine, automatic) - Qty: 1
• 🔹Starter motor mounting bolts - Qty: 2 recommended new
• 🔹Battery terminal cleaning brush - Qty: 1
• 🔹Dielectric grease - Qty: 1
• 🔹Plastic push clips for intake/engine cover - Qty: 4–6 if any break
• 🔹Shop towels - Qty: 1 pack

---

📋 Before You Begin

• 🔹Park the Corolla on level ground, shift to P, and set the parking brake.
• 🔹Chock the rear wheels so the car cannot roll.
• 🔹Turn off all electrical loads (lights, AC, radio) and remove the key or key fob from the car.
• 🔹Disconnect the battery negative terminal first and keep it isolated from the post.
• 🔹If you need extra space, plan to raise the front and support it securely on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• 🔹Open the hood and locate the battery on the left side of the engine bay.
• 🔹Use a 10mm socket to loosen the nut on the negative (black, “-”) battery terminal clamp.
• 🔹Lift the clamp off the terminal and tuck it aside so it cannot touch the battery post.
• 🔹Optionally, loosen the positive terminal with the 10mm socket and remove it as well for more safety.
• 🔹If you remove the battery, use a 10mm socket to loosen the battery hold-down bracket and lift the battery out carefully. Battery is heavy; lift with two hands

Step 2: Remove engine cover and air intake ducting

• 🔹Pull up gently on the plastic engine cover to release its rubber grommets and remove it; no tools needed.
• 🔹Locate the air intake hose from the air filter box to the throttle body (front of engine).
• 🔹Use a 10mm socket or flathead screwdriver to loosen the hose clamp at the throttle body.
• 🔹Loosen the hose clamp at the air filter box with the same 10mm socket or flathead screwdriver.
• 🔹Disconnect any small hoses or electrical connectors on the intake tube by pressing their tabs and gently pulling.
• 🔹Lift the intake tube out and set it aside; this opens access to the top of the transmission and starter.

Step 3: Raise and support the vehicle (if more access needed)

• 🔹Place the floor jack under the front center jacking point (behind the front bumper, on the subframe) and raise the front of the Corolla.
• 🔹Position jack stands under the left and right front pinch welds and lower the car gently onto them.
• 🔹Ensure the car is stable before going underneath. Shake car slightly to confirm stability
• 🔹Leave the floor jack slightly touching the subframe as backup support.

Step 4: Locate the starter motor

• 🔹The starter is mounted to the front side of the transmission housing, near the area where the engine meets the transmission.
• 🔹From above, look down between the engine and radiator area near the bellhousing; from below, look up at the same area.
• 🔹You will see a cylindrical motor with a small solenoid attached and two electrical connections: a big cable and a smaller plug.

Step 5: Disconnect the starter electrical connections

• 🔹First, find the small electrical connector (solenoid connector) on the starter.
• 🔹Press the locking tab with your finger or a flathead screwdriver and gently pull the connector straight off.
• 🔹Next, locate the large battery cable attached with a nut on a stud.
• 🔹Use a 12mm socket or 12mm combination wrench to remove the nut securing the large cable.
• 🔹Pull the cable eyelet off the stud and tuck it aside.
• 🔹Do not let this cable touch metal parts in case the battery is still connected.

Step 6: Remove the starter mounting bolts

• 🔹Identify the two main mounting bolts that hold the starter to the transmission housing—one upper and one lower.
• 🔹Use a 14mm socket with a 3/8" ratchet and 6" extension (if needed) to loosen the upper bolt from above.
• 🔹Loosen and remove the lower bolt from below the car using the same 14mm socket and ratchet.
• 🔹Support the starter with one hand as you remove the last bolt so it doesn’t fall.
• 🔹Once both bolts are out, pull the starter straight away from the transmission; you may need to wiggle it slightly.

Step 7: Compare old and new starter

• 🔹Place the old and new starters side by side on a clean surface.
• 🔹Check that the mounting holes, electrical connector locations, and gear shape/length match exactly.
• 🔹If anything looks different, stop and verify the part before installing.

Step 8: Install the new starter motor

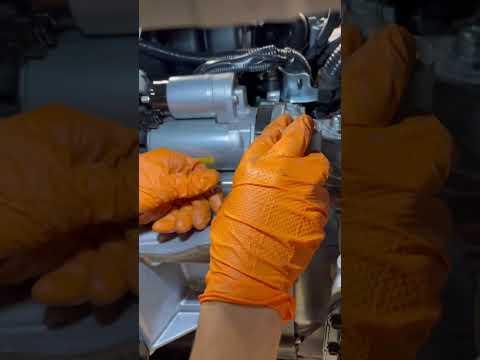

• 🔹Position the new starter into the opening on the transmission housing, lining up the gear with the flywheel opening.
• 🔹Install the upper mounting bolt by hand to start the threads, then the lower bolt by hand; this prevents cross-threading.
• 🔹Use the 14mm socket and ratchet to snug both bolts.
• 🔹Use a torque wrench with the 14mm socket to tighten each bolt to 37 Nm (27 ft-lbs).

Step 9: Reconnect starter wiring

• 🔹Slide the large cable eyelet onto the starter’s main stud.
• 🔹Install the nut by hand, then tighten it with a 12mm socket or 12mm wrench.
• 🔹Torque the nut to 9 Nm (80 in-lbs) using a torque wrench and 12mm socket.
• 🔹Apply a thin smear of dielectric grease over the exposed connection if available.
• 🔹Push the small electrical connector onto the solenoid until it clicks into place.

Step 10: Reinstall intake ducting and engine cover

• 🔹Reinstall the air intake tube between the throttle body and air filter box.
• 🔹Slide the hose fully onto the throttle body and air box, then tighten both clamps with a 10mm socket or flathead screwdriver.
• 🔹Reconnect any small hoses or electrical connectors you removed, pushing them until they click.
• 🔹Place the engine cover back on and press down firmly at each corner to seat it on the rubber grommets.

Step 11: Lower the vehicle

• 🔹If the Corolla is on jack stands, use the floor jack to lift it slightly off the stands.
• 🔹Remove the jack stands and then slowly lower the car back to the ground.
• 🔹Remove the wheel chocks.

Step 12: Reconnect the battery

• 🔹If you removed the battery, place it back into the tray and secure the hold-down bracket with a 10mm socket. Torque to 5 Nm (44 in-lbs).
• 🔹Clean the battery posts with a battery terminal cleaning brush if corroded.
• 🔹Install the positive (red, “+”) terminal first and tighten the clamp nut with a 10mm socket. Torque to 5 Nm (44 in-lbs).
• 🔹Install the negative (black, “-”) terminal and tighten with the 10mm socket. Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• 🔹Sit in the driver’s seat and turn the ignition to ON for a few seconds; listen for any unusual clicks or buzzing.
• 🔹Start the engine and confirm it cranks quickly and smoothly without grinding noises.
• 🔹Check around the starter area (from above) to ensure no tools are left behind and no wires are loose.
• 🔹You may need to reset the clock and radio presets after battery disconnection.
• 🔹If the engine does not crank or you hear only a click, recheck the battery connections and the starter electrical plugs and nuts.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$800 (parts + labor)

DIY Cost: $180–$320 (parts only)

You Save: $370–$480 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
