🔧 Rogue - Starter Motor Replacement

You’ll be removing the old starter motor from the side of the engine where it bolts to the transmission, then installing a new one and reconnecting the wiring. On your Rogue, access is mainly from above after removing the battery and air intake box, with a check from below if needed.

Difficulty Level: Intermediate | Estimated Time: 2.5–4 hours

---

⚠️ Safety & Precautions

• ⚠️ The starter cable goes directly to the battery and can spark badly if the battery is not disconnected.
• ⚠️ Always disconnect the negative battery terminal first and reconnect it last to avoid short circuits.
• ⚠️ Support the hood fully and keep loose clothing, jewelry, and hair away from moving parts.
• ⚠️ If you raise the vehicle, always use jack stands; never rely only on a floor jack.
• ⚠️ Allow the engine and exhaust to cool completely before working to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Ratchet wrench 3/8"
• Extension 3/8" drive (3"–6")
• 10mm socket
• 12mm socket
• 13mm socket
• 14mm socket
• 8mm socket
• Torque wrench 3/8" drive (5–75 ft-lbs range)
• Flathead screwdriver medium
• Phillips screwdriver medium
• Plastic trim clip removal tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Work light or flashlight
• Mechanic’s gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor assembly (for 2.5L AWD Rogue) - Qty: 1
• 🔩 Starter mounting bolts - Qty: 2 (recommended new, if available)
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 small tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Fender cover or protective blanket - Qty: 1
• 🔩 Replacement plastic clips for engine under cover - Qty: 4–6 (optional, in case any break)

---

📋 Before You Begin

• 📍 Park the Rogue on a flat, level surface, shift to P, and set the parking brake firmly.
• 📍 Turn ignition off and remove the key/fob from the vehicle so no one can try to start it.
• 📍 Open the hood and use the prop rod to secure it.
• 📍 If you plan to work from below, place wheel chocks behind the rear wheels, raise the front with the floor jack, and support with jack stands under the proper points.
• 📍 Make sure you have any radio/navigation security info if applicable (rare on this model but good habit) before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• 🔧 Put on your safety glasses and gloves.
• 🔧 Use the 10mm socket and ratchet to loosen the nut on the negative (-) battery terminal.
• 🔧 Wiggle the negative cable off the post and tuck it aside so it cannot spring back. Wrap in rag to avoid contact.
• 🔧 If needed for space, use the 10mm socket to loosen the positive terminal and remove it as well, but always remove negative first and reinstall it last.
• 🔧 There is no torque spec when disconnecting, but when you later tighten the battery terminals, aim for about 5–7 Nm (44–62 in-lbs)—snug but not crushing.

Step 2: Remove Air Intake Duct and Air Filter Box

• 🔧 The air box is the black plastic box with the air filter inside, next to the battery. This must come out for room.
• 🔧 Use a flathead screwdriver or Phillips screwdriver to loosen the clamp at the intake hose going into the air box.
• 🔧 Use the 10mm socket to remove the bolts holding the air box and intake snorkel to the body.
• 🔧 Gently disconnect any small hoses or clips attached to the air box (use the plastic trim tool to avoid breaking them).
• 🔧 Lift the air box straight up to release it from its rubber grommets, then remove it from the engine bay.

Step 3: (If Needed) Remove Engine Under Cover for Bottom Access

• 🔧 If you want a better view from below, slide under the front with the Rogue safely on jack stands.
• 🔧 Use the 10mm socket to remove the small bolts holding the plastic engine under cover.
• 🔧 Use the plastic trim clip tool to pop out any plastic clips. Twist gently to avoid snapping.
• 🔧 Lower the cover and set it aside. When reinstalling later, tighten the bolts to about 7–9 Nm (62–80 in-lbs)—just snug on plastic.

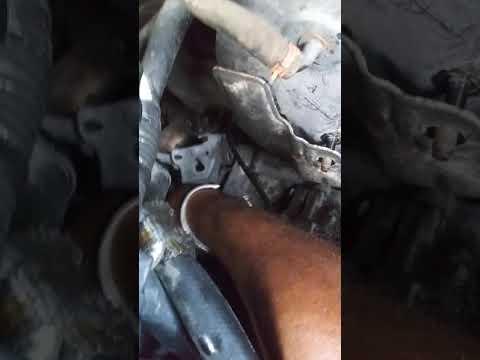

Step 4: Locate the Starter Motor

• 🔧 From above, look down between the engine and the transmission bellhousing (where engine meets gearbox) on the front side of the engine.
• 🔧 The starter is a cylindrical metal unit bolted into the transmission housing, with a thick battery cable and a smaller plug attached.
• 🔧 You may see it more clearly by shining a flashlight down from the top and also checking from below.

Step 5: Disconnect Starter Electrical Connections

• 🔧 The starter has two connections: a large cable on a stud and a smaller electrical connector.
• 🔧 Use the 13mm socket and ratchet to remove the nut holding the large battery cable to the starter terminal.
• 🔧 Pull the ring terminal off the stud and set the cable aside.
• 🔧 For the small connector, press the plastic locking tab with your thumb or a flathead screwdriver and pull the connector straight off.
• 🔧 Inspect both connectors; if corroded, you can clean them with a battery terminal brush and apply a thin layer of dielectric grease when reinstalling.

Step 6: Remove Starter Mounting Bolts

• 🔧 The starter is held by 2 main bolts that go into the transmission housing.
• 🔧 Use a 14mm socket with a 3"–6" extension and ratchet to loosen and remove the upper mounting bolt from above.
• 🔧 Support the starter with one hand as you remove the lower mounting bolt (also with the 14mm socket) so it doesn’t drop suddenly.
• 🔧 Once both bolts are out, carefully pull the starter straight out from the housing. It may need a gentle wiggle to release.
• 🔧 Factory torque for these bolts is approximately 49–59 Nm (36–44 ft-lbs) when reinstalling.

Step 7: Prepare the New Starter

• 🔧 Compare the old and new starters side by side to confirm the mounting holes and electrical connections match.
• 🔧 Lightly coat the new starter’s mounting flange (the flat surface that touches the transmission) with a tiny smear of anti-seize compound. Very thin film, not blobs.
• 🔧 Do not get any grease or anti-seize on the pinion gear (the small gear on the starter).

Step 8: Install the New Starter

• 🔧 Slide the new starter into the opening in the transmission housing, lining up the pinion gear with the flywheel opening.
• 🔧 Hand-thread the upper mounting bolt first to avoid cross-threading. Use only your fingers at this point.
• 🔧 Hand-thread the lower mounting bolt next.
• 🔧 Once both bolts are started by hand, use the 14mm socket, extension, and ratchet to snug them evenly.
• 🔧 Use the torque wrench with the 14mm socket to tighten both bolts to 49–59 Nm (36–44 ft-lbs).

Step 9: Reconnect Starter Electrical Connections

• 🔧 Slide the large battery cable ring terminal back onto the starter stud.
• 🔧 Thread the nut on by hand, then tighten it with the 13mm socket and ratchet until snug. Do not overtighten; aim for about 8–12 Nm (71–106 in-lbs).
• 🔧 Plug the small electrical connector back into the starter until it clicks. Gently tug to confirm it’s locked.
• 🔧 If you are using dielectric grease, a very small amount on the connector seal is enough.

Step 10: Reinstall Air Box and Intake Duct

• 🔧 Lower the air box back into place, aligning its pegs with the rubber grommets.
• 🔧 Press down firmly until it seats fully.
• 🔧 Reconnect any hoses or clips to the air box using your fingers or needle-nose pliers as needed.
• 🔧 Use the 10mm socket to reinstall and snug the air box mounting bolts to about 7–9 Nm (62–80 in-lbs).
• 🔧 Slide the intake hose onto the air box outlet and tighten the clamp with the flathead screwdriver or Phillips screwdriver until secure.

Step 11: Reinstall Engine Under Cover (If Removed)

• 🔧 Lift the plastic under cover into position under the front of the Rogue.
• 🔧 Start all the bolts by hand to avoid cross-threading, then tighten them with the 10mm socket to about 7–9 Nm (62–80 in-lbs).
• 🔧 Reinstall any plastic clips by pushing them back into their holes until they click.
• 🔧 Remove the jack stands and carefully lower the vehicle using the floor jack. Remove wheel chocks.

Step 12: Reconnect the Battery

• 🔧 Make sure all tools are out of the engine bay.
• 🔧 Reconnect the positive (+) battery terminal first if you removed it. Use the 10mm socket to tighten to about 5–7 Nm (44–62 in-lbs)—snug only.
• 🔧 Reconnect the negative (-) battery terminal last and tighten with the 10mm socket to the same torque.
• 🔧 Apply a thin coat of dielectric grease to the terminals if desired to help prevent corrosion.

---

✅ After Repair

• ✅ Sit in the driver’s seat and turn the ignition to ON without starting. Confirm dash lights and electronics work normally.
• ✅ Start the engine and listen closely. It should crank smoothly without grinding, clicking, or slow cranking.
• ✅ If you hear grinding or the engine does not crank, shut it off immediately and re-check starter connections and mounting bolts.
• ✅ Check under the vehicle and around the starter area for any loose wires or parts you may have missed.
• ✅ You may notice the radio or clock settings reset after battery disconnection; re-enter your presets as needed.

---

💰 DIY vs Shop Cost

Shop Cost: $650–$900 (parts + labor)

DIY Cost: $220–$350 (parts only)

You Save: $430–$550 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop about 2–3 hours.

---
