🔧 CX-30 - Starter Motor Replacement

Your CX-30’s starter motor turns the engine over when you press the Start button. Replacing it involves disconnecting the battery, removing a few intake/battery area parts for access, unplugging the starter wiring, then unbolting and swapping the starter.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔌 Disconnect the 12V battery negative terminal first to prevent shorts.
• 🔥 Work on a cool engine; the starter sits near hot components.
• 🧤 Support the battery securely; it’s heavy and can tip.
• 🛑 Never allow your tool to bridge the starter power terminal to ground.
• 🔧 If you raise the vehicle, use jack stands; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set (3", 6", 10")
• 3/8" drive universal joint
• Torque wrench (10–100 Nm range)
• Flat trim removal tool
• Phillips screwdriver
• Pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your CX-30 on level ground and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and keep the key fob at least 15 feet away from the vehicle.
• Plan for memory resets: clock and one-touch windows may need re-initialization after battery disconnect.
• Torque wrench note: A torque wrench tightens bolts to an exact setting so you don’t strip threads or loosen parts.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp (the “-” terminal) and remove it.
• Move the cable aside so it cannot spring back onto the battery post. Wrap with a glove if needed.

Step 2: Remove the air intake ducting (for access)

• Use a Phillips screwdriver and pliers to loosen hose clamps and release any clips holding the intake duct.
• Use a flat trim removal tool to gently pop plastic retainers if equipped.
• Set the intake duct aside where it won’t get stepped on.

Step 3: Remove the battery and battery tray (if it blocks access)

• Use a 10mm socket and 12mm socket to remove the battery hold-down hardware.
• Lift the battery straight up and out.
• Use a 10mm socket and/or 12mm socket to remove the battery tray bolts, then remove the tray.

Step 4: Raise the front (only if you need more room)

• Place wheel chocks behind the rear tires.
• Lift using a floor jack (rated 3-ton minimum) at the front center jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) at the approved support points.

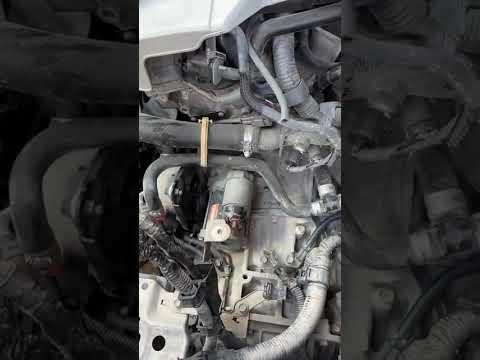

Step 5: Locate the starter and label connections

• Use a flashlight to locate the starter on the transmission bellhousing.
• Before unplugging anything, note the routing of the wiring so it goes back the same way.

Step 6: Remove the starter electrical connections

• Remove the protective cap from the large starter power stud (if equipped).
• Use a 12mm socket to remove the nut on the main power cable and pull the cable off the stud.
• Unplug the small starter solenoid connector by hand; use a flat trim removal tool gently if the lock tab is stubborn.
• Apply a thin film of dielectric grease to the small connector seal during reassembly. Not on the metal contacts.

Step 7: Remove the starter mounting bolts

• Use a 14mm socket, 3/8" drive ratchet, and extension set (3", 6", 10") to remove the starter mounting bolts.
• If access is angled, add a 3/8" drive universal joint to the extension.
• Support the starter with one hand as the last bolt comes out so it doesn’t drop.

Step 8: Remove the starter motor

• Work the starter out carefully; rotate it as needed to clear nearby hoses and wiring.
• Compare the old and new starter side-by-side to confirm mounting ears and electrical studs match.

Step 9: Install the new starter

• Position the starter into place by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten with a 14mm socket and then finish with a torque wrench (10–100 Nm range).
• Torque to Mazda specification for starter mounting bolts (refer to the CX-30 service information for your exact spec).

Step 10: Reconnect the starter wiring

• Install the main power cable onto the starter stud and tighten the nut using a 12mm socket, then finish with a torque wrench (10–100 Nm range).
• Torque to Mazda specification for the starter B+ terminal nut (refer to CX-30 service information for your exact spec).
• Reconnect the small solenoid connector until it clicks.
• Reinstall the protective cap over the main power stud (if equipped).

Step 11: Reinstall battery tray, battery, and intake ducting

• Reinstall the battery tray and tighten bolts using a 10mm socket and/or 12mm socket.
• Set the battery back in place and reinstall the hold-down using a 10mm socket and 12mm socket.
• Reinstall the intake ducting and tighten clamps using a Phillips screwdriver and pliers.

Step 12: Reconnect the battery and lower the vehicle

• Reconnect the negative terminal and tighten using a 10mm socket.
• If raised, lift slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower slowly.

---

✅ After Repair

• Start your CX-30 and confirm it cranks strongly with no clicking or slow crank.
• Listen for abnormal grinding; if present, shut off and recheck starter seating and bolts.
• Check that no warning lights appear related to low voltage.
• Reset the clock if needed.
• Re-initialize one-touch windows: raise each window fully and hold the switch up for 2–3 seconds.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
