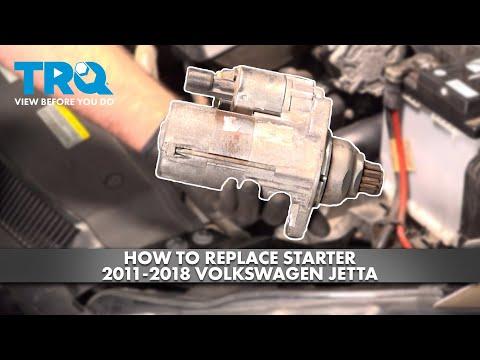

🔧 Jetta - Starter Motor Replacement

The starter motor cranks your engine when you turn the key/push the button. On your Jetta, it’s mounted to the transmission bellhousing and connected to the battery with a heavy power cable plus a small trigger wire.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching starter wiring (the main cable is always “hot”).
• ⚠️ Support the car on jack stands before working underneath; never rely on a jack alone.
• ⚠️ Let the engine/exhaust cool first—working near the turbo/downpipe can burn you.
• ⚠️ Keep keys away from the car while working (prevents accidental cranking).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 3/8" drive ratchet
• 1/2" drive ratchet
• 3/8" drive torque wrench (10-80 Nm range)
• 1/2" drive torque wrench (40-200 Nm range)
• Socket set: 10mm, 13mm, 16mm
• Deep socket: 13mm
• Torx bit socket set: T25, T30
• M12 triple-square bit socket
• Extensions: 3", 6", 12"
• Universal joint adapter
• Trim clip removal tool
• Flat-blade screwdriver
• Pick tool
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter mounting bolt set - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have your radio presets/security info if needed.
• Plan to disconnect the battery negative terminal first, then the positive if you remove the battery.
• Take a quick photo of wiring before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen and remove the battery negative (-) terminal and isolate it so it can’t spring back.
• If you’ll remove the battery for access, use a 10mm socket to remove the positive (+) terminal next.

Step 2: Remove the engine cover and intake ducting

• Pull up on the engine cover to release it (it’s held by rubber grommets).
• Loosen hose clamps (if equipped) with a flat-blade screwdriver and remove the intake snorkel/ducting for working room.

Step 3: Remove the battery and battery tray (recommended for access)

• Remove the battery hold-down using a 13mm socket.
• Lift the battery straight up and out. Batteries are heavy—lift with legs.
• Remove the battery tray fasteners using a 10mm socket and Torx T30 bit socket (fasteners vary by build).

Step 4: Raise the front of the car and remove the lower engine cover

• Lift the front with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the belly pan/lower cover screws using a Torx T25 bit socket (some positions may be Torx T30 bit socket).

Step 5: Locate the starter and unplug wiring

• The starter sits at the transmission bellhousing, near where the engine meets the transmission.
• Unplug the small starter trigger connector using a pick tool to gently release the lock tab.
• Remove the nut for the main battery cable using a 13mm deep socket, then lift the cable off the stud.
• Apply a thin wipe of dielectric grease to the connector seal (not the stud threads).

Step 6: Remove the starter mounting bolts

• Support the starter with your hand while removing bolts.
• Remove the starter bolts using a 16mm socket. If your bolts are triple-square instead, use an M12 triple-square bit socket.
• “Triple-square” is a 12-point VW bolt drive.

Step 7: Remove the starter motor

• Wiggle and pull the starter out of the bellhousing. You may need a small rotation to clear nearby hoses.
• Compare the old and new starter: same nose length, same electrical studs/connectors.

Step 8: Install the new starter

• Set the new starter into position by hand and start the mounting bolts by hand to avoid cross-threading.
• Tighten starter mounting bolts with a torque wrench: Torque to 60 Nm (44 ft-lbs).

Step 9: Reconnect starter wiring

• Install the main battery cable and nut using a 13mm deep socket: Torque to 15 Nm (11 ft-lbs).
• Reconnect the small trigger connector until it clicks.

Step 10: Reinstall belly pan, battery tray, and battery

• Reinstall the lower engine cover using a Torx T25 bit socket (and Torx T30 bit socket where applicable).
• Reinstall the battery tray fasteners using a 10mm socket and Torx T30 bit socket: Torque to 10 Nm (7 ft-lbs).
• Set the battery in place and install the hold-down with a 13mm socket: Torque to 20 Nm (15 ft-lbs).
• Reconnect battery terminals: positive first, then negative, using a 10mm socket: Torque to 6 Nm (53 in-lbs).

Step 11: Reinstall intake pieces and engine cover

• Reinstall intake ducting and tighten clamps with a flat-blade screwdriver.
• Press the engine cover back onto its grommets.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking/grinding noises.
• Check that no warning lights appear due to loose battery connections.
• Look under the hood for any tools left behind and confirm wiring is routed away from hot/moving parts.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
