🔧 Escape - Starter Motor Replacement

You’ll be removing the starter from the front of the engine on your Escape and installing a new one, then reconnecting the wiring. This restores proper cranking when the engine will not turn over or the starter is weak.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery cable before working on the starter. This prevents accidental short circuits and sparks.
• ⚠️ Support the vehicle securely on jack stands if you raise it. Never work under a car supported only by a jack.
• ⚠️ The starter has a large battery cable that is always “live” with the battery connected. Treat it like an exposed positive terminal.
• ⚠️ Let the engine and exhaust cool completely before working underneath to avoid burns.
• ⚠️ Keep the key out of the ignition and the push-button start system off while you work.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum) - Qty: 2
• 🛠️ Wheel chocks
• 🛠️ Ratchet 3/8"
• 🛠️ Ratchet 1/4"
• 🛠️ Socket set metric (8mm-19mm)
• 🛠️ 8mm socket
• 🛠️ 10mm socket
• 🛠️ 13mm socket
• 🛠️ 15mm socket
• 🛠️ 6" extension 3/8"
• 🛠️ Universal joint adapter 3/8"
• 🛠️ Torque wrench 3/8" drive (5-80 ft-lbs range)
• 🛠️ Torque wrench 1/4" drive (30-200 in-lbs range)
• 🛠️ Flathead screwdriver medium
• 🛠️ Trim clip removal tool
• 🛠️ Needle nose pliers
• 🛠️ Work light or headlamp
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses
• 🛠️ OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor assembly (2.0L EcoBoost, AWD) - Qty: 1
• 🔩 Starter mounting bolts (if one-time-use, Ford style) - Qty: 2-3
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease - Qty: 1 tube
• 🔩 Anti-seize compound - Qty: 1 small tube
• 🔩 Replacement plastic clips for splash shield - Qty: 4-6

---

📋 Before You Begin

• Park the Escape on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels so the vehicle cannot roll.
• Open the hood and locate the battery on the left side (driver side) of the engine bay.
• Make sure you have your radio presets and any settings noted, in case they reset when the battery is disconnected.
• Disconnect the negative battery cable first using a 10mm socket and move it aside so it cannot spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and support the front of the Escape

• Use the floor jack (rated 3-ton minimum) to lift the front of the Escape at the front subframe jacking point.
• Place jack stands (rated 3-ton minimum) under the proper pinch weld or subframe support points on both sides.
• Lower the vehicle gently onto the jack stands and leave the jack in place lightly touching as a backup.
• Shake the vehicle slightly to confirm it is stable.

Step 2: Remove the lower engine splash shield

• Position your work light or headlamp under the front of the Escape.
• Use a 10mm socket with the ratchet 1/4" to remove the bolts holding the plastic splash shield.
• Use the trim clip removal tool or flathead screwdriver to gently pry out any plastic push clips.
• Lower the splash shield and set it aside where you will not step on it.

Step 3: Locate the starter motor

• The starter is mounted low on the front of the engine, near where the engine meets the transmission, on the radiator side.
• Use your work light or headlamp to follow the large positive battery cable from above, down to the starter’s large terminal.
• Take a photo of the wiring on the starter before removal.

Step 4: Disconnect starter electrical connectors

• Even though the battery is disconnected, avoid letting tools touch both the starter terminal and metal parts.
• Use a 13mm socket with the ratchet 1/4" to remove the nut from the large B+ terminal on the starter (main battery cable).
• Pull the cable eyelet off the stud and move it aside.
• Locate the small push-on connector (solenoid signal wire). Use needle nose pliers or your fingers to pull the connector straight off the small terminal.
• Do not pull on the wire, only the connector.

Step 5: Remove any brackets or supports around the starter

• Some Escapes have a small bracket or wire loom attached near the starter.
• Use a 10mm socket with ratchet 1/4" to remove any small bolts holding brackets to the starter or bellhousing.
• Push the bracket or wiring aside to give yourself clear access to the starter bolts.

Step 6: Remove the starter mounting bolts

• There are usually two main bolts securing the starter to the engine or transmission housing.
• Use a 15mm socket with the ratchet 3/8", 6" extension 3/8", and universal joint adapter 3/8" if needed to reach the bolts.
• Crack both bolts loose first, then remove the lower bolt completely.
• Support the starter with one hand while removing the upper bolt with the ratchet 3/8".
• Carefully lower the starter out of position and remove it from under the vehicle.

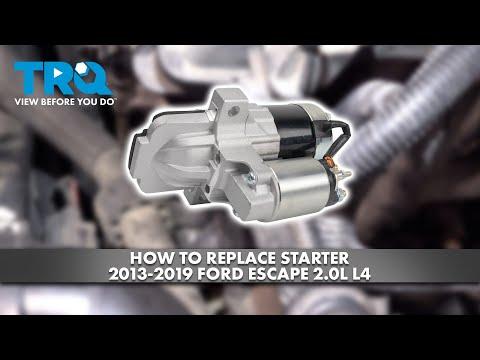

Step 7: Prepare the new starter

• Compare the old and new starter side by side to confirm the mounting holes and electrical terminals match.
• Apply a thin film of anti-seize compound to the shank (smooth part) of the new starter mounting bolts if recommended by the manufacturer.
• Ensure the mating surfaces on the engine/transmission where the starter sits are clean and free of corrosion or debris.
• Do not get anti-seize on the starter gear.

Step 8: Install the new starter motor

• Lift the new starter into place from below, aligning the nose of the starter into the opening in the transmission housing.
• Hand-thread the upper starter bolt using the 15mm socket and ratchet 3/8" only by hand at first to avoid cross-threading.
• Hand-thread the lower starter bolt the same way until snug.
• Use the ratchet 3/8" and 15mm socket to tighten both bolts evenly.
• Then torque both starter mounting bolts to 47 Nm (35 ft-lbs) using the torque wrench 3/8" drive (5-80 ft-lbs range).

Step 9: Reconnect starter electrical connections

• Push the small solenoid connector back onto the small terminal until it clicks into place.
• Place the large battery cable eyelet over the large starter stud.
• Install the nut on the large stud using the 13mm socket and ratchet 1/4" by hand first.
• Torque the large B+ terminal nut to 11 Nm (97 in-lbs) using the torque wrench 1/4" drive (30-200 in-lbs range).
• Apply a small amount of dielectric grease over the exposed terminal to help protect it from corrosion.

Step 10: Reinstall any brackets and the splash shield

• Reattach any brackets or wire looms you removed using the 10mm socket and ratchet 1/4".
• Torque small bracket bolts to 10 Nm (89 in-lbs) with the torque wrench 1/4" drive (30-200 in-lbs range).
• Reinstall the lower engine splash shield, lining up all holes.
• Install bolts with the 10mm socket and any clips using the trim clip removal tool or your fingers.

Step 11: Lower the Escape and reconnect the battery

• Use the floor jack (rated 3-ton minimum) to raise the vehicle slightly and remove the jack stands.
• Lower the Escape carefully back onto the ground.
• At the battery, use the battery terminal cleaning brush to clean the inside of the negative clamp and the battery post if needed.
• Reinstall the negative battery cable on the battery post and tighten the nut with a 10mm socket until snug. Do not overtighten.

Step 12: Initial test of the new starter

• Sit in the driver seat with your foot on the brake.
• Press the start button to crank the engine and listen.
• The engine should crank strongly and start quickly, with no grinding or unusual noises from the starter area.
• If you hear grinding, shut off immediately and recheck alignment.

---

✅ After Repair

• Use your OBD2 scan tool (basic) to check for any stored codes and clear them if present.
• Verify that the engine starts several times in a row, both cold and after warming up.
• Check under the Escape for any loose wires, tools, or covers you might have left behind.
• Re-enter your radio presets and any other settings that may have reset after the battery was disconnected.
• Over the next few days, listen for any abnormal starting noises that could indicate a loose connection.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$800 (parts + labor)

DIY Cost: $220-$380 (parts only)

You Save: $330-$420 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
