🔧 Equinox - Starter Motor Replacement

You’ll be removing the old starter motor from the side of the engine where it bolts to the transmission and installing a new unit. This restores reliable starting when the starter is weak, noisy, or dead.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the battery negative cable before working; the starter has a direct high-current connection to the battery.
• ⚠️ Raise and support the front of your Equinox with a floor jack and jack stands on solid, level ground—never rely on the jack alone.
• ⚠️ Let the exhaust and engine cool completely before working underneath.
• ⚠️ Keep metal tools away from the starter’s battery terminal once the battery is disconnected to avoid accidental sparks.
• ⚠️ Wear safety glasses; dirt and rust can fall when removing the lower splash shield and starter.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🔧 Floor jack (rated 3-ton minimum)
• 🔧 Jack stands (rated 3-ton minimum, pair)
• 🔧 Wheel chocks
• 🔧 Ratchet 3/8" drive
• 🔧 Ratchet 1/2" drive
• 🔧 Metric socket set 8mm–19mm
• 🔧 Deep 13mm socket
• 🔧 Deep 15mm socket
• 🔧 Torx T20 screwdriver
• 🔧 Torx T30 bit with 3/8" drive
• 🔧 Extension 3/8" drive 6"
• 🔧 Extension 3/8" drive 10"
• 🔧 Torque wrench 3/8" drive (5–80 Nm range)
• 🔧 Torque wrench 1/2" drive (20–150 Nm range)
• 🔧 Flathead screwdriver medium
• 🔧 Trim clip removal tool
• 🔧 Needle nose pliers
• 🔧 Battery terminal brush
• 🔧 Work light or headlamp
• 🔧 Mechanic’s gloves
• 🔧 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Starter motor (1.6L diesel, correct for your Equinox) - Qty: 1
• 🔩 Starter mounting bolts (set) - Qty: 1 Recommended, stretch bolts may deform
• 🔩 Battery terminal protector spray - Qty: 1
• 🔩 Dielectric grease - Qty: 1
• 🔩 Under-engine splash shield clips - Qty: 4–6 In case originals break

---

📋 Before You Begin

• Park your Equinox on level ground, shift to Park, and set the parking brake.
• Turn ignition off and remove the key fob from the vehicle so the system cannot “wake up.”
• Open the hood using the interior hood release and the hood latch.
• Locate the battery under the hood and be ready to disconnect the negative terminal first.
• Gather all tools and parts so you are not crawling out from under the vehicle repeatedly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and locate the battery on the left side of the engine bay.
• Use a 10mm socket and 3/8" ratchet to loosen the negative (black) battery terminal clamp nut.
• Twist and lift the negative cable off the post; move it aside so it cannot spring back into contact.
• Use the battery terminal brush to clean any corrosion from the battery posts if needed.

Step 2: Raise and support the front of the vehicle

• Place wheel chocks behind the rear tires.
• Use the floor jack under the front subframe or front jacking point to lift the front of your Equinox.
• Place jack stands under the recommended pinch weld or frame points on each side and lower the vehicle onto the stands.
• Give the vehicle a firm shake to confirm it is stable before crawling under.

Step 3: Remove the lower engine splash shield

• Position your work light and slide under the front of the vehicle.
• Use a Torx T20 screwdriver or T20 bit with 3/8" ratchet to remove the small screws holding the front of the plastic splash shield.
• Use the trim clip removal tool to pop out any plastic push clips securing the shield to the subframe.
• Lower the shield and set it aside, noting where each fastener came from for reassembly.

Step 4: Locate the starter motor

• Look at the area where the engine meets the transmission on the front side of the engine (toward the radiator).
• The starter is a cylindrical motor with a smaller cylinder on top (the solenoid) and thick cables attached.
• Take a photo of wiring before removal.

Step 5: Disconnect wiring from the starter

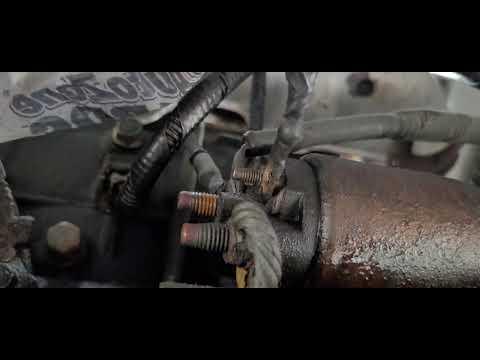

• Identify the thick battery cable attached to a stud on the starter solenoid and the smaller control wire with a plug or small nut.
• Use a 13mm deep socket and 3/8" ratchet to remove the nut holding the thick battery cable. Pull the cable off and set it aside.
• If the small wire is a push connector, press the tab with a flathead screwdriver and pull it off. If it is held with a nut, use an 8mm socket to remove it.
• Use needle nose pliers to gently move any small retaining clips or wire looms away from the starter body.

Step 6: Remove the starter mounting bolts

• Locate the two main starter mounting bolts that pass through the starter into the transmission housing (usually at the front and rear of the starter flange).
• Use a 15mm socket, 6" extension, and 1/2" ratchet to loosen the lower mounting bolt. Then fully remove it by hand.
• Use the same 15mm socket and extension to loosen and remove the upper mounting bolt.
• Support the starter with one hand as you remove the last bolt so it does not drop unexpectedly.

Step 7: Remove the old starter from the vehicle

• Once both bolts are out, pull the starter straight away from the transmission to disengage the gear.
• You may need to slightly twist or angle it around nearby pipes or wiring until it can drop down and out.
• If it feels stuck, gently wiggle by hand—do not pry hard with a screwdriver to avoid damaging the mating surfaces.

Step 8: Prepare the new starter

• Compare the new starter to the old one: check overall length, mounting holes, and electrical terminals; they should match.
• Apply a very thin film of dielectric grease to the electrical terminals to help prevent corrosion.
• Do not grease the starter gear or the surface that touches the transmission.

Step 9: Install the new starter motor

• Feed the new starter up into position in the same orientation as the old one.
• Align the starter nose with the opening in the transmission housing and slide it into place.
• Install the upper mounting bolt by hand first to avoid cross-threading, then start the lower mounting bolt by hand.
• Use a 15mm socket, extension, and 1/2" ratchet to snug both bolts.
• Use the 1/2" torque wrench and 15mm socket to tighten each starter mounting bolt to 60 Nm (44 ft-lbs).

Step 10: Reconnect starter wiring

• Push the thick battery cable eyelet onto the large starter terminal stud.
• Install the retaining nut using a 13mm deep socket and 3/8" ratchet, then torque to 15 Nm (11 ft-lbs) using the 3/8" torque wrench.
• Reconnect the small control wire: if it is a push connector, push until it clicks; if it uses a nut, use an 8mm socket and torque to 5 Nm (44 in-lbs).
• Make sure no wires are touching the exhaust or moving parts; reposition any clips with needle nose pliers.

Step 11: Reinstall the lower engine splash shield

• Lift the splash shield back into place under the engine.
• Install any plastic push clips by hand; press them in firmly.
• Use the Torx T20 screwdriver or T20 bit with 3/8" ratchet to reinstall the screws you removed earlier. Snug them gently—do not overtighten and strip the plastic.

Step 12: Lower the vehicle and reconnect the battery

• Use the floor jack to lift the front slightly off the jack stands, remove the stands, then lower the vehicle to the ground.
• At the battery, place the negative cable clamp back on the negative post.
• Use a 10mm socket and 3/8" ratchet to tighten the clamp nut until snug; do not overtighten.
• Spray a light coat of battery terminal protector spray on the terminals to help prevent corrosion.

---

✅ After Repair

• Start your Equinox. It should crank strongly and start quickly without grinding or clicking noises.
• Listen near the engine bay for any unusual sounds from the new starter area.
• Check under the vehicle to ensure no tools or parts are left behind and the splash shield is secure.
• If any warning lights appear on the dash, cycle the ignition off and on; if lights remain, use an OBD2 scanner or have a shop scan for codes.

---

💰 DIY vs Shop Cost

Shop Cost: $500–$800 (parts + labor)

DIY Cost: $150–$300 (parts only)

You Save: $350–$500 by doing it yourself!

Shop labor rates vary but typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
