🔧 Blazer - Starter Motor Replacement

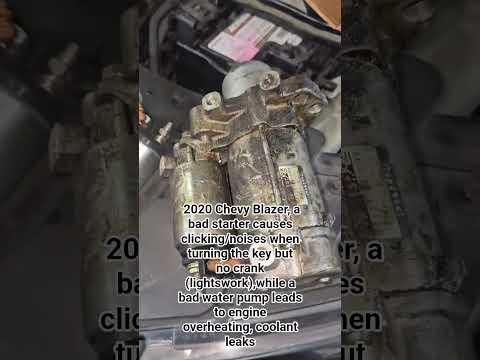

The starter motor is the electric motor that spins the engine so it can start. On your Blazer, the starter is mounted to the engine/transmission bellhousing area and is usually accessed from underneath after removing underbody shields.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching the starter wiring (the starter cable is always “hot” and can short to ground).
• 🔥 Let the exhaust cool completely before working underneath.
• 🧱 Support the Blazer with jack stands on solid, level ground; never rely on a floor jack alone.
• 🧤 Wear safety glasses and gloves; road debris will fall when shields come off.
• 🔌 Battery disconnect is required for this job.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" socket extension
• 12" socket extension
• Universal joint socket adapter
• Trim clip removal tool
• Flat-blade screwdriver
• Fender cover
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut kit - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and install a fender cover to protect paint.
• Record radio presets if you care about them (battery will be disconnected).
• Plan access: most Blazer starter replacements are easiest from underneath after removing the lower engine splash shield.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Remove the negative cable and position it so it cannot spring back onto the battery post.
• Tip: Wrap the terminal with a glove.

Step 2: Raise and support the Blazer

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack at the proper front jacking point.
• Set the Blazer onto jack stands and gently shake the vehicle to confirm stability.

Step 3: Remove the lower splash shield(s)

• Use a trim clip removal tool and flat-blade screwdriver to remove push pins/clips.
• Use a 10mm socket (common) to remove any shield bolts.
• Lower the shields and set them aside in order.

Step 4: Locate the starter and verify wiring

• Use a work light to find the starter at the engine/transmission mating area (bellhousing).
• You’ll see a large battery cable on the starter main terminal and a smaller control connector.
• Tip: Take a photo before disconnecting.

Step 5: Disconnect starter electrical connections

• Remove the starter solenoid terminal cover (if equipped) using a flat-blade screwdriver.
• Disconnect the small control connector by releasing its lock tab (use a flat-blade screwdriver carefully if needed).
• Remove the main battery cable nut using a 13mm socket (common size) and pull the cable off the stud.
• Apply a light smear of dielectric grease to the connector seal (not the stud threads).

Step 6: Remove the starter mounting bolts

• Support the starter with one hand.
• Use a 15mm socket, 3/8" ratchet, extensions, and a universal joint socket adapter as needed to remove the starter mounting bolts.
• Carefully lower and remove the starter from the bellhousing.

Step 7: Install the new starter

• Position the new starter and start both mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts with a 3/8" ratchet, then final-tighten using a 3/8" torque wrench to Torque to OEM specification.
• Tip: Hand-start bolts at least 4 turns.

Step 8: Reconnect the starter wiring

• Install the main battery cable onto the starter stud.
• Install a new terminal nut (from the kit) and tighten with a 13mm socket, then final-tighten with a torque wrench to Torque to OEM specification.
• Reconnect the small control connector until it clicks/locks.
• Reinstall the terminal cover (if equipped).

Step 9: Reinstall splash shield(s)

• Reposition shields and install bolts with a 10mm socket.
• Reinstall push pins/clips using a trim clip removal tool.

Step 10: Lower the Blazer and reconnect the battery

• Raise slightly with the floor jack, remove jack stands, then lower to the ground.
• Reconnect the negative battery cable and tighten using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking/grinding.
• With the engine running, check that no warning lights appear related to low voltage.
• Recheck under the vehicle for any loose shields or hanging wiring.
• If it still cranks slow, have the battery and charging system load-tested.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
