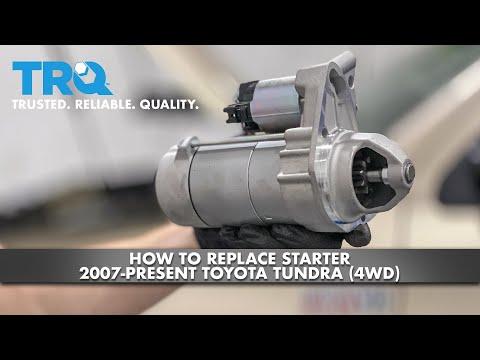

🔧 Tundra - Starter Motor Replacement

On your Tundra, the starter sits in the “V” of the V8 under the intake manifold. That means you’ll remove the intake, swap the starter, then reinstall everything with new gaskets so it seals and runs right.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short or fire.
• ⚠️ Work on a cold engine; the intake area gets extremely hot.
• ⚠️ Relieve fuel pressure before disconnecting any fuel line.
• ⚠️ Keep dirt out of the intake ports; anything dropped inside can damage the engine.
• ⚠️ No open flames or sparks; fuel vapors may be present.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 13mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extensions (3", 6", 12")
• Universal swivel adapter
• Torque wrench (10–80 ft-lbs range)
• Torque wrench (in-lb range)
• Flathead screwdriver
• Needle-nose pliers
• Trim clip removal tool
• Fuel line quick-disconnect tool set (specialty)
• Pick set
• Magnetic pickup tool
• Shop towels
• Painter’s tape and marker
• Vacuum cleaner or compressed air blow gun

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Fuel injector rail crossover/union O-rings (as applicable) - Qty: 1 set
• Dielectric grease - Qty: 1
• Brake cleaner or throttle body cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Use painter’s tape and marker to label vacuum lines and electrical connectors as you unplug them.
• Relieve fuel pressure: remove the fuel pump fuse/relay, start the engine, and let it stall; then crank 3–5 seconds. Reinstall the fuse/relay afterward.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake tube

• Pull up to remove the engine cover (it’s held by grommets).
• Loosen the intake tube clamps using a flathead screwdriver.
• Unplug the MAF connector (mass airflow sensor) and remove any hose clamps using needle-nose pliers.
• Remove the intake tube/air ducting and set it aside.

Step 2: Remove the throttle body from the intake

• Unplug the throttle body connector.
• Remove the throttle body bolts using a 10mm socket.
• Lift the throttle body off and remove the old gasket.
• Torque to 10 Nm (89 in-lbs) during reassembly.
• Cover the opening with a clean towel.

Step 3: Disconnect vacuum lines, EVAP, and electrical connectors on the intake

• Unclip wiring harness retainers using a trim clip removal tool.
• Disconnect vacuum hoses using needle-nose pliers (move the spring clamp back first).
• Unplug intake-related connectors (label each with painter’s tape).

Step 4: Disconnect the fuel line(s) at the intake area

• Place shop towels under the connection to catch any fuel.
• Release the fuel line using the fuel line quick-disconnect tool set (specialty).
• Use a pick set carefully only if needed to free a stuck retaining clip (don’t gouge plastic).
• Expect a small fuel spill.

Step 5: Remove the intake manifold

• Blow/vacuum loose dirt away from the intake area using a vacuum cleaner or compressed air blow gun.
• Remove the intake manifold bolts/nuts using a 12mm socket with extensions as needed.
• Lift the intake manifold straight up and out.
• Immediately cover the intake ports in the cylinder heads with clean shop towels.
• Torque to 21 Nm (15 ft-lbs) during reassembly (intake manifold fasteners).

Step 6: Access the starter in the engine valley

• With the intake off, locate the starter centered in the engine valley.
• Remove any brackets or harness clips in the way using a 10mm socket.

Step 7: Disconnect the starter wiring

• Remove the starter solenoid signal wire connector by hand (depress tab) or gently with a pick set.
• Remove the main battery cable nut using a 12mm socket and pull the cable off.
• Apply a small amount of dielectric grease on reassembly to help prevent corrosion.

Step 8: Remove the starter mounting bolts and remove the starter

• Remove the starter mounting bolts using a 14mm socket, extensions, and a universal swivel adapter if needed.
• Lift the starter out of the valley.
• Use a magnetic pickup for dropped bolts.
• Torque to 39 Nm (29 ft-lbs) during reassembly (starter mounting bolts).

Step 9: Install the new starter

• Set the new starter in place and hand-start the mounting bolts.
• Tighten with a 14mm socket, then final tighten with a torque wrench (10–80 ft-lbs range).
• Torque to 39 Nm (29 ft-lbs).

Step 10: Reconnect starter wiring

• Install the main battery cable and tighten the nut using a 12mm socket.
• Reconnect the small solenoid connector until it clicks.
• Make sure the cable boot is positioned to prevent accidental shorting.

Step 11: Reinstall the intake manifold with new gaskets

• Remove the old intake manifold gaskets and install the new ones onto the manifold.
• Clean the mating surfaces using shop towels and a light spray of brake cleaner or throttle body cleaner (spray on towel, not directly into ports).
• Set the intake manifold in place and start all fasteners by hand.
• Tighten using a 12mm socket evenly, then final tighten with a torque wrench (10–80 ft-lbs range).
• Torque to 21 Nm (15 ft-lbs).

Step 12: Reconnect fuel line(s), vacuum lines, and connectors

• Reconnect the fuel line until it clicks/locks; gently tug to confirm it’s secure.
• Reconnect all vacuum hoses and spring clamps using needle-nose pliers.
• Reconnect all electrical connectors and re-clip harnesses using a trim clip removal tool as needed.

Step 13: Reinstall throttle body and intake tube

• Install a new throttle body gasket, then bolt the throttle body on using a 10mm socket.
• Torque to 10 Nm (89 in-lbs).
• Reinstall the intake tube and tighten clamps using a flathead screwdriver.
• Reconnect the MAF connector.
• Reinstall the engine cover.

Step 14: Reconnect the battery and prime the fuel system

• Reconnect the negative battery terminal using a 10mm socket.
• Turn the key to ON (not start) for 5 seconds, then OFF; repeat 2–3 times to build fuel pressure.

---

✅ After Repair

• Start the engine and listen for normal cranking and smooth idle.
• Check closely for fuel smell or wetness around the fuel connection area; shut off immediately if you see a leak.
• Watch for a check engine light; if one appears, recheck every intake/vacuum connector you touched.
• Test drive 5–10 minutes, then recheck for fuel leaks again.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
