🔧 Avalon - Starter Motor Replacement

On your Avalon’s 3.5L V6, the starter is commonly mounted in the “V” of the engine (under the upper intake manifold). Replacing it usually means removing the intake manifold to reach the starter, then swapping the starter and reinstalling everything with new gaskets.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable before touching the starter wiring (the starter power cable is always “hot”).
• ⚠️ Work on a cold engine; the intake area gets very hot.
• ⚠️ Keep dirt out of the intake ports—cover openings immediately after removing the intake manifold.
• ⚠️ If you must raise the car, support it with jack stands on a solid, level surface.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 6" extension
• 12" extension
• Universal joint adapter
• Flat blade screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Magnetic pickup tool
• Shop towels
• Masking tape and marker

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Upper intake manifold gasket set - Qty: 1
• Throttle body gasket - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the engine cover (it pulls up in most cases).
• Disconnect the battery negative terminal using a 10mm socket.
• Label hoses and electrical connectors with masking tape and marker so they go back exactly where they came from.
• Take photos before disconnecting anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm starter location (quick check)

• Remove the engine cover by pulling upward by hand.
• Look down between the cylinder banks (center “V” area). If you can’t see the starter, you’ll still proceed with intake removal to access it on this V6.
• If you see a starter mounted externally on the transmission side (rare on this setup), stop here and tell me what side you see it on (front or rear of engine) so I can switch you to the correct access path.

Step 2: Remove the air intake ducting

• Loosen the hose clamps using a flat blade screwdriver.
• Remove any duct bolts/clips using a 10mm socket and trim clip removal tool.
• Lift the intake duct/air tube out and set it aside.

Step 3: Unplug and unclip what’s attached to the intake manifold

• Unplug electrical connectors by pressing the lock tab, then pulling straight off (use needle-nose pliers only if needed and gently).
• Remove vacuum/PCV hoses by compressing clamps with needle-nose pliers, then twisting the hose to free it.
• Unclip harness retainers from the manifold using a trim clip removal tool.
• Twist hoses first—don’t just yank.

Step 4: Remove the throttle body from the intake (recommended)

• Unplug the throttle body connector.
• Remove the throttle body mounting bolts using a 10mm socket.
• Remove the throttle body and set it aside without stressing the coolant lines (do not kink hoses).
• Remove and discard the old gasket; you’ll install a new one later.
• Torque to 10 Nm (89 in-lbs) for throttle body bolts during reassembly.

Step 5: Remove the upper intake manifold (plenum)

• Remove the intake manifold bolts/nuts using a 12mm socket, plus a 6" extension and 12" extension as needed.
• Lift the manifold straight up and out. Use a flat blade screwdriver gently only if it’s stuck (do not gouge surfaces).
• Immediately stuff each intake port with clean shop towels.
• Torque to 21 Nm (15 ft-lbs) for intake manifold bolts/nuts during reassembly.

Step 6: Access the starter and disconnect the wiring

• Locate the starter in the engine valley near the transmission bellhousing.
• Remove the small solenoid signal wire connector by releasing the clip by hand.
• Remove the main battery cable nut using a 12mm socket, then lift the cable off.
• Move the wiring safely aside so it can’t get pinched.
• Torque to 9 Nm (80 in-lbs) for the main starter terminal nut during reassembly.

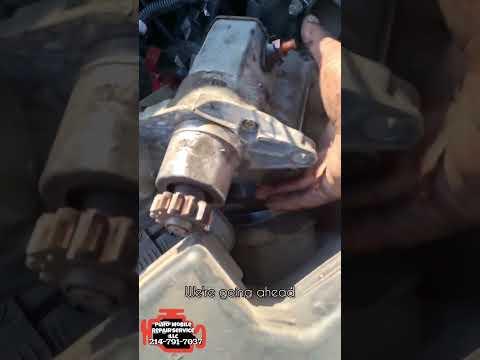

Step 7: Remove the starter motor

• Remove the starter mounting bolts using a 14mm socket with a 12" extension and universal joint adapter if needed.
• Support the starter with one hand as the last bolt comes out.
• Lift the starter out carefully (use a magnetic pickup tool if a bolt tries to fall into the valley).
• Torque to 39 Nm (29 ft-lbs) for starter mounting bolts during reassembly.

Step 8: Install the new starter

• Set the new starter into place and hand-start both mounting bolts.
• Tighten with a 14mm socket, then torque to 39 Nm (29 ft-lbs) using a 3/8" drive torque wrench.
• Reconnect the main battery cable and tighten with a 12mm socket, then torque to 9 Nm (80 in-lbs).
• Reconnect the solenoid signal wire until it clicks.
• Apply a light film of dielectric grease to connector seals only (not on metal contact surfaces).

Step 9: Reinstall the intake manifold and throttle body

• Remove the shop towels from the intake ports (double-check all ports).
• Install new intake manifold gaskets in the manifold grooves.
• Set the manifold in place and start all bolts/nuts by hand.
• Tighten with a 12mm socket, then torque to 21 Nm (15 ft-lbs).
• Install a new throttle body gasket, reinstall the throttle body with a 10mm socket, then torque to 10 Nm (89 in-lbs).
• Reconnect all hoses, electrical connectors, and harness clips (match your labels).

Step 10: Reinstall the air intake ducting and reconnect the battery

• Reinstall the intake duct and tighten clamps using a flat blade screwdriver.
• Reconnect the battery negative terminal using a 10mm socket.
• Reinstall the engine cover by pressing it down into place.

---

✅ After Repair

• Turn the key/press Start to ON (engine off) for 10 seconds, then start the engine.
• Expect a slightly longer first crank as the throttle/idle relearns.
• Check for air leaks (hissing), rough idle, or a check engine light—these usually mean a hose or connector is not fully seated.
• Do a short test drive, then recheck that everything is secure and there are no warning lights.

---

💰 DIY vs Shop Cost

Shop Cost: $700-$1,200 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $480-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
