🔧 Legacy - Starter Motor Replacement

Your starter motor is what cranks the engine when you turn the key. If it’s failing, you may hear a single click, slow cranking, or nothing at all. Replacing it involves disconnecting the battery, removing a few intake/battery components for access, then swapping the starter.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short circuit.
• ⚠️ Keep metal tools away from the starter’s main power stud (it’s direct battery power).
• ⚠️ Let the engine cool before working near the exhaust and engine bay.
• ⚠️ If you lift the car for access, support it with jack stands—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench
• 6" extension (3/8")
• Phillips screwdriver
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Fender cover
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor - Qty: 1
• Starter electrical terminal nut(s) (if included/needed) - Qty: 1
• Battery terminal anti-corrosion spray (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and install a fender cover to protect paint.
• Have your 3/8" torque wrench ready (it measures tightening force so bolts aren’t too loose or over-tightened).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative battery terminal clamp (the “-” terminal) and remove it.
• Tuck the cable end to the side so it can’t spring back to the battery post.
• Negative off first, on last.

Step 2: Remove the battery (for access)

• Use a 10mm socket and 3/8" ratchet to remove the battery hold-down hardware.
• Lift the battery straight up and out (it’s heavy—keep your back straight).

Step 3: Remove the air intake duct and air box (for access)

• Use a Phillips screwdriver or flathead screwdriver to loosen the hose clamp(s) on the intake duct.
• Use a trim clip removal tool to pop any plastic clips holding the snorkel/ducting.
• Remove the air cleaner housing/ducting as needed to create clear access to the starter area.

Step 4: Locate the starter and label connections

• The starter sits where the engine meets the transmission (bellhousing area), with a thick power cable and a smaller signal connector.
• If helpful, take a quick photo of the wiring routing before you remove anything.

Step 5: Disconnect the starter wiring

• Remove the protective rubber boot from the starter’s main power stud.
• Use a 12mm socket and 3/8" ratchet to remove the nut from the main power cable and lift the cable off the stud.
• Disconnect the small starter signal connector using needle-nose pliers only if needed (pull on the connector body, not the wires).
• Torque to 13 Nm (10 ft-lbs) when reinstalling the main power cable nut.

Step 6: Remove the starter mounting bolts

• Use a 14mm socket, 6" extension (3/8"), and 3/8" ratchet to remove the two starter mounting bolts.
• Support the starter with your free hand as the last bolt comes out, then pull the starter out.

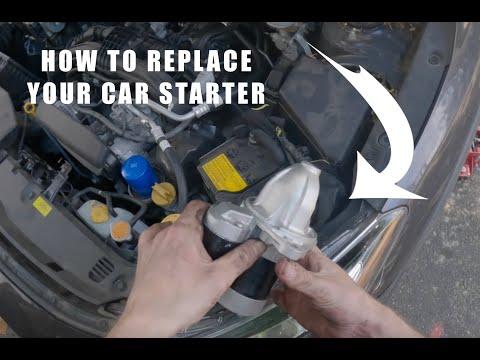

Step 7: Install the new starter

• Set the new starter into place, making sure it sits flush against the mounting surface.
• Start both mounting bolts by hand to prevent cross-threading.
• Use a 14mm socket, 6" extension (3/8"), and 3/8" torque wrench to tighten the starter mounting bolts: Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect the starter wiring

• Install the small signal connector until it clicks into place (or fully seats).
• Reinstall the main power cable on the stud and tighten with a 12mm socket and 3/8" torque wrench: Torque to 13 Nm (10 ft-lbs).
• Reinstall the rubber boot over the power stud.
• Loose power nut = no-crank or heat damage.

Step 9: Reinstall the air box/intake and battery

• Reinstall the intake duct/air box and tighten clamps using a Phillips screwdriver or flathead screwdriver.
• Reinstall the battery hold-down using a 10mm socket and 3/8" ratchet.
• Reconnect the negative battery terminal using a 10mm socket and 3/8" ratchet (snug—don’t crush the clamp).

---

✅ After Repair

• Turn the key to start: the engine should crank strongly and start normally.
• Verify the battery light on the dash turns off after starting.
• Listen for abnormal grinding or whining during cranking (can indicate misalignment or loose mounting bolts).
• Recheck that the intake duct clamps are tight (loose intake can cause rough idle).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-1.8 hours.

---
