🔧 3500 - Starter Motor Replacement

The starter motor is the electric motor that cranks your engine when you turn the key. On your 3500, replacement involves disconnecting the battery, accessing the starter from underneath, swapping the electrical connections, and bolting in the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the starter wiring (the main cable is always “hot”).
• ⚠️ Support the truck with jack stands on the frame—never rely on a floor jack alone.
• ⚠️ Let the exhaust cool fully; the starter sits near hot components.
• ⚠️ Keep keys out of the ignition so nobody can crank it.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 6" extension
• 12" extension
• Torque wrench (10–100 ft-lbs range)
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Starter motor assembly - Qty: 1
• Battery terminal anti-corrosion grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and disconnect the negative battery terminal using a 10mm socket.
• Tip: tuck the cable aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the truck

• Lift the front with a floor jack (rated 3-ton minimum) at the approved front lift point.
• Set the truck down onto jack stands (rated 3-ton minimum) placed under the frame rails.
• Give the truck a firm shake to confirm it’s stable before going underneath.

Step 2: Locate the starter

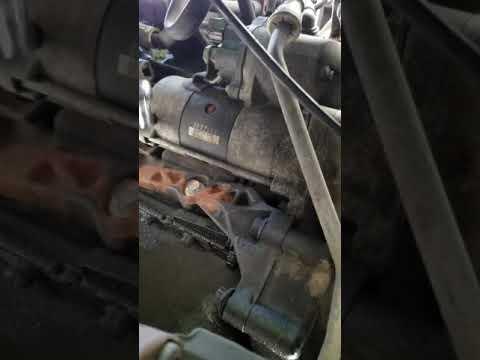

• From underneath, use a work light to find the starter where the engine meets the transmission (bellhousing area).
• If there’s a plastic splash shield blocking access, remove its fasteners using a flathead screwdriver and/or 10mm socket (fasteners vary by shield style).

Step 3: Disconnect the starter wiring

• Remove the protective rubber boot from the large starter terminal by hand.
• Remove the large battery cable nut using a 13mm socket, then pull the cable off the stud.
• Disconnect the small trigger wire:
  • If it’s a push-on connector, pull it straight off by hand (wiggle gently—don’t yank the wire).
  • If it’s a small nut on a stud, remove it with a 10mm socket.

Step 4: Remove the starter mounting bolts

• Support the starter with one hand.
• Remove the starter mounting bolts using a 15mm socket with a 6" extension on a 3/8" drive ratchet.
• Lower the starter out carefully—it's heavier than it looks.

Step 5: Install the new starter

• Position the new starter into place by hand.
• Start both mounting bolts by hand first (this prevents cross-threading).
• Tighten the mounting bolts using a 15mm socket, then final-tighten with a torque wrench: Torque to 54 Nm (40 ft-lbs).

Step 6: Reconnect the starter wiring

• Install the small trigger wire:
  • Push-on style: push on until fully seated.
  • Nut-on-stud style: tighten with a 10mm socket to Torque to 6 Nm (53 in-lbs).
• Install the large battery cable on the main stud and tighten with a 13mm socket to Torque to 13.5 Nm (120 in-lbs).
• Reinstall the rubber boot fully over the main terminal.

Step 7: Reinstall any shields and lower the truck

• Reinstall the splash shield using a 10mm socket and/or flathead screwdriver (match what you removed).
• Raise slightly with the floor jack (rated 3-ton minimum), remove the jack stands (rated 3-ton minimum), then lower the truck to the ground.

Step 8: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Apply a light coating of battery terminal anti-corrosion grease.

---

✅ After Repair

• Start the engine and confirm it cranks strongly with no clicking or grinding noises.
• With the engine running, check underneath for any loose wiring near the starter.
• If you hear a high-pitched whine after startup, shut it off and recheck starter mounting and wiring.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
